4ft 3/4" (E-75) Baseboard Element Replacement for Fine/Line 30 or Base/Line 2000 Slant-Fin
4ft 3/4" (E-75) Baseboard Element Replacement for Fine/Line 30 or Base/Line 2000 Slant-Fin
4ft 3/4" (E-75) Baseboard Element Replacement for Fine/Line 30 or Base/Line 2000 Slant-Fin
4ft 3/4" (E-75) Baseboard Element Replacement for Fine/Line 30 or Base/Line 2000
Brand: Slant-Fin
Part#: 101-002-040
made in usa
In Stock
Ship Pickup
Estimate delivery
Usually ships: within 1 business day
$52.95 / each
$290.70 box of 6 + Free Shipping
($48.45 each)
Orders over $99 ship free

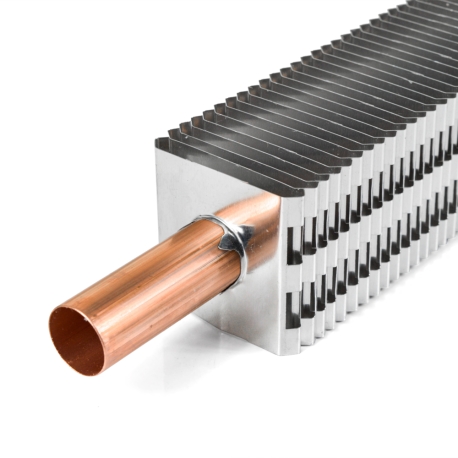

4ft long replacement heating element for Fine/Line 30 and Base/Line 2000 Slant/Fin baseboard. Comes with (3) plastic noise-supressing cradles pre-installed.
NOTE: to prevent bending of the fins, do not pull element out from the narrow end of the box. Instead, open both ends of the box and carefully cut it open length-wise along the very edge.

Features:
  • Outputs ~600 BTU's per linear ft of length (180°F standard, @ 4 GPM)
  • Individually boxed to prevent scratching & damage on the jobsite
  • Comes with (3) plastic expansion cradles
  • Made in the USA

Technical Specifications:
  • Total length: 48"
  • Active finned length: 5-6" less than total length
  • Connections: 3/4" copper sweat
  • Aluminum finns: 2-5/16" x 2-1/8", spaced 55 per linear ft
  • Plastic cradles included (pre-installed): 3
  • BTU's: (see specs file) varies by supply temperature and flow rate - averages ~600 BTUs per linear ft (180°F temperature @ 4GPM)
