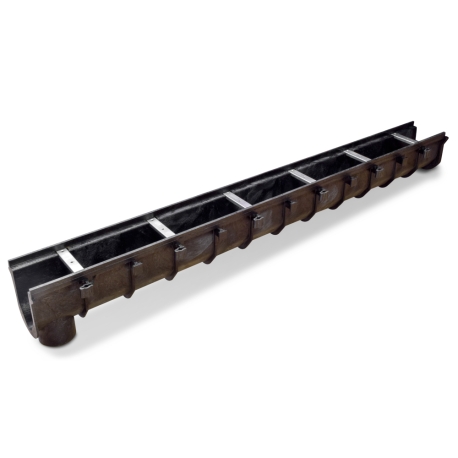

72" Heavy-Duty FastTrack Trench & Driveway Channel Drain, Sloped #4
Brand: Sioux Chief
Part#: 865-S4
made in usa
Usually ships: Upon availability
FastTrack is top-quality, USA-made, rugged trench channel drain system from Sioux Chief. Designed to seamlessly integrate into any setting - whether residential, commercial or industrial. Competitively priced, packed with features and easily customizable, it's a drainage solution designed to last. The core of the FastTrack system are pre-sloped and numbered trench drain sections which allow to gradually increase channel depth while maintaining a consistent 0.75% slope angle. Multiple sections can be connected without any special tools - just pick any grate desired and optional accessories.

Features:
  • Made in the USA
  • Heavy-duty design, suitable for loads up to 3,300 lbs w/ HDPE or Stainless/Galvanized Steel grates (A15), up to 56,200 lbs with Ductile Iron grates (C250) and up to 89,900 lbs with Ductile Iron grates and an addition of 865-F grate frame (D400).
  • Modular design makes it very easy to install FastTrack.
  • UV-stabilized HDPE is durable, environment-friendly and is resistant to most common chemicals.
  • Includes construction cover.
  • Locking tongue-in-groove connections - no fasteners needed.
  • Rebar anchors on both sides simplify installation.
  • Stainless steel integral grate anchors and structural ribs create a solid construction, resistant to deformation during concrete pours.
  • Horizontal (add 865-EO) or vertical (factory-standard) drain configuration capability.

Technical Specifications:
  • Length: 72"
  • Overall Height: 8.90"
  • Overall Width: 9-3/4"
  • Channel Depth: 5.24" (shallow end), 5.78" (deep end)
