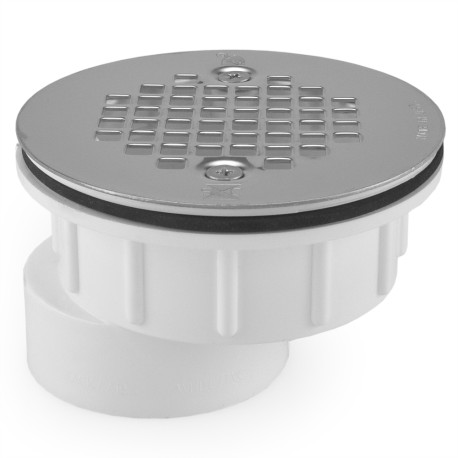

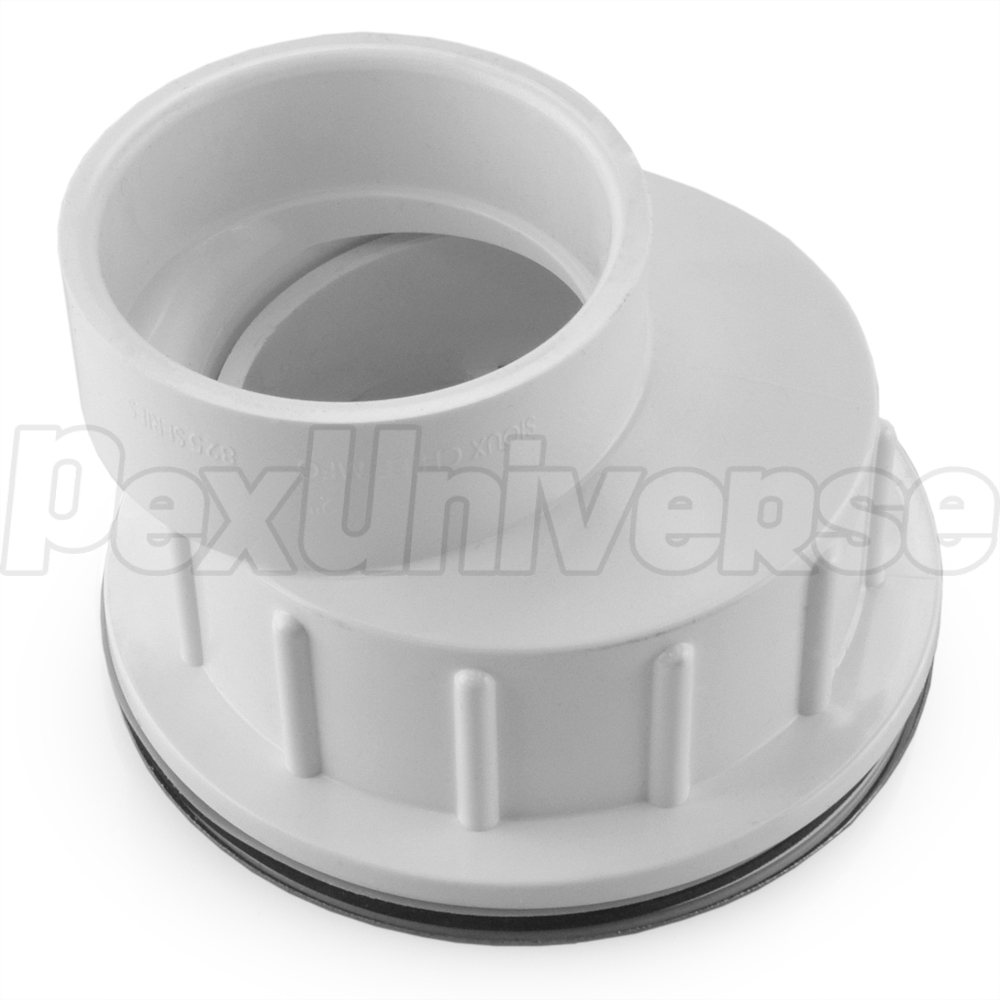

2" Hub PVC, Offset Shower Module Drain (Solvent Weld) w/ Screw-On Strainer
Brand: Sioux Chief
Part#: 825-2PFS
made in usa
In Stock
Ship Pickup
Estimate delivery
Usually ships: within 1 business day
Pick Up available
$8.45 / each
$80.50 box of 10
($8.05 each)
Add to Cart
Orders over $99 ship free

Description

Offset type PVC shower drain provides 3/4" offset in any direction. Intended for installation with fiberglass shower bases, one-piece shower units or similar. 2" Hub connection accepts/fits over standard 2" PVC pipe (both Sch. 40 and 80). Comes with a screw-on type 19-gauge stainless steel strainer and matching screws. High quality and durable, made in the USA by Sioux Chief.

Features:
  • Used when needed to offset from a joist or other obstacle
  • Provides a 3/4" offset in any direction
  • Drain has pilot holes in top for standard screws
  • Accepts both snap-in and screw-on type strainers
  • Compatible with Sioux Chief replacement strainer models 827-2RB, 827-2S, 827-2SP, 827-2SN, 821-2RB, 821-2S, 821-2SP, 825-2SN
  • No putty needed.

Technical Specifications:
  • Body Material: PVC
  • Connection: 2" Hub PVC (Solvent Weld PVC)
  • Drain type: Receptor Base (top portion with strainer screws into the receptor/drain body)
  • Overall Height: 2"
  • Top diameter: 4-1/4"
  • Strainer type: Screw-on
  • Screw Center: 2-5/8"
  • Strainer material: 19-gauge, 430 stainless steel
  • Strainer finish: Polished Steel
  • Offset: 3/4"
  • Strainer load ratings: 300 lbs
  • Strainer flow capacity: 7.02 GPM
  • Designed in accordance: ASME A112.18.2-2005 / CSA B125.2-05.

Documents

Write a Review
Helpful? Yes No
Verified Purchase
They work fine
They work fine
By Frank (from Conneautville, PA) on 03/11/2024

FAQs (1)

Ask a Question
Does this drain need sealer used to install it or just the Gaskets ?
Helpful? Yes No
This particular model (825-2PFS) is solvent weld and connected to the drain pipe using PVC cement. As for the top portion where the drain is connected to the shower base, no sealant or putty is needed since a rubber gasket is included.
By PexUniverse Customer Service on 12/20/2018
