WeldOne 2" PVC Integral Trap Floor Drain w/ Round Ductile Iron Strainer & Ring Sioux Chief
WeldOne 2" PVC Integral Trap Floor Drain w/ Round Ductile Iron Strainer & Ring
Brand: Sioux Chief
Part#: 800-PIR
This product has been discontinued. No direct replacement is available at this time.

Description

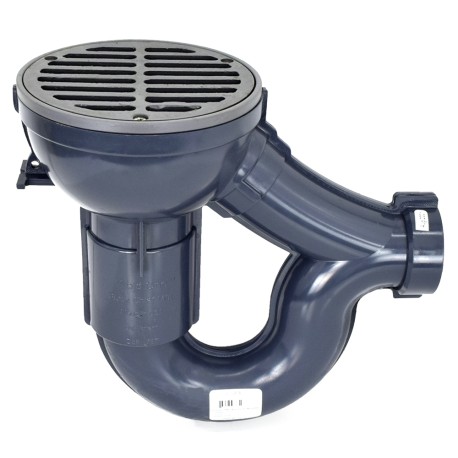

Sioux Chief WeldOne is a one-piece, sonic welded (not glued) floor drain with built-in P-trap and cleanout with 1-1/2" MIP plug (pre-installed inside the drain). Heavy-duty solid ductile iron strainer and ring. Compatible with (optional, not included) 802-7 backwater device. Adhesive cover protects the drain from dirt and debris during installation. 2" hub connection accepts Sch 40/80 PVC pipe (solvent weld connection - regular PVC cement and primer).

Features:
  • Integrated P-trap makes installation quicker and easier
  • Pre-sloped drain outlet for proper drainage
  • Sonic welded (not glued), reliable design
  • Knock-out primer port
  • Pre-installed 1-1/2" MIP polypro cleanout plug for easy drain cleaning
  • Compatible with 802-7 backwater device (optional, sold separately)
  • Adhesive debris cover protects the strainer during installation
  • Made in the USA

Technical Specifications:
  • Connection: 2" PVC Hub, Solvent Weld - glues over 2" PVC pipe
  • Strainer & Ring: Ductile Iron, Round
  • Strainer Load Rating: 5,000 lbs
  • Top Diameter: 6-1/2"
  • Overall Length: 12"
  • Overall Height: 11-1/2"
  • Knock-out Primer Port: 1/2" FIP threaded
