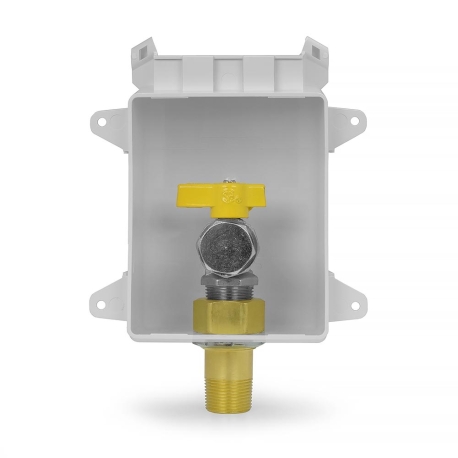

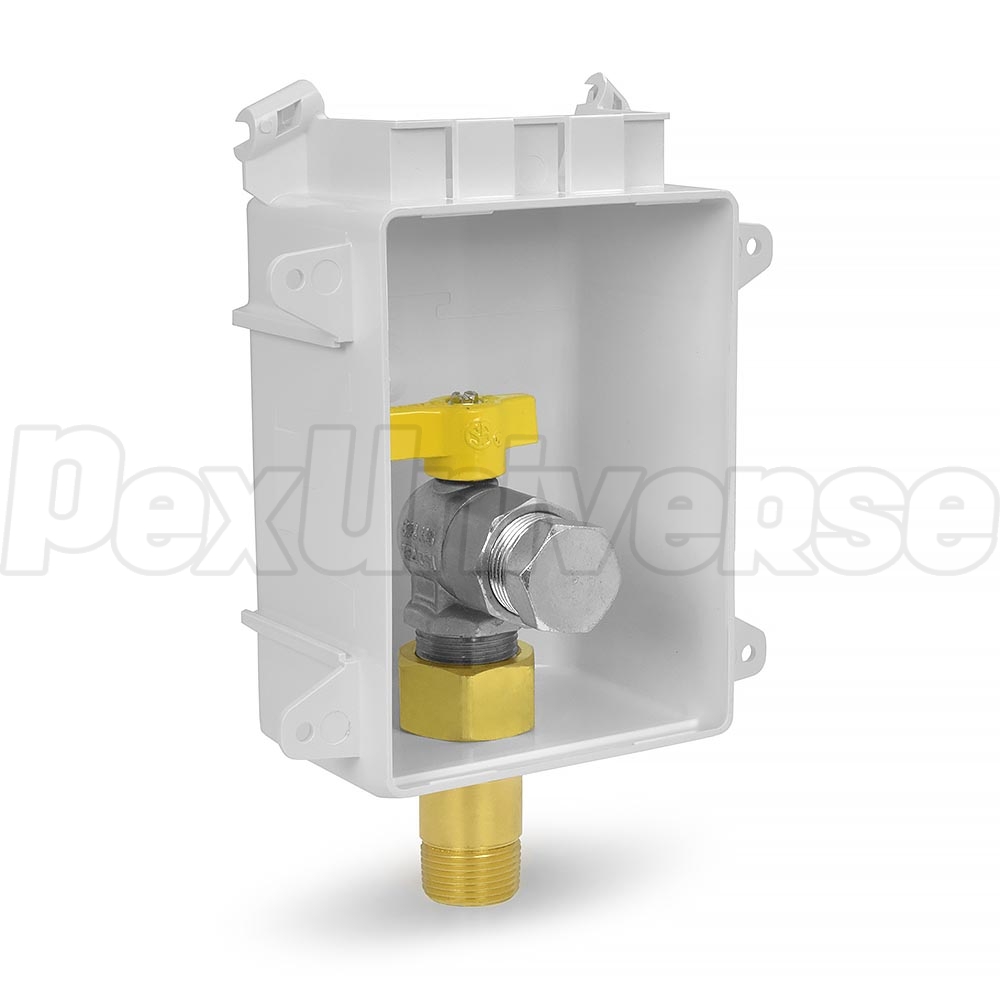

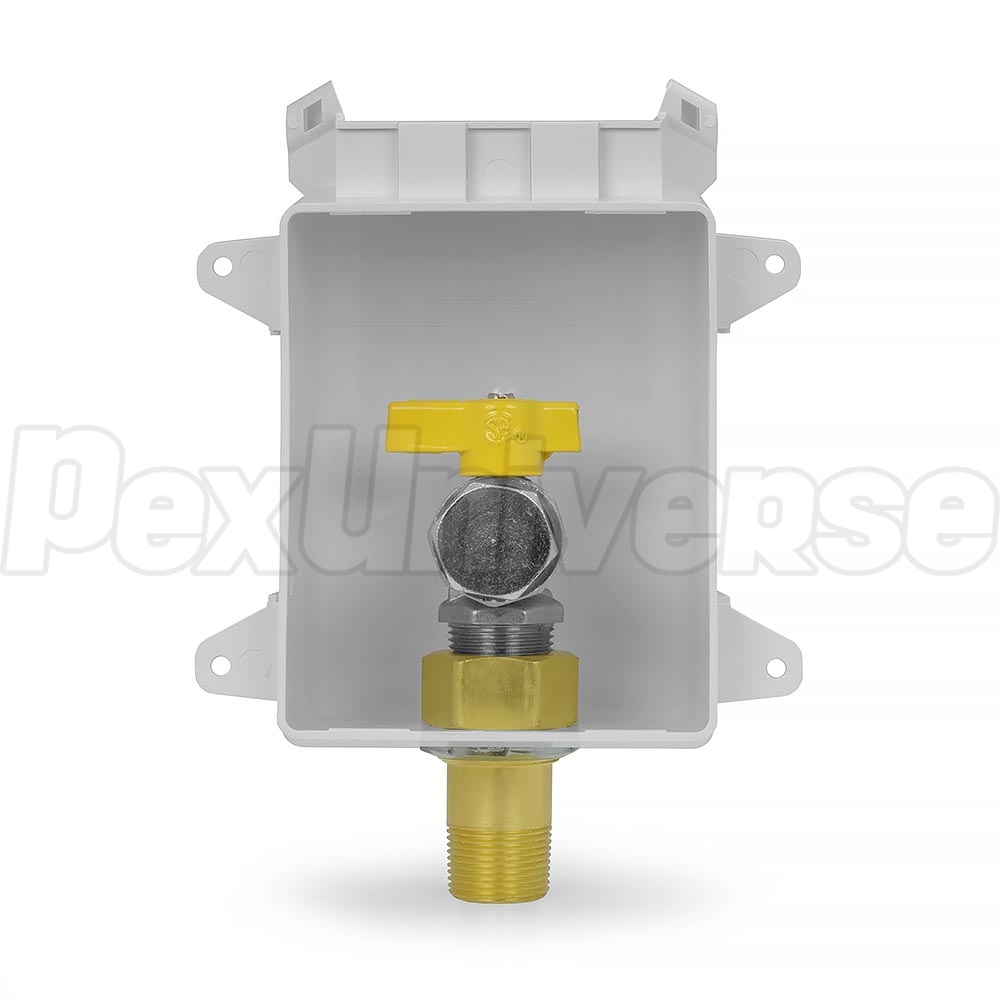

Ox Box Gas Outlet Box, 3/4" NPT
Brand: Sioux Chief
Part#: 696-1031GF
In Stock
Ship Pickup
Estimate delivery
Usually ships: within 1 business day
$22.45 / each
$128.10 box of 6 + Free Shipping
($21.35 each)
Orders over $99 ship free

Sioux Chief Ox Box Gas Outlet Box provides a professionally looking and cost effective solution for any gas appliance installation needs.


Features:
  • 1/4-turn 3/4" NPT ball valve for easy, secure, accessible operation
  • High-impact ABS body for strong and durable installation
  • Gas valve is CSA certified to ANSI Z21.15-1997 / CGA 9.1-M97
Write a Review
Helpful? Yes 1 No
Installed with ease using csst connections
Works well, needed 3/4 for range. Clean professional looking instal.
Gas Valve Size: 3/4"
By PRG (from New Jersey ) on 09/10/2014
Helpful? Yes 1 No
Verified Purchase
Clean Install
I like this box for a gas install as it makes for a simple connection and a clean look with minimal outside-the-wall installation for saving space. I use CSST and run it right to this box with a female fitting. Once in the wall, the gas line is protected and you don't have any black pipe to mess with (at least for a stove or dryer).
Gas Valve Size: 1/2"
By Tim (from Indiana) on 03/18/2014
Helpful? Yes 1 No
Verified Purchase
Nice and clean
Used this in my new kitchen when I relocated my range. Nice clean look and no iron pipe sticking up through the floor. Now my range can be pushed tight to the wall. It even came with a test plug. BTW: a 3/4", 1/4 turn gas shutoff at the local big box store is about the same price, but without the recessed box.
Gas Valve Size: 3/4"
By Joe C (from Irwin, PA) on 05/07/2013
Helpful? Yes 1 No
Exactly what I was looking for...

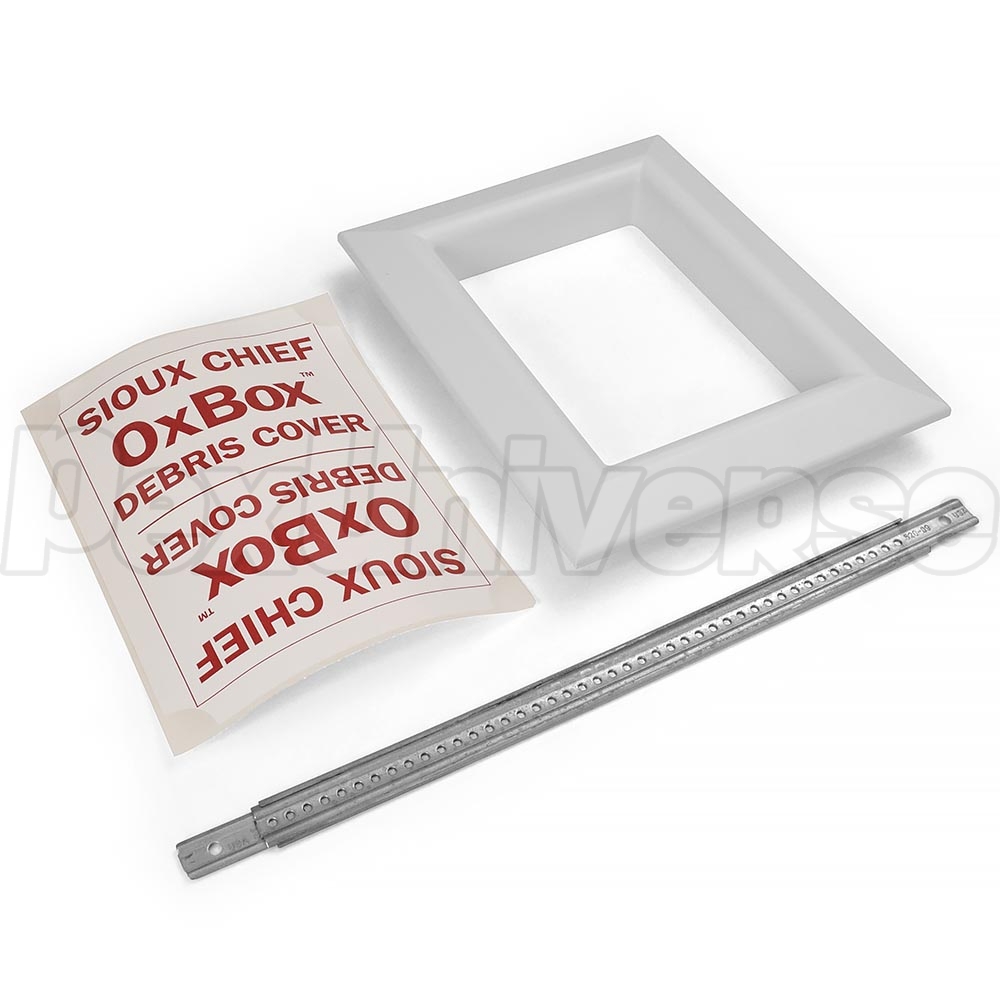

We wanted a neat installation for the appliance piping for our range and clothes dryer. This item allows the gas valve to be set behind the plane of the wall, and finished with a bezel (just like an ice maker valve box). Other nice features are the 90 degree gas valve - I like the fact that I can use a shorter CSST appliance connector, and not have to bend it awkwardly at the valve connection when I have to move the appliance. The kit comes with mounting options for both stud-nailing and mid-span perforated hanger. I used the perf, which is thick and holds the box well. It also comes with a 1/2" stainless plug, so you can plug the valve outlet and pressure test with the valve open (remember - most gas cocks have body ratings of 600psig, but the valve seats are usually only good for 3-5 psig. A 10psig test can leak through the valve seal.)I would recommend this product.
Gas Valve Size: 1/2"
By Rich (from Scotch Plains, NJ) on 04/25/2012
Helpful? Yes No
Verified Purchase
yes
making the job just a little easier. i like The "OX Box"
Gas Valve Size: 1/2"
By Kyle (from Bluffton, IN) on 09/09/2020
Helpful? Yes No
Verified Purchase
Outlet box
Great product
Gas Valve Size: 3/4"
By Lynn (from Kiowa, CO) on 11/11/2019
Helpful? Yes No
Verified Purchase
clean and tidy
Looks great tucked into wall. Easy installation
Gas Valve Size: 3/4"
By Tom (from Indianapolis, IN) on 03/13/2019
Helpful? Yes No
Verified Purchase
Great product.
Easy to install and tight to the wall so my stove and dryer fit tight.
Gas Valve Size: 3/4"
By TONY (from Gasport, NY) on 01/18/2019
Helpful? Yes No
Verified Purchase
Great item
Nice product at a great price. No issues.
Gas Valve Size: 1/2"
By James (from Cortez, CO) on 09/13/2018
Helpful? Yes No
Verified Purchase
Just what I needed
I ran the gas line in the wall because I didn't know what my clearances behind the range would be, then ran into difficulty enclosing it after the fact. (I know!) The Ox Box Gas Outlet Box is the lifesaver I needed!
Gas Valve Size: 1/2"
By 100 year old foursquare (from Indianapolis) on 07/07/2016
