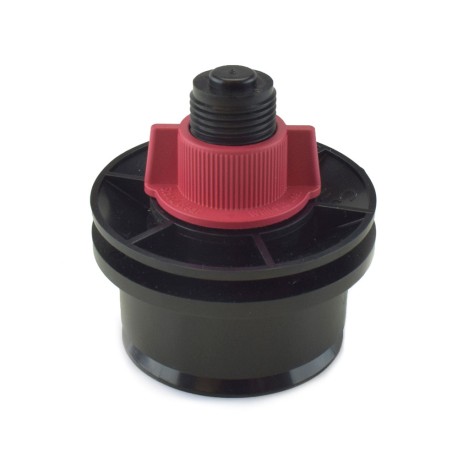

3" TestTitan, Pipe/FIP Cleanout Mechanical Test Plug Sioux Chief
3" TestTitan, Pipe/FIP Cleanout Mechanical Test Plug
Brand: Sioux Chief
Part#: 882-3
made in usa
In Stock
Pick Up ready by {{ pickupBy }}
Usually ready: within 1 hour

Description

TestTitan plug is designed for DWV pressure testing in PVC, ABS and Cast Iron drainage and vent systems. Suitable for installation inside 3" Schedule 40 (only) PVC pipe, ABS pipe and Cast Iron no-hub pipe, as well as inside FIP (standard female threaded) cleanout - no special adapter needed. Drill or cut off tip to make a hole and connect standard garden hose for water pressure testing where needed.

Warning: as with all pressure testing equipment, follow all applicable codes/procedures, manufacturer reccommendations and wear safety gear when performing DWV drain tests. Stay clear of the test tees, cleanouts and pipe ends while system is under pressure.

Features:
  • Reusable - easy installation and removal
  • For use in both pipe end (barrel/inside) and FIP cleanout threads
  • Use a 9/16" drill bit or cut off the tip to access the hollow stem
  • Hollow, 3/4" male hose thread stem allows to fill/drain through the plug. Connects to a standard garden hose
  • Consists of polypro wingnut, ABS disc, ABS stem and soft PVC gasket
  • Non-slip shoulder prevents spinning
  • 1" wide gasket vs 0.5" in competition
  • Made from 100% corrosion proof material.

Technical Specifications:
  • Size: for 3" PVC (Sch. 40), ABS, Cast Iron pipe or FIP cleanout
  • Stem, base and disc material: ABS
  • Nut material: PolyPro
  • Gasket material: soft PVC
  • Safe working loads (for pipe): 20 PSI
  • Safe working loads (for cleanout): 20 PSI
  • Overall Diameter: 3.5"
  • Overall Depth: 3.7".
