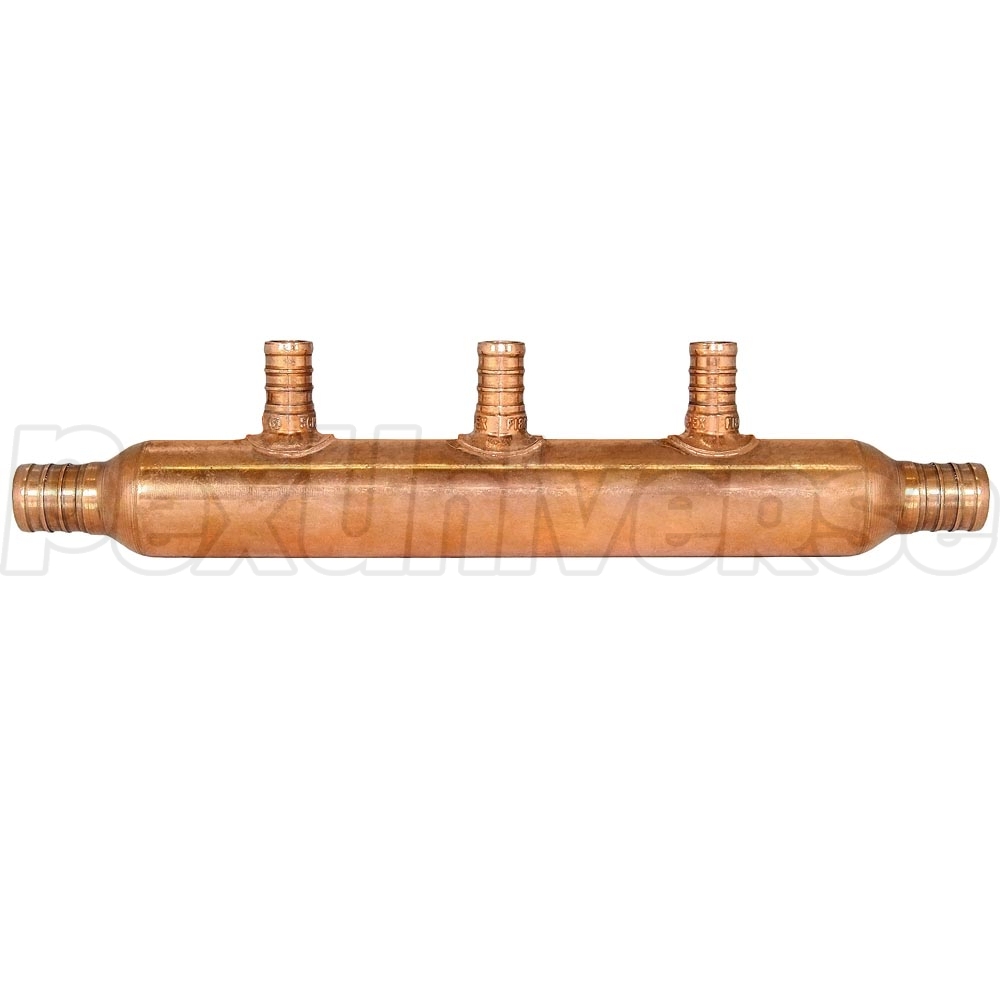

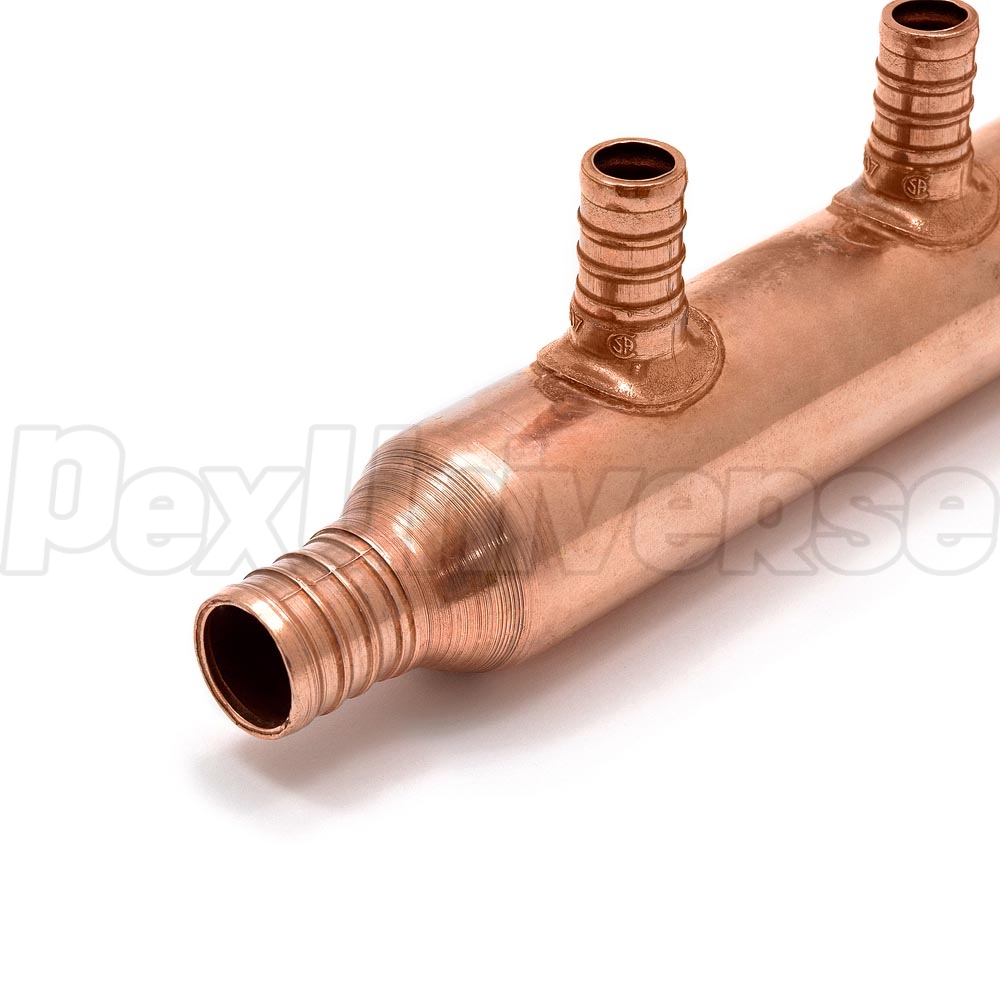

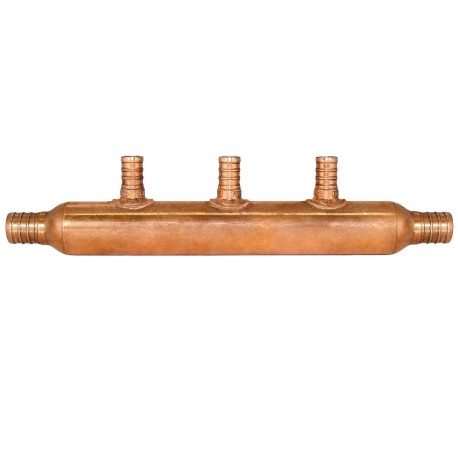

3-port Copper Manifold with 1/2" PEX branches, 3/4" PEX x Open Sioux Chief
3-port Copper Manifold with 1/2" PEX branches, 3/4" PEX x Open Sioux Chief
3-port Copper Manifold with 1/2" PEX branches, 3/4" PEX x Open Sioux Chief
100%
3-port Copper Manifold with 1/2" PEX branches, 3/4" PEX x Open Sioux Chief
3-port Copper Manifold with 1/2" PEX branches, 3/4" PEX x Open Sioux Chief
3-port Copper Manifold with 1/2" PEX branches, 3/4" PEX x Open
Brand: Sioux Chief
Part#: 672X0399
made in usa
In Stock
Ship Pickup
Estimate delivery
Usually ships: within 1 business day
Pick Up available
$13.45 / each
$318.75 box of 25 + Free Shipping
($12.75 each)
Add to Cart
Orders over $99 ship free

Description

Sioux Chief BranchMaster manifolds feature PEX crimp-style outlets (F1807) and can be installed using crimp or clamp connection systems. Compatible with all PEX types.


Features:
  • No lead
  • Made from pure, L-type copper
  • PEX crimp style inlet/outlets (F1807)
  • Compatible with crimp ring or cinch clamp connection systems
  • Use as primary or secondary manifold
  • cUPC listed
  • Made in the USA

Technical Specifications:
  • Trunk inlet: 3/4" PEX
  • Trunk outlet: 3/4" PEX
  • Trunk size (diameter): 1" copper pipe (CTS)
  • Branches: 1/2" PEX
  • Number of branches: 3
  • Branch spacing: 2" OC (On Center)
  • Manifold dimensions (Length x Height): 9" x 2"

Documents

Write a Review
Helpful? Yes No
Verified Purchase
Pex manifold
Excellent product. Good price and great service.
Branches: 5
By William (from Clayton, NC) on 03/08/2025
Helpful? Yes No
Verified Purchase
Good all the way.
Great all the way around. No problems getting my order. 2 days out. Thank you. James M.
Branches: 4
By James (from Maryville, TN) on 02/22/2024
Helpful? Yes No
Verified Purchase
Valveit
Good valve less manifold
Branches: 4
By George Richards (from Columbia, CT) on 01/20/2023
Helpful? Yes No
Verified Purchase
Better than original
This new one seems to be better made than the original installed manifold. The old one was leaking at the seams of the PEX connection nozzles. The new one has saddle instead of extruded weld fittings. Fast shipping.
Branches: 8
By Anthony (from Basking ridge, NJ) on 02/10/2020
Helpful? Yes No
Verified Purchase
High quality.
Great service!
Branches: 8
By Jeff (from Nampa, ID) on 12/18/2019
Helpful? Yes No
Verified Purchase
As good as anyones
The quality of materials were just as good or better than all others that I have used.
Branches: 6
By JOHN (from Metairie, LA) on 11/14/2019
Helpful? Yes No
Verified Purchase
Great manifold. No Issues
I used this manifold to run PEX to my 6 outside faucets. Was easy to install and no leaks.
Branches: 6
By BoylermanCT (from Barkhamsted, CT) on 10/29/2016
Helpful? Yes -1 No
like it!
Simple and effective. Good stuff!
Branches: 8
By Jimmy (from Granada Hills, CA) on 04/03/2012
