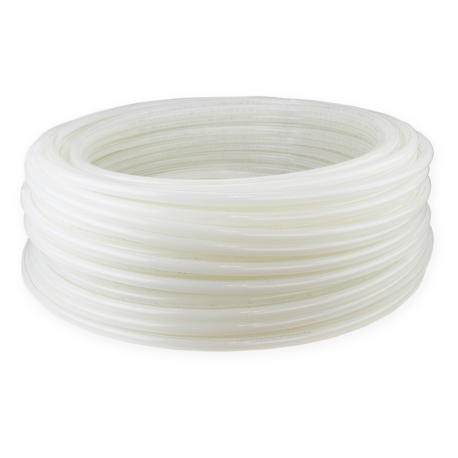

1/2" x 300ft PowerPEX Oxygen Barrier PEX-A Tubing, Natural Sioux Chief
1/2" x 300ft PowerPEX Oxygen Barrier PEX-A Tubing, Natural
Brand: Sioux Chief
Part#: 665XA2N300H
In Stock
Ship Pickup
Estimate delivery
Usually ships: within 1 business day
Pick Up available
$205.95 / each
$799.80 box of 4
($199.95 each)
Free Shipping on any qty
Add to Cart

Description

300ft roll of 1/2" Sioux Chief PowerPEX oxygen barrier type PEX-a tubing. For use with F1960 style expansion fittings, expander tool, and expansion sleeves. Fully compatible with Uponor ProPEX connection system.

Applications:
  • Closed loop or open loop radiant floor heating
  • Hydronic heating systems
  • Approved for potable water use.

Cross-References:
  • Uponor/Wirsbo hePEX A1250500
  • Mr. PEX 1220030.

Features:
  • Made in the USA
  • Lead-free, certified for potable water use (NSF/ANSI 61 & 372, nsf-pw-g)
  • Meets ASTM F876/F877/F2023/F1960/F2080/F2159/F1807 & CSA B137.5 standards
  • UPC listed
  • Installed using expansion method (expansion tool + rings), compatible with Uponor/Wirsbo ProPEX system (hePEX, AquaPEX), Sioux Chief, Mr. PEX & Rehau
  • Pressure/temperature ratings: 160 psi @ 73.4°F, 100 psi @ 180°F, 80 psi @ 200°F.

Documents

Write a Review
Helpful? Yes 1 No
Verified Purchase
$$
Best price around for quality pex-a
Length: 1000'
By Matthew (from Narberth, PA) on 02/25/2020
Helpful? Yes No
Verified Purchase
works as advertised
This is good stuff. Has the same designation as the hePex from Uponor. We are using this for radiant heat below flooring. The tubes are flexible and easily wrap around the bends between the plywood sleepers. It's much cheaper than Uponor and American made :)
Length: 1000'
By Matthew (from Elizaville, NY) on 08/10/2021
Helpful? Yes No
Verified Purchase
as described
order delivered as described, good value
Length: 300'
By John (from Gladstone, MI) on 07/08/2021
Helpful? Yes -1 No
Verified Purchase
A1
Great
Length: 300'
By Edward (from Cortez, CO) on 10/12/2021

FAQs (5)

Ask a Question
What is the bend radius?
Helpful? Yes No
For all PEX tubing, the bend radius is 8 times the OD of the pipe. For 1/2" PEX (with 5/8" OD), it would be 5". The pipe can be spaced closer than 10" apart if needed (i.e. 8", 6", etc.), but the actual bend radius would need to be maintained, meaning the two parallel pipe runs with a U-turn would look similar to a match (thicker round head with a slimmer stem). Despite recommendations for smaller bend radius out there (such as 4" or even smaller), we suggest avoiding this practice, as it puts unnecessary stress on the pipe and deforms it, resulting in pressure drop and potential weak point.
By PexUniverse Customer Service on 02/19/2024
Is the oxygen barrier an inner layer or is it on the surface of the tubing?
Helpful? Yes No
It's on the surface
By PexUniverse Customer Service on 12/24/2019
Can this be used with John Guest fittings?
Helpful? Yes No
Yes.
By PexUniverse Customer Service on 04/25/2019
Can this pex be used for in floor heat in concrete?
Helpful? Yes No
Yes, this is its primary application.
By PexUniverse Customer Service on 04/09/2019
Can this tubing be used with crimp fittings?
Helpful? Yes No
Yes. PEX-a tubing is compatible with PEX crimp (and cinch clamp) connection systems, since it's manufactured to the same dimensional standard as PEX-b.
By PexUniverse Customer Service on 09/10/2018
