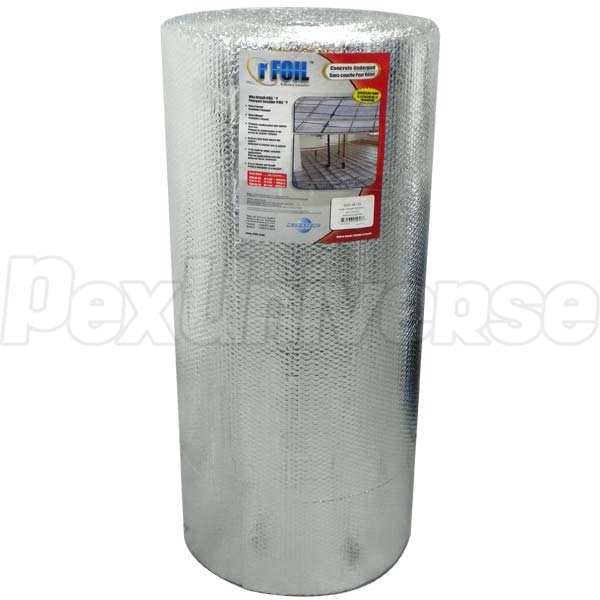

500 sqft, 4ft x 125ft rFoil Under-Slab Concrete Radiant Heat Insulation, Underpad rFoil
500 sqft, 4ft x 125ft rFoil Under-Slab Concrete Radiant Heat Insulation, Underpad rFoil
500 sqft, 4ft x 125ft rFoil Under-Slab Concrete Radiant Heat Insulation, Underpad rFoil
500 sqft, 4ft x 125ft rFoil Under-Slab Concrete Radiant Heat Insulation, Underpad
Brand: rFoil
Part#: 4320-48-125
made in usa
In Stock
Ship Pickup
Estimate delivery
Usually ships: within 1 business day
Pick Up available
$280.00 / each
$1,060.00 box of 4
($265.00 each)
Free Shipping on any qty
Add to Cart

Description

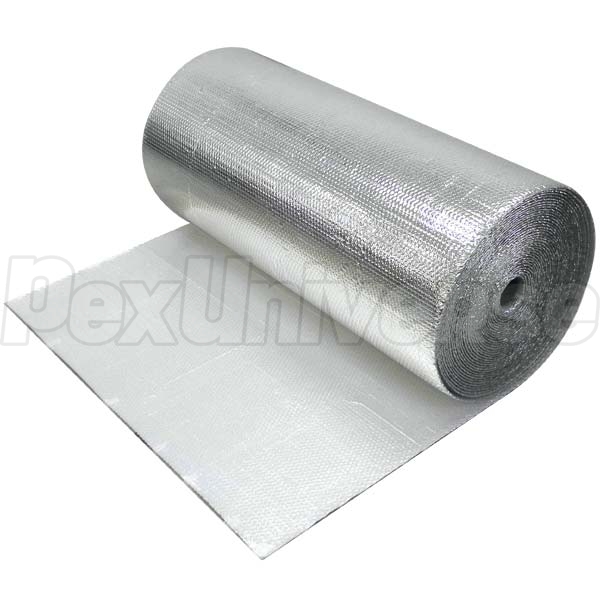

4320 series underpad is a multi-layer reflective bubble insulation, comprised of metalized reflective foil, 8.4mil dual-bubble and top-most white poly layer. The underpad is R-1.1 and provides a basic thermal break in concrete slab installations. It also serves as an effective water vapor & radon barrier and is resistant to mold, fungi and insects.
rFoil Underpad is durable, puncture and tear resistant. It is best suited for projects where slab insulation is optional and the additional cost of rigid foamboard installation is unfeasible. 4ft x 125ft roll covers a 500 sqft area. White layer must be facing up when installing.

Features:
  • For use in under-slab conrete installations with or without radiant heat
  • 2-in-1 insulation & vapor/radon barrier
  • Quick and easy to handle, cut and install - saves time, labor and money
  • Cost-effective alternative to rigid foam insulation
  • 3.5 times the compression strength of rigid foam
  • Also suitable for slab edge insulation
  • Does not crack or delaminate
  • Resistant to insects, fungi, bacteria.

Technical Specifications:
  • Coverage: 500 sqft (48" wide x 125ft long)
  • R-Value: R-1.1
  • Compression strength: 70 psi
  • Nominal thickness: 5/16"
  • Multi-layer 8.4 mil bubble core.

Documents

Write a Review
Helpful? Yes No
Verified Purchase
pex line
yes it arrived on time and as described, going to have to wait till the ground warms back up to put it under the new cement in spring
By KEVIN (from Le sueur, MN) on 11/13/2020
Helpful? Yes No
Verified Purchase
Bubble stuffs
Great Product, fast shipping, just what I needed for my concrete slab.
By Josh (from Knoxville, PA) on 10/28/2020
Helpful? Yes No
Verified Purchase
Best deal I could find on radiant underlayment
I know this will definitely help reflect some heat back into the home. It was 10-15 degrees warmer from the sun reflection as I was installing my radiant pex tubing over it. I recommend you use sunscreen!
By Scott (from Catawba, NC) on 04/02/2019

FAQs (2)

Ask a Question
Can this be used over an existing slab under carpeting or laminate flooring?
Helpful? Yes 6 No
This radiant bubble insulation is designed strictly for slab insulation - whether between ground and slab or between two slabs. It is designed to be fully covered with concrete and is not designed to be exposed to finished flooring, padding, etc.
By PexUniverse Customer Service on 09/11/2012
Can this be used for sleeper hydronic floor system when slab will be 1 1/4 thick
Helpful? Yes No
By PexUniverse Customer Service on
