3/4" x 75ft coil ProFlex CSST Gas Pipe, Black (w/ Arc-Resistant Jacket) ProFlex
3/4" x 75ft coil ProFlex CSST Gas Pipe, Black (w/ Arc-Resistant Jacket) ProFlex
3/4" x 75ft coil ProFlex CSST Gas Pipe, Black (w/ Arc-Resistant Jacket) ProFlex
3/4" x 75ft coil ProFlex CSST Gas Pipe, Black (w/ Arc-Resistant Jacket)
Brand: ProFlex
Part#: PFARCT-3475
In Stock
Ship Pickup
Estimate delivery
Usually ships: within 1 business day
$290.95 / each
$1,103.80 box of 4
($275.95 each)
Free Shipping on any qty

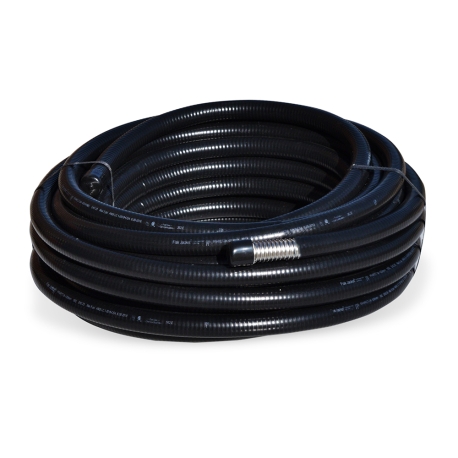

75ft coil of 3/4" size ProFlex CSST Flak Jacket brand flexible gas pipe for indoor, above-ground distribution of natural gas and propane.

Features:
  • Easy-to-use & proven connection system for 20+ years
  • Stainless steel tubing is annealed for added flexibility
  • Flak Jacketâ„¢ carbon-filled polyethylene jacket is arc-resistant and dissipates electricity
  • UV-resistant
  • Marked every foot
  • 100% pressure tested at the factory
  • Made in the USA

Technical Specifications:
  • Size: 3/4" Nominal (Pipe ID - 0.780"; Pipe OD - 1.001"; Pipe w/ Jacket OD - 1.090")
  • Length: 75ft
  • Application: Natural Gas & Propane
  • EHD: 25
  • CSST Material: 304 Stainless Steel (per ASTM A240/A240M-95A)
  • Jacket Material: Carbon-Filled Black Polyethylene (Flak Jacket Arc-Resistant Jacket) - UV-resistant, Electricity-Dissipating
  • Max operating pressure: 5 PSI
  • Operating temperature range: -20°F - 200°F (-28°C - 93°C)
  • Min. bending radius: 3"
  • Code Compliance: National Fuel Gas Code, IAPMO (UPC & UMC); ICC Code Series (International Fuel Gas, Mechanical, & Building Codes)
  • Standards & Listings: ANSI/LC1, CSA 6.26
Ask a Question
Does this pipe need to be grounded?
Helpful? Yes No
It does not, but if the local code requires it, the code shall prevail. Grounding (bonding) instructions can be found in the manual if needed.
By PexUniverse Customer Service on 05/09/2022
Is it direct burial can I just put it in the ground and cover it up
Helpful? Yes No
For underground burial, ProFlex CSST must be routed within a non-metallic, water tight conduit (page 6/2 of the installation manual).
By PexUniverse Customer Service on 05/18/2020
