1" x 75ft coil ProFlex CSST Gas Pipe, Black (w/ Arc-Resistant Jacket)
Brand: ProFlex
Part#: PFARCT-0175
In Stock
Ship Pickup
Estimate delivery
Usually ships: within 1 business day
$385.95 / each
$1,463.80 box of 4
($365.95 each)
Free Shipping on any qty

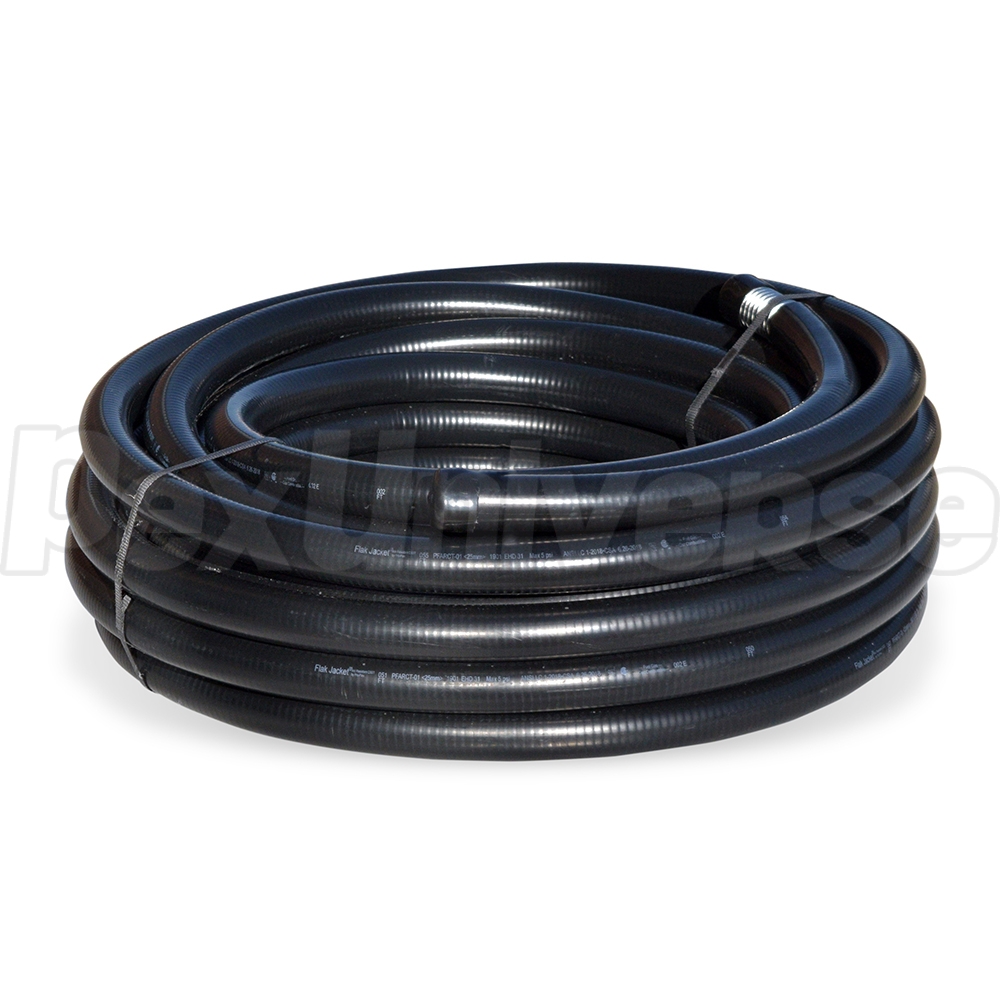

75ft coil of 1" size ProFlex CSST Flak Jacket brand flexible gas pipe for indoor, above-ground distribution of natural gas and propane.

Features:
  • Easy-to-use & proven connection system for 20+ years

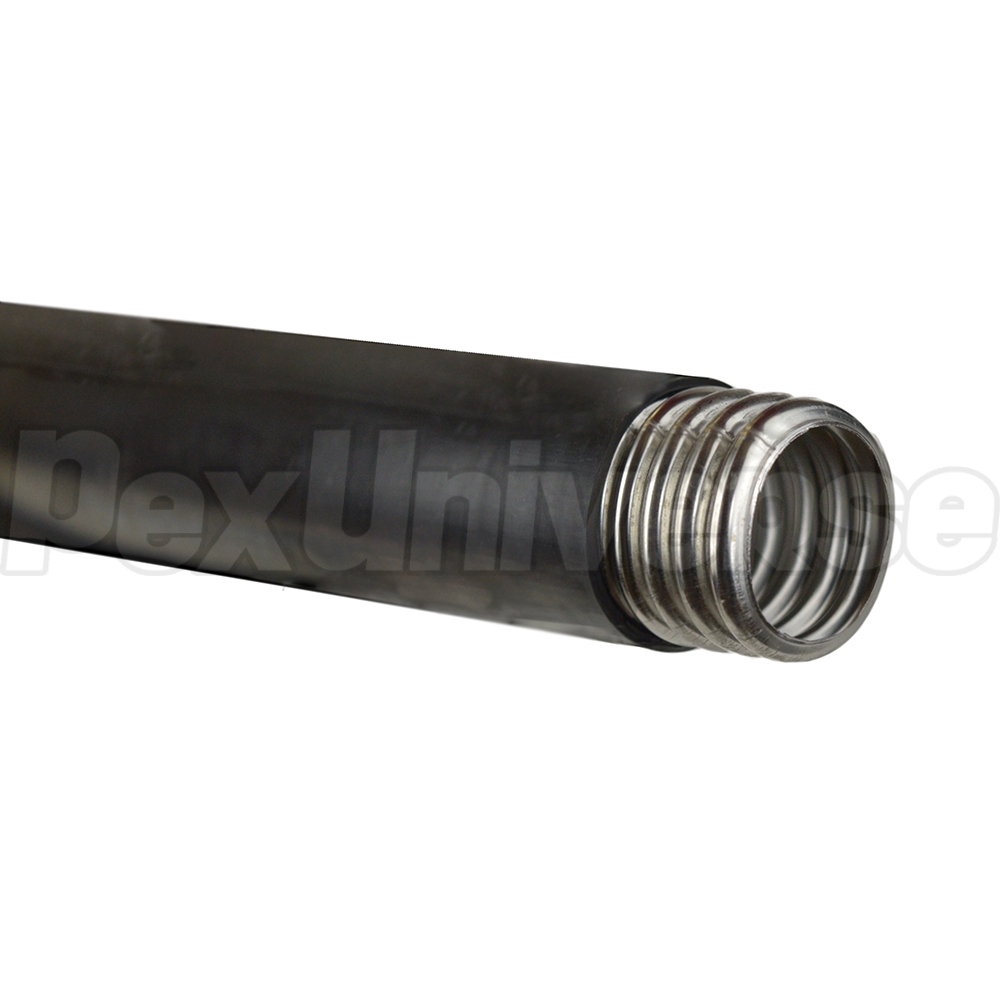

  • Stainless steel tubing is annealed for added flexibility
  • Flak Jacketâ„¢ carbon-filled polyethylene jacket is arc-resistant and dissipates electricity
  • UV-resistant
  • Marked every foot
  • 100% pressure tested at the factory
  • Made in the USA

Technical Specifications:
  • Size: 1" Nominal (Pipe ID - 1.070"; Pipe OD - 1.240"; Pipe w/ Jacket OD - 1.355")
  • Length: 75ft
  • Application: Natural Gas & Propane
  • EHD: 31
  • CSST Material: 304 Stainless Steel (per ASTM A240/A240M-95A)
  • Jacket Material: Carbon-Filled Black Polyethylene (Flak Jacket Arc-Resistant Jacket) - UV-resistant, Electricity-Dissipating
  • Max operating pressure: 5 PSI
  • Operating temperature range: -20°F - 200°F (-28°C - 93°C)
  • Min. bending radius: 5"
  • Code Compliance: National Fuel Gas Code, IAPMO (UPC & UMC); ICC Code Series (International Fuel Gas, Mechanical, & Building Codes)
  • Standards & Listings: ANSI/LC1, CSA 6.26
Ask a Question
Does this not need grounding for lightning ?
Helpful? Yes No
While 2009 and later NFPA-54 does not require grounding/bonding Arc-Resistant CSST, the manufacturer still highly recommends (emphasized) it (see page 41 of the installation manual) and local code may require it. Bottom line is it's best to ground/bond the gas pipe.
By PexUniverse Customer Service on 09/16/2020
