5/8" ID x 1/2" Wall, Self-Sealing Pipe Insulation, 6ft Nomaco
5/8" ID x 1/2" Wall, Self-Sealing Pipe Insulation, 6ft Nomaco
5/8" ID x 1/2" Wall, Self-Sealing Pipe Insulation, 6ft Nomaco
5/8" ID x 1/2" Wall, Self-Sealing Pipe Insulation, 6ft
Brand: Nomaco
Part#: 6IL048058
made in usa
In Stock
Ship Pickup
Estimate delivery
Usually ships: within 1 business day
Pick Up available
$5.15 / each
$182.50 box of 50 + Free Shipping
($3.65 each)
Add to Cart
Orders over $99 ship free

Description

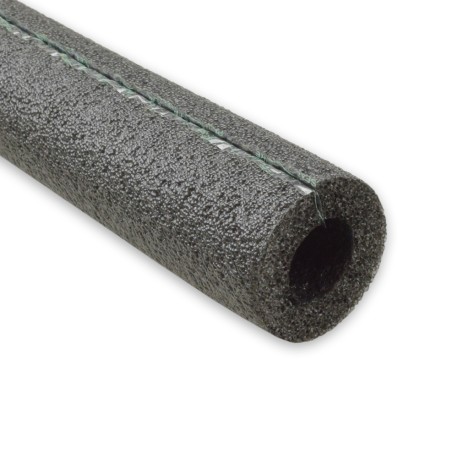

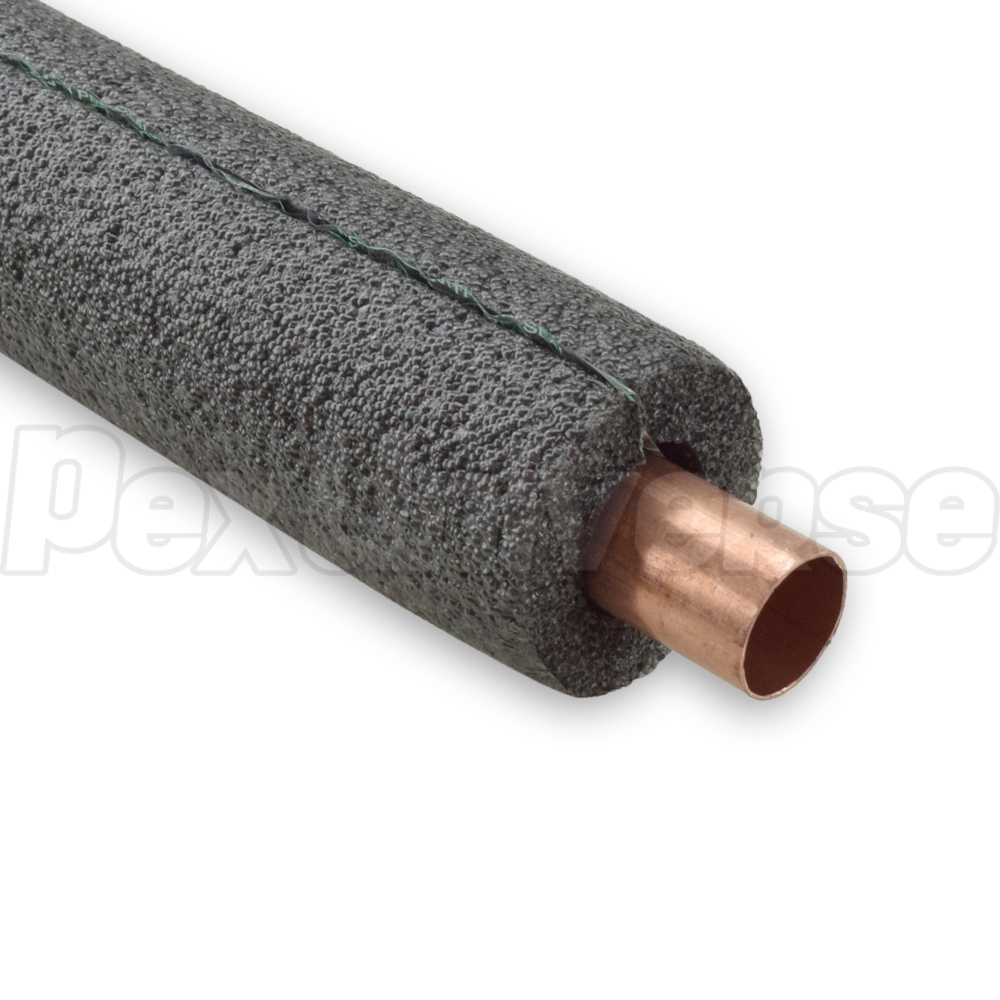

6ft (72") long, self-seal type closed-cell polyethylene foam pipe insulation for use with 1/2" copper/PEX/CPVC pipe or 3/8" black/brass/PVC pipe. Maximum pipe OD is 5/8". Insulation wall thickness is 1/2". Environment-friendly, made in the USA.

Features:
  • Self-Sealing, with PSA (Pressure Sensitive Adhesive) on both seam surfaces
  • Made in the USA to ASTM C1427 (Type 1/Grade 1) from up to 100% recycled content
  • Meets NFPA 90 A & B
  • Non-porous, closed-cell type polyethylene foam insulation
  • Resists mold growth
  • Low VOC and free from fiber, halogen, CFC's, HCFC's
  • For Indoor/Outdoor use, can also be installed underground.

Technical Specifications:
  • For copper/PEX/CPVC pipe size: 1/2"
  • For black/brass/steel/PVC pipe size: 3/8"
  • Insulation ID (max. pipe OD): 5/8"
  • Wall thickness: 1/2"
  • Length: 6ft
  • R-value: 3.5
  • Operating temperature range: -330°F - 210°F
  • For full list of properties, specifications and approvals, refer to Techinical Specifications.

Documents

Write a Review
Helpful? Yes 1 No
Verified Purchase
Insulation
A little disappointed with the holding power of the self adhesive. Had to tape the insulation closed. Seems to be a common issue, otherwise the insulation is working by preventing my pipes from sweating.
Reply from PexUniverse:
Along the pipe runs, the adhesive will hold with no issues. Any place where fittings are used (couplings, tees, elbows) - the insulation needs to be taped since fittings are larger than the pipe and ID of the insulation.
Wall Thickness: 1/2" | Pipe OD Size: 1-3/8"
By Glenn (from Elverson, PA) on 08/06/2020
Helpful? Yes No
Verified Purchase
Good product
Exactly as described. Fast delivery. Would use again.
Wall Thickness: 3/8" | Pipe OD Size:
By Brent (from El cajon, CA) on 06/12/2022
Helpful? Yes No
Verified Purchase
no surprises
just as advertised, I ordered numerous size's and quantities, order filled correctly with quick shipping. Take your time installing and it looks good and work's even better
Wall Thickness: 1/2" | Pipe OD Size:
By Ronald (from Belleville, MI) on 02/24/2021
Helpful? Yes No
Verified Purchase
Blocks light and cold
My basement has windows right below my kitchen, which is on an outer wall in cold Chicago. This product was perfect to inulate against light and cold.
Wall Thickness: 1/2" | Pipe OD Size:
By William (from Hillside, IL) on 02/19/2021
Helpful? Yes No
Verified Purchase
Easy
Very easy to install.
Wall Thickness: 1" | Pipe OD Size: 1-1/8"
By Richard (from Bakersfield, CA) on 04/04/2020
Helpful? Yes No
Verified Purchase
Great insulation
A good product, good price, fast shipping, good e mail updates.
Wall Thickness: 1" | Pipe OD Size: 7/8"
By dwayne (from Henderson, TN) on 03/08/2020
Helpful? Yes No
Verified Purchase
Outdoor Heating Loop
The project was to couple the a water boiler system in the house to an enclosed patio with heat exchangers on both ends. The outdoor loop between buildings was 3/4 Al PEX with this insulation slipped over it inside 3" DWV with a 165 foot loop distance. The fit between the inner PEX and outer DWV was perfect and it works great!
Wall Thickness: 1" | Pipe OD Size: 7/8"
By John (from Boulder, MT) on 08/27/2018
Helpful? Yes -1 No
Verified Purchase
fast shipment
fit and worked great, seal stuck every time
Wall Thickness: 1/2" | Pipe OD Size: 7/8"
By Jay (from Allenwood, PA) on 10/23/2020
Helpful? Yes -2 No
Verified Purchase
Pex insulation
Would not recommend to bring swimming with as an alternative to a pool noodle.
Wall Thickness: 1/2" | Pipe OD Size: 7/8"
By Jack (from Fargo, ND) on 10/22/2021
