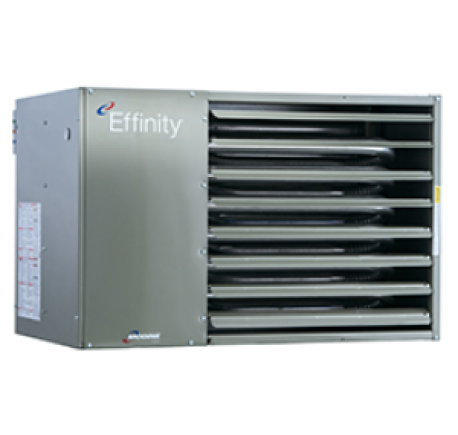

PTC260 Effinity 93 High Efficiency Condensing Unit Heater, NG - 260,000 BTU Modine
PTC260 Effinity 93 High Efficiency Condensing Unit Heater, NG - 260,000 BTU
Brand: Modine
Part#: PTC260AS0111
Model: PTC260
Usually ships: within 5-7 business days

Description

Modine PTC Effinity 93 series are high-efficiency (up to 93%) condensing unit heaters with sealed combustion design (draws 100% of combustion air from outside). PTC heaters offer an optimal combination of energy efficiency, low profile and powerful output, especially well suited for dusty or humid environments in commercial and industrial settings, including warehouses, distribution centers, manufacturing facilities and many others.
NOTE: can be converted to propane gas using #57905 kit.

Technical Specifications:
  • BTU/hr Input: 260,000
  • BTU/hr Output: 241,800
  • Fuel Type: Natural Gas
  • Gas Connection: 3/4"
  • Supply Voltage: 115V, 1-Phase
  • Igninion Type: Direct Spark, 1-Stage
  • Vent Size: 4" (Combustion Air Inlet) , 4" (Flue Exhaust Outlet)
  • Thermal Efficiency: 93%
  • Condensate Production (Gal./Hr.): 1.9
  • Entering Airflow (CFM) @ 70°F: 4585
  • Air Temperature Rise (°F): 49
  • Heat Throw (ft.): @ Max Mounting Height: 70
  • Maximum Mounting Height: 20ft
  • Heat Exchanger Type: Primary - Aluminized Steel, Secondary (Condensing) - Stainless Steel
  • Approx. Weight: 265 lbs
  • Dimensions (D x W x H): 34.83" x 42.53" x 31.31"

Warranty:
10 years for both heat exchangers, 2 years for parts
