HSB24 Hot Water (Hydronic) Unit Heater - 24,000 BTU Modine
HSB24 Hot Water (Hydronic) Unit Heater - 24,000 BTU
Brand: Modine
Part#: HSB24SB01SA
Model: HSB24
Usually ships: within 10-14 business days

Description

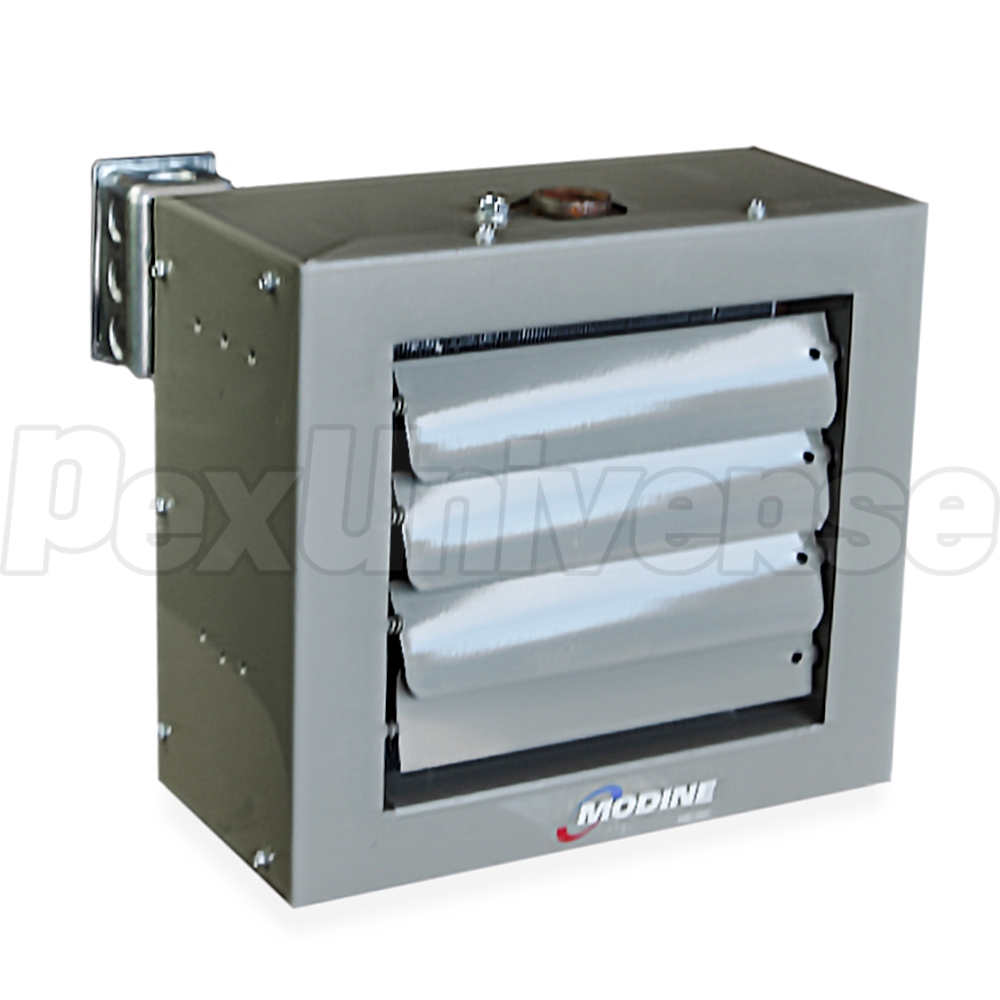

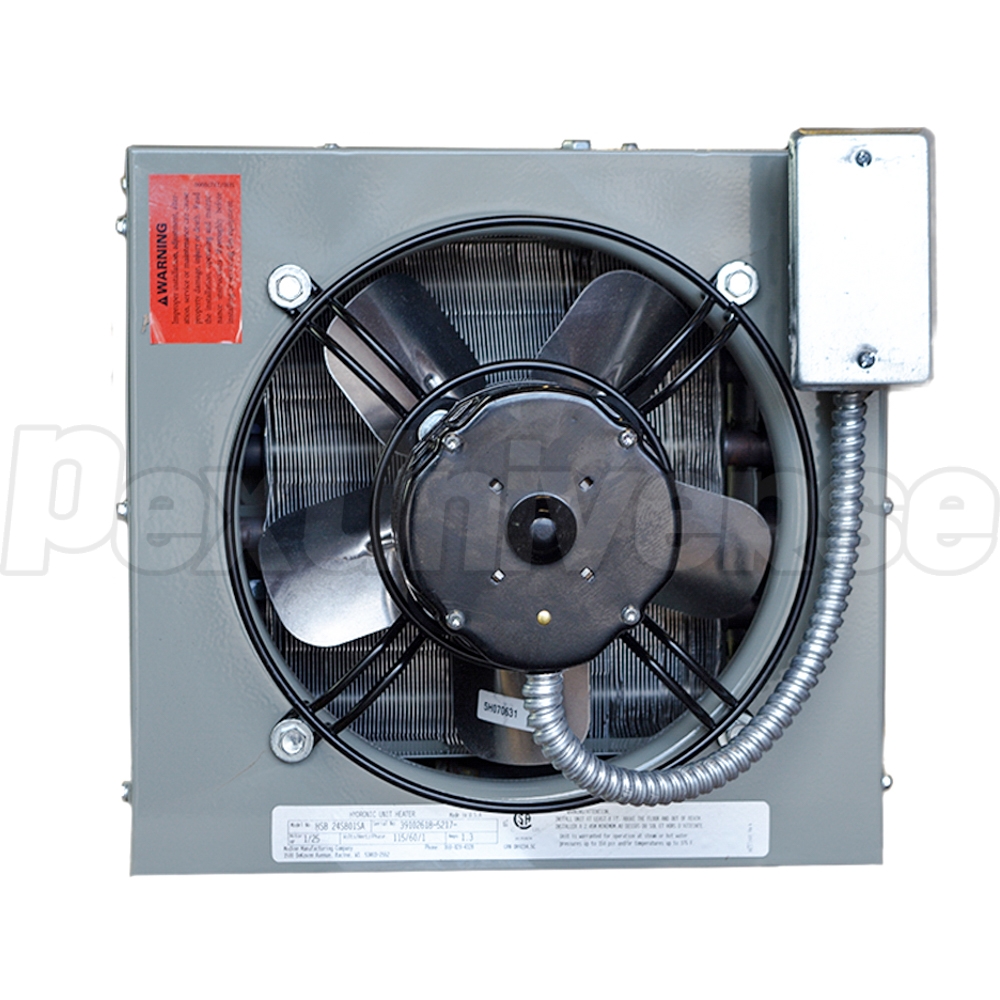

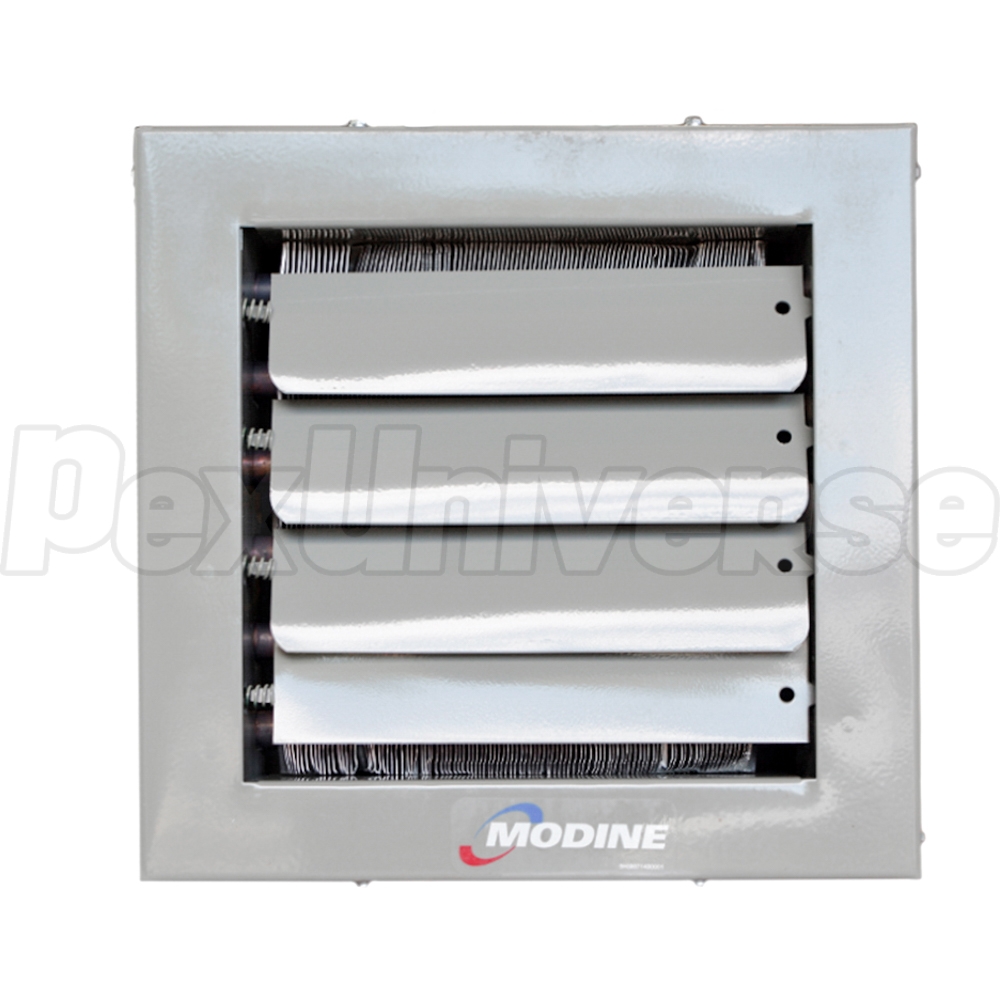

Modine HSB series are propeller (fan) type hot water unit heaters which utilize hot water from a boiler, indirect heater or other source. These heaters are a great solution for applications where gas or oil fuel use is impractical or avoided for safety reasons. HSB heaters have steel male threaded connections located on the top and bottom - allowing to rotate the unit 360° without changing the piping.

Technical Specifications:
  • BTU/Hr: 24,000 (Steam) / 16,200 (Hot Water)
  • Final Air Temperature (°F): 119 (Steam)/ 100 (Hot Water)
  • Heat Throw (ft.): @ Max Mounting Height: 18 (Steam) / 19 (Hot Water)
  • Maximum Mounting Height: 9ft (Steam)/ 10ft (Hot Water)
  • Approx. weight: 20 lbs
  • Dimensions (W x H x D): 12-3/4" x 11-1/2" x 6"(12-1/2" with standard motor)
