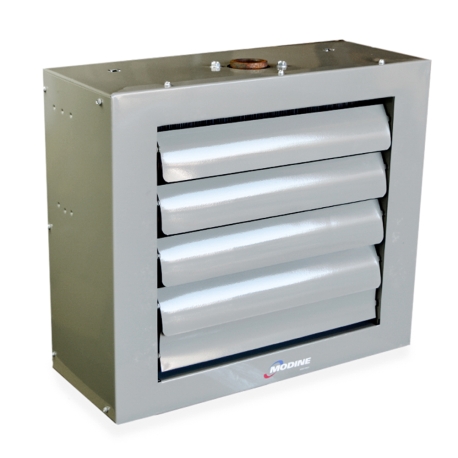

HSB193 Hot Water (Hydronic) Unit Heater - 193,000 BTU Modine
HSB193 Hot Water (Hydronic) Unit Heater - 193,000 BTU
Brand: Modine
Part#: HSB193SB01SA
Model: HSB193
Usually ships: within 10-14 business days

Description

Modine HSB series are propeller (fan) type hot water unit heaters which utilize hot water from a boiler, indirect heater or other source. These heaters are a great solution for applications where gas or oil fuel use is impractical or avoided for safety reasons. HSB heaters have steel male threaded connections located on the top and bottom - allowing to rotate the unit 360° without changing the piping.

Technical Specifications:
  • BTU/Hr: 193,000 (Steam) / 143,000 (Hot Water)
  • Final Air Temperature (°F): 121 (Steam)/105 (Hot Water)
  • Heat Throw (ft.): @ Max Mounting Height: 38 (Steam) / 41 (Hot Water)
  • Maximum Mounting Height: 18ft (Steam)/ 19ft (Hot Water)
  • Approx. weight: 98 lbs
  • Dimensions (W x H x D): 32-1/2" x 30-1/2" x 9-1/4" (18-3/4" with standard motor)
