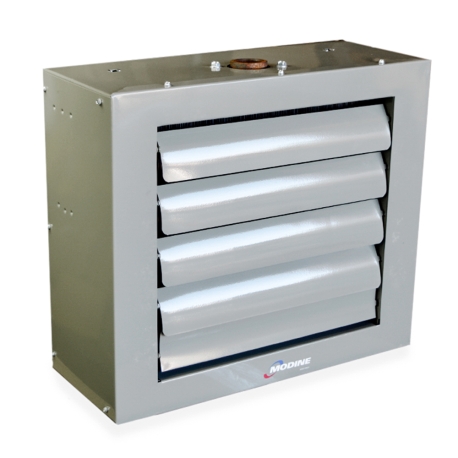

HSB108 Hot Water (Hydronic) Unit Heater - 108,000 BTU Modine
HSB108 Hot Water (Hydronic) Unit Heater - 108,000 BTU
Brand: Modine
Part#: HSB108SB01SA
Model: HSB108
Usually ships: within 10-14 business days

Description

Modine HSB series are propeller (fan) type hot water unit heaters which utilize hot water from a boiler, indirect heater or other source. These heaters are a great solution for applications where gas or oil fuel use is impractical or avoided for safety reasons. HSB heaters have steel male threaded connections located on the top and bottom - allowing to rotate the unit 360° without changing the piping.

Technical Specifications:
  • BTU/Hr: 108,000 (Steam) / 83,700 (Hot Water)
  • Final Air Temperature (°F): 109 (Steam)/ 98 (Hot Water)
  • Heat Throw (ft.): @ Max Mounting Height: 31 (Steam) / 33 (Hot Water)
  • Maximum Mounting Height: 17ft (Steam)/ 18ft (Hot Water)
  • Approx. weight: 74 lbs
  • Dimensions (W x H x D): 25-1/2" x 18-1/2" x 9-1/2" (17-1/2" with standard motor)
