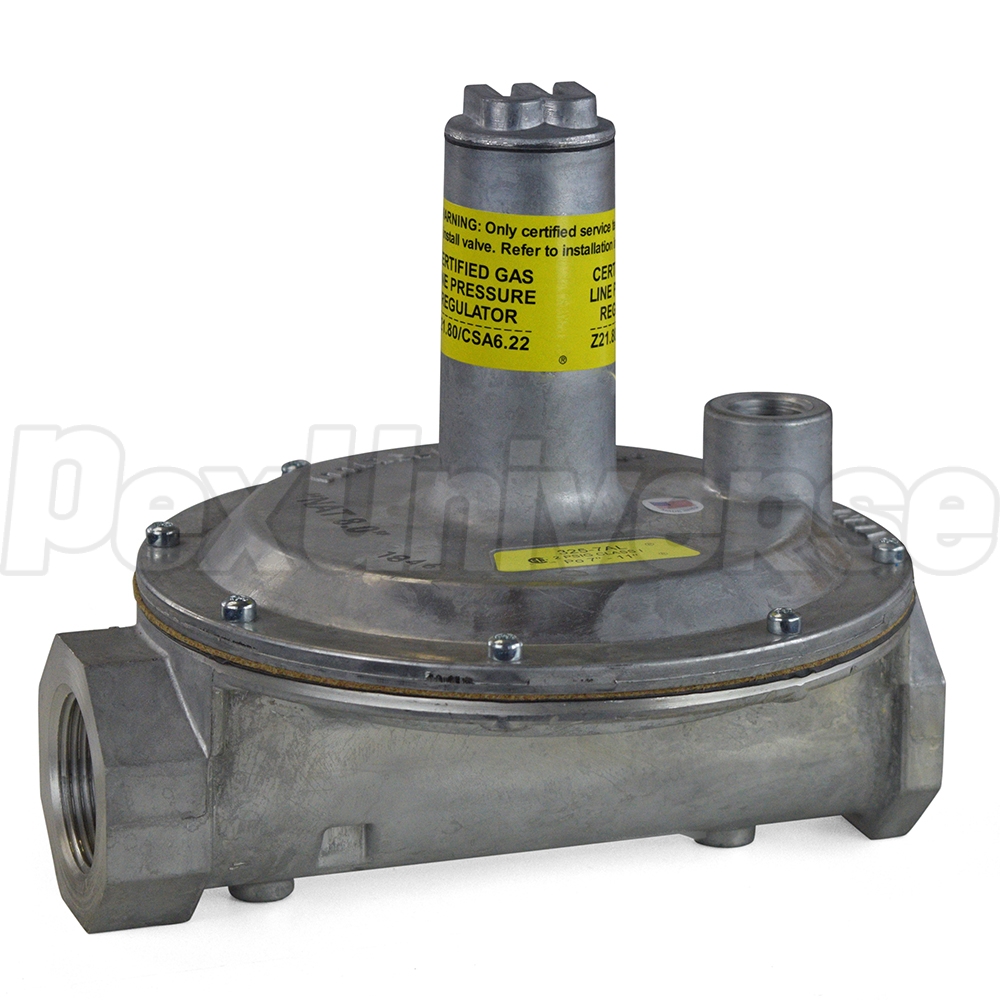

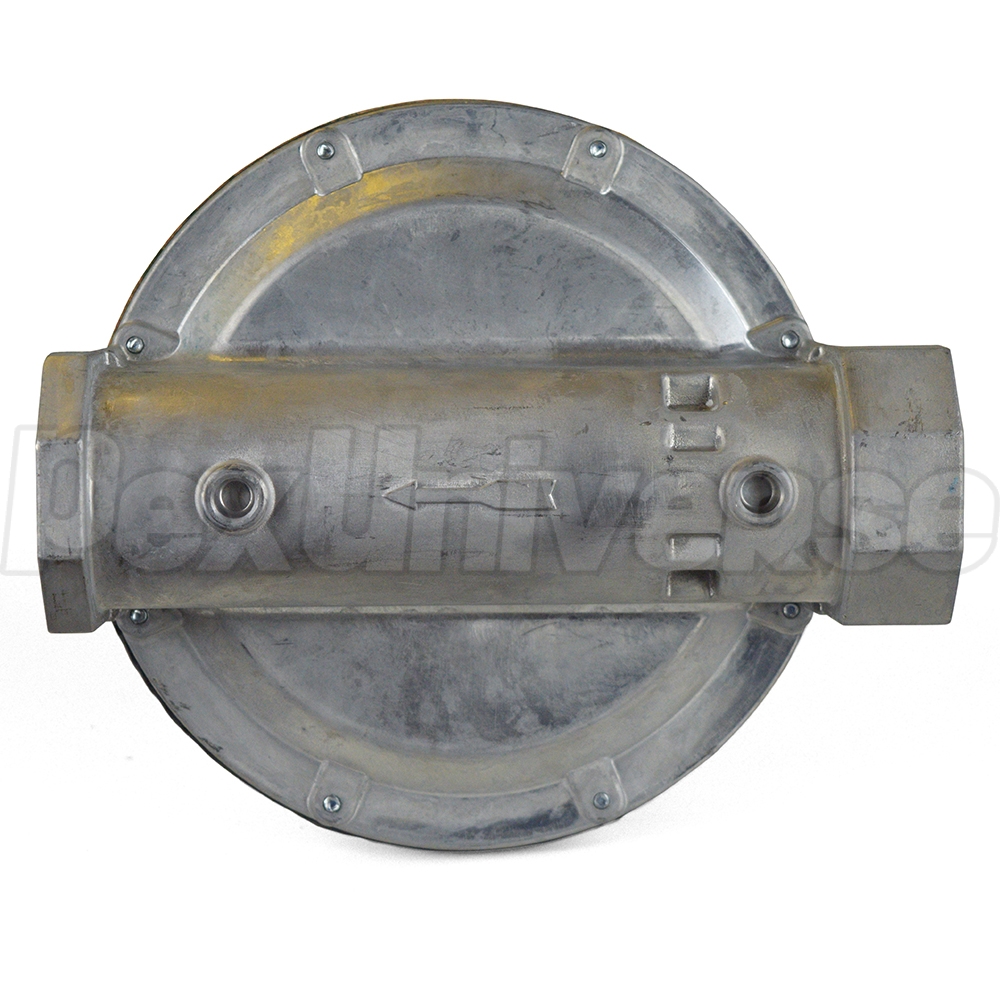

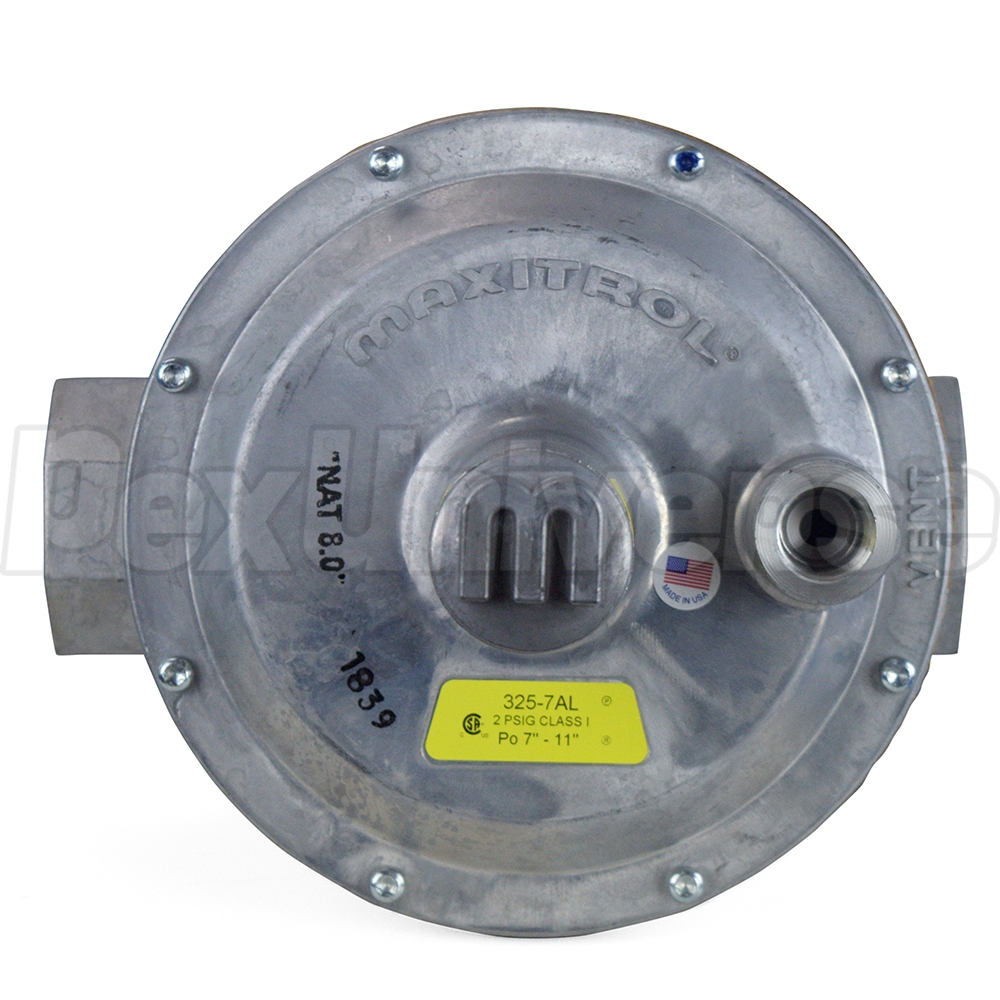

1-1/4" Gas Appliance & Line Pressure Regulator (325-7AL series)
Brand: Maxitrol
Part#: 325-7AL-1-1-4
made in usa
In Stock
Ship Pickup
Estimate delivery
Usually ships: within 1 business day
Pick Up available
$139.95 / each
$531.80 box of 4
($132.95 each)
Free Shipping on any qty
Add to Cart

Description

325-7AL series, Maxitrol 1-1/4" gas line pressure regulator.
NOTE1: This product does not include 12A49 vent limiting device, which is required when regulator is installed indoors and eliminates the need to run the vent line outside.
NOTE2: This product is intended for installation by a licensed gas professional.

Features:
  • Lever-acting design
  • Positive dead-end lockup
  • Precise control from full flow down to pilot flow
  • Suitable for natural (NG), manufactured, mixed gases, liquefied petroleum gases and LP gas-air mixtures
  • CSA certified & labeled
  • Complies with ANSI Z21.80/CSA 6.22 (standard for line pressure regulators) and ANSI Z21.18 (as appliance regulator)
  • For use with 2 psi piping systems such as CSST (corrugated stainless steel), semi-rigid copper tubing or black pipe
  • Made in the USA

Technical Specifications:
  • Inlet/Outlet Connection: 1-1/4" NPT
  • Rated Inlet Pressure: 2 psi (CSA Certified); 5 psi (w/ OPD); 10 psi (Maxitrol Rated)
  • Outlet Pressure Range: 7" - 11" w.c. (White Spring)
  • Factory-Set Pressure (w.c.): 8"
  • Emergency Exposure Limits: 65 psi (Inlet Side Only)
  • Capacity (Combined): 1,250,000 BTU/hr
  • Max Individual Load (Single Appliance): 1,250,000 BTU/hr
  • Operating Temperature Range (Ambient): -40 - 205°F
  • Vent Connection: 1/2" NPT
  • Housing material: Aluminum
  • Dimensions (L x H): 8" x 7.3"
