1-1/2" Gas Appliance Regulator (325-7A series)
Brand: Maxitrol
Part#: 325-7A-1-1-2
made in usa
In Stock
Ship Pickup
Estimate delivery
Usually ships: within 1 business day
Pick Up available
$132.95 / each
$507.80 box of 4
($126.95 each)
Free Shipping on any qty
Add to Cart

Description

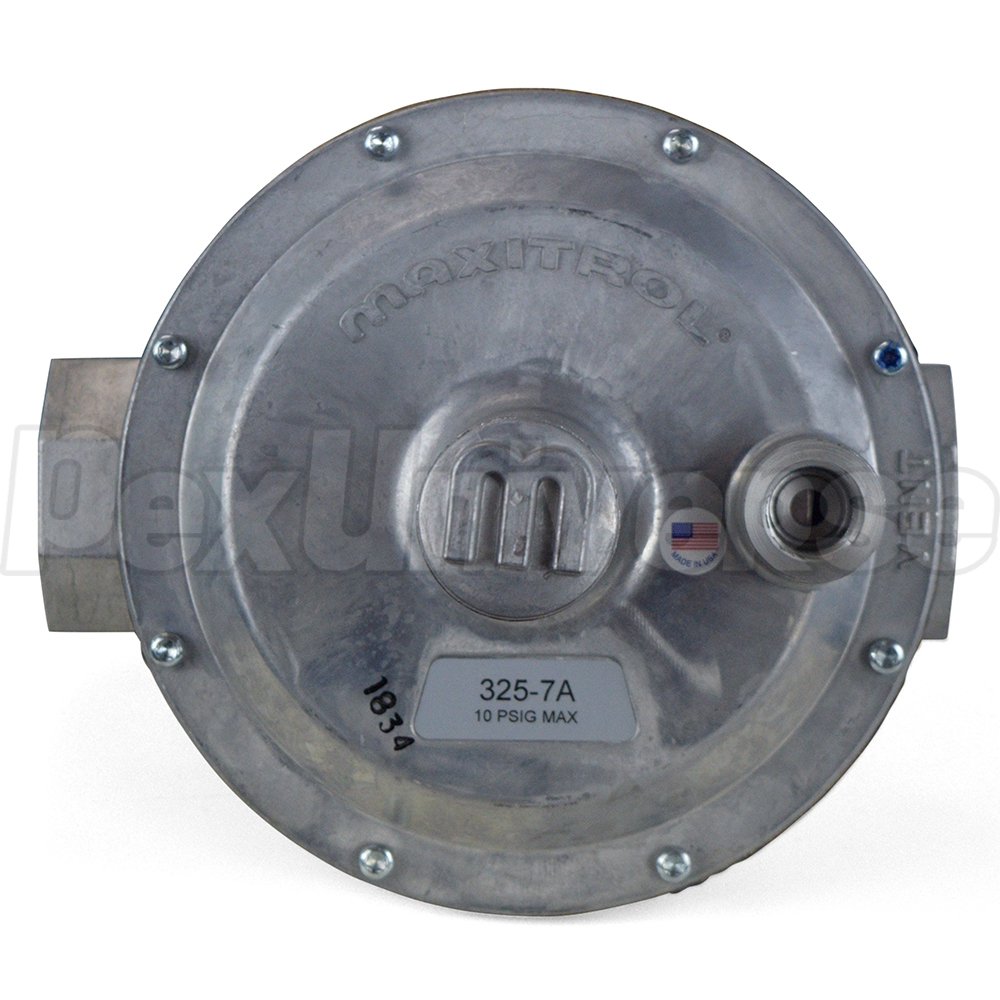

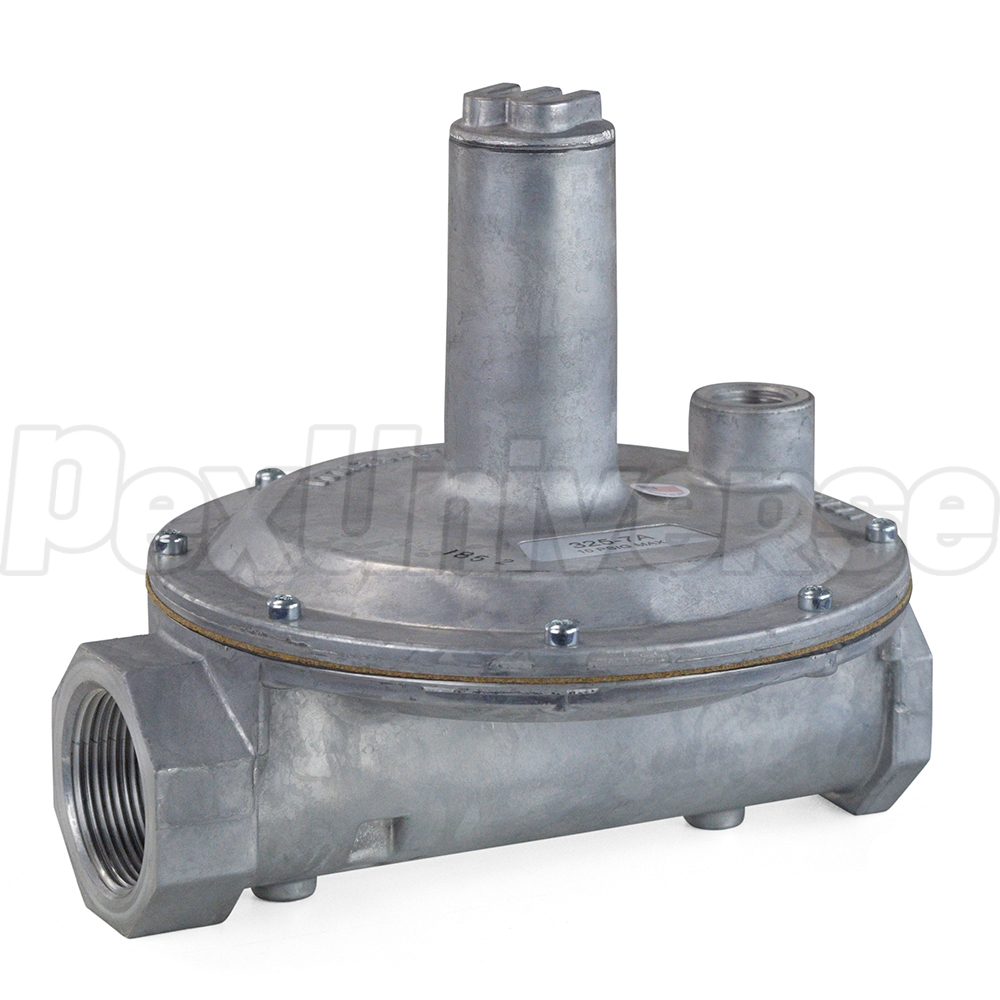

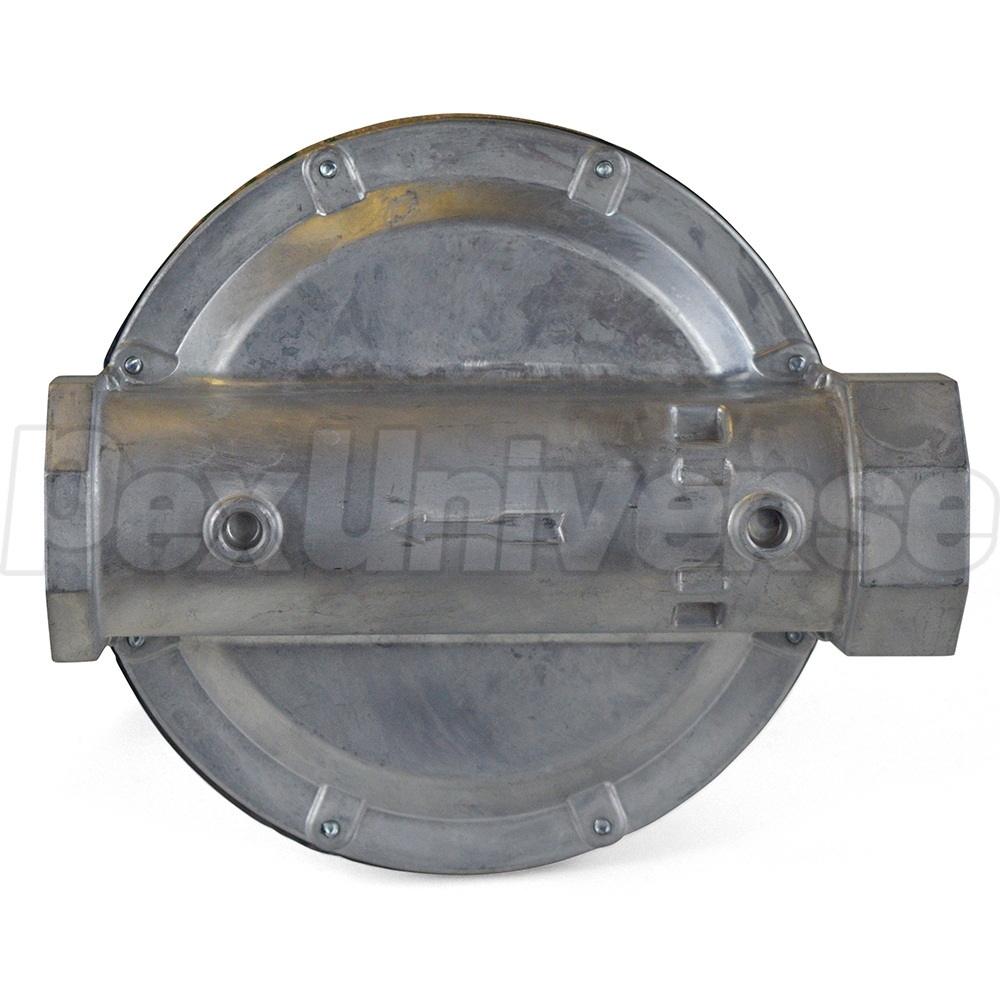

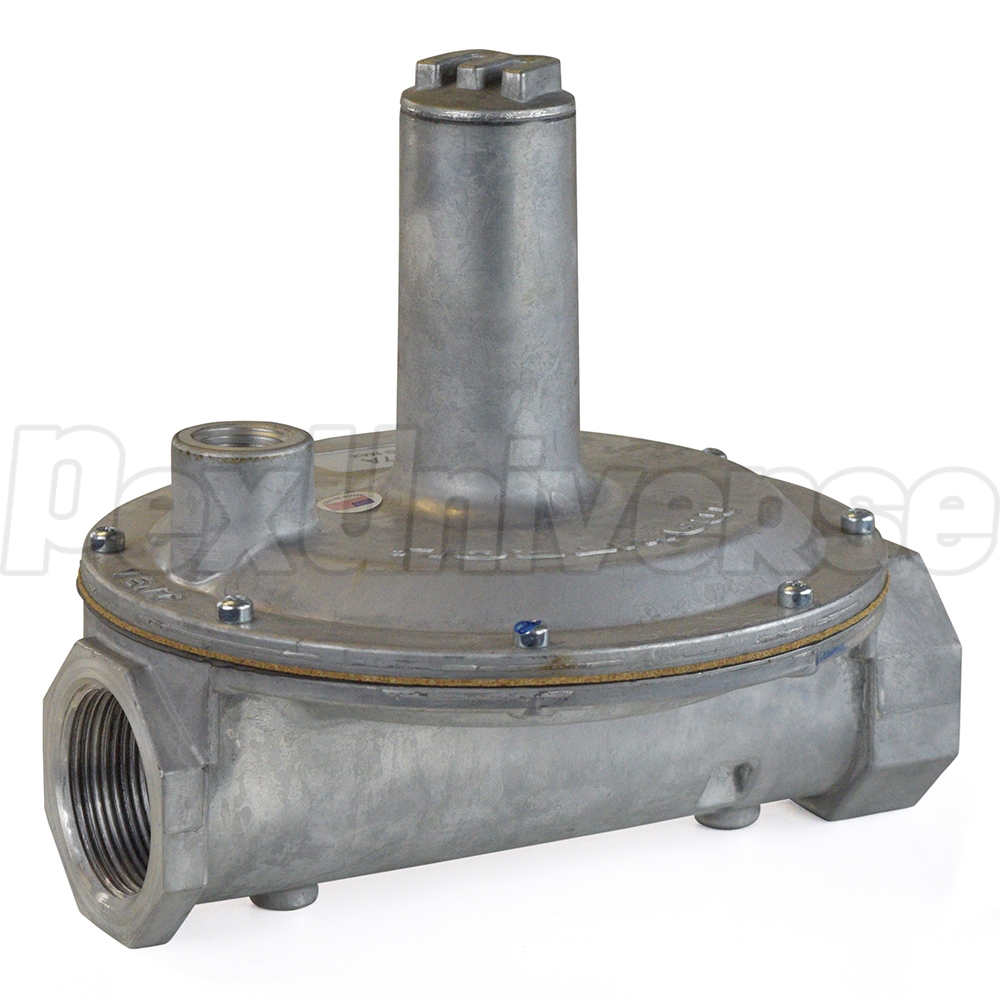

325-7A series, Maxitrol 1-1/2" gas appliance regulator.
NOTE1: This product does not include 12A49 vent limiting device, which is required when regulator is installed indoors and eliminates the need to run the vent line outside.
NOTE2: This product is intended for installation by a licensed gas professional.

Features:
  • Lever-acting design
  • Positive dead-end lockup
  • Precise control from full flow down to pilot flow
  • Suitable for natural (NG), manufactured, mixed gases, liquefied petroleum gases and LP gas-air mixtures
  • CSA certified & labeled
  • Complies with ANSI Z21.18 (standard for appliance regulators)
  • Made in the USA

Technical Specifications:
  • Inlet/Outlet Connection: 1-1/2" NPT
  • Rated Inlet Pressure (w/ Vent Limiter Installed): 5 psi (NG), 2 psi (LP)
  • Outlet Pressure Range: 7" - 11" w.c. (White Spring)
  • Factory-Set Pressure (w.c.): 7"
  • Emergency Exposure Limits: 65 psi (Inlet Side Only)
  • Capacity (Combined): 1,250,000 BTU/hr
  • Max Individual Load (Single Appliance): 1,250,000 BTU/hr
  • Operating Temperature Range (Ambient): -40 - 205°F
  • Vent Connection: 1/2" NPT
  • Housing material: Aluminum
  • Dimensions (L x H): 8" x 7.3"
