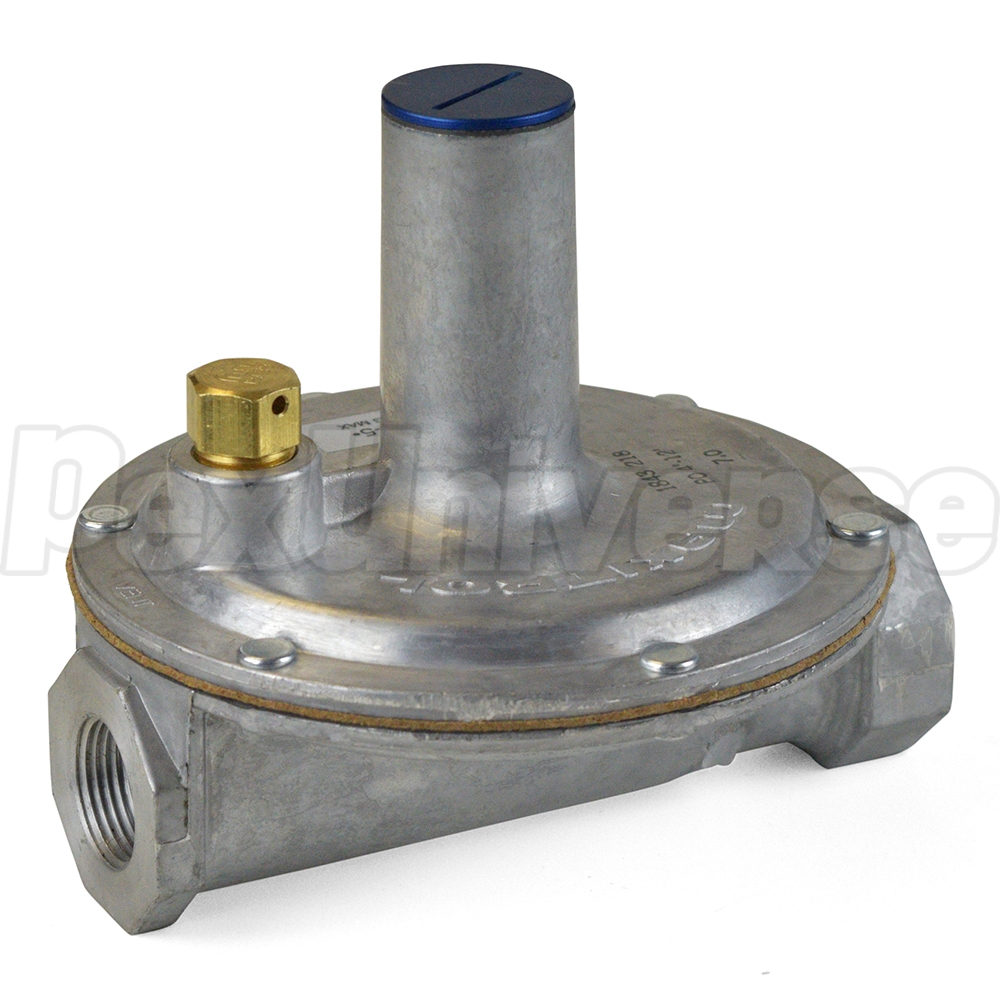

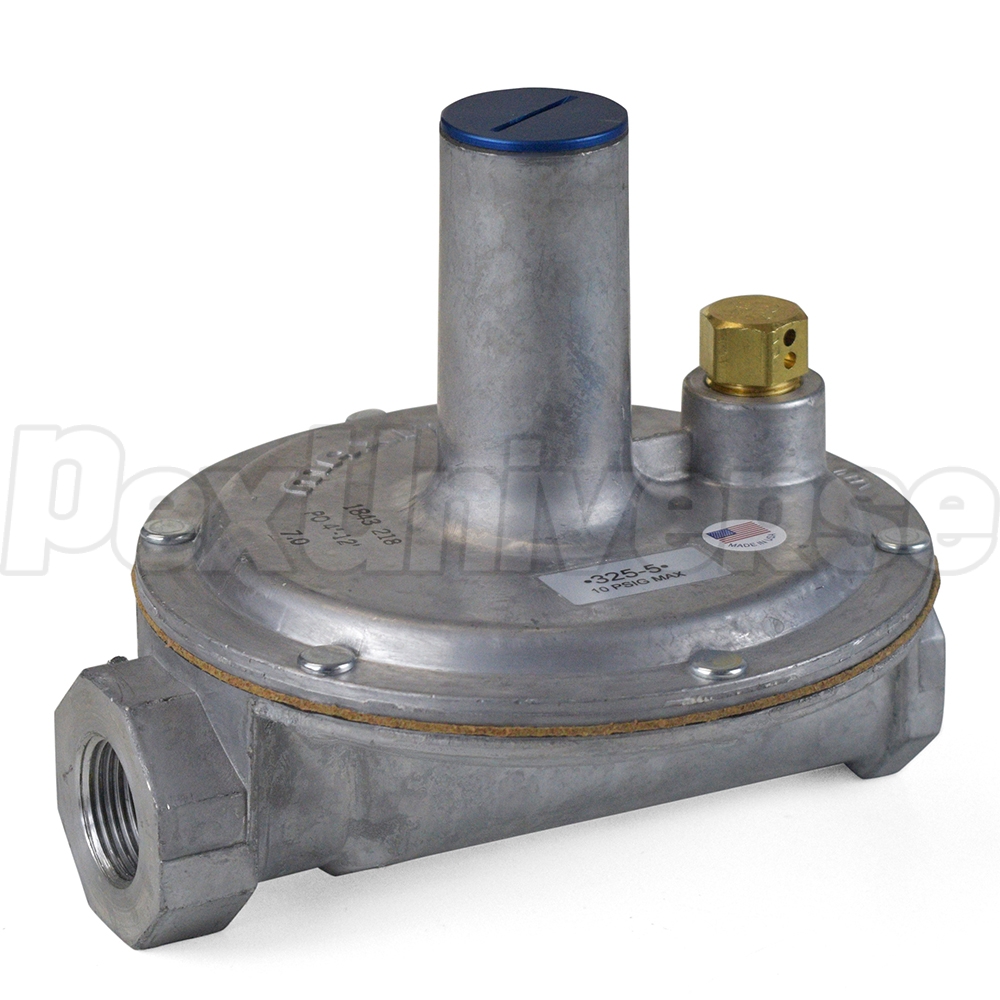

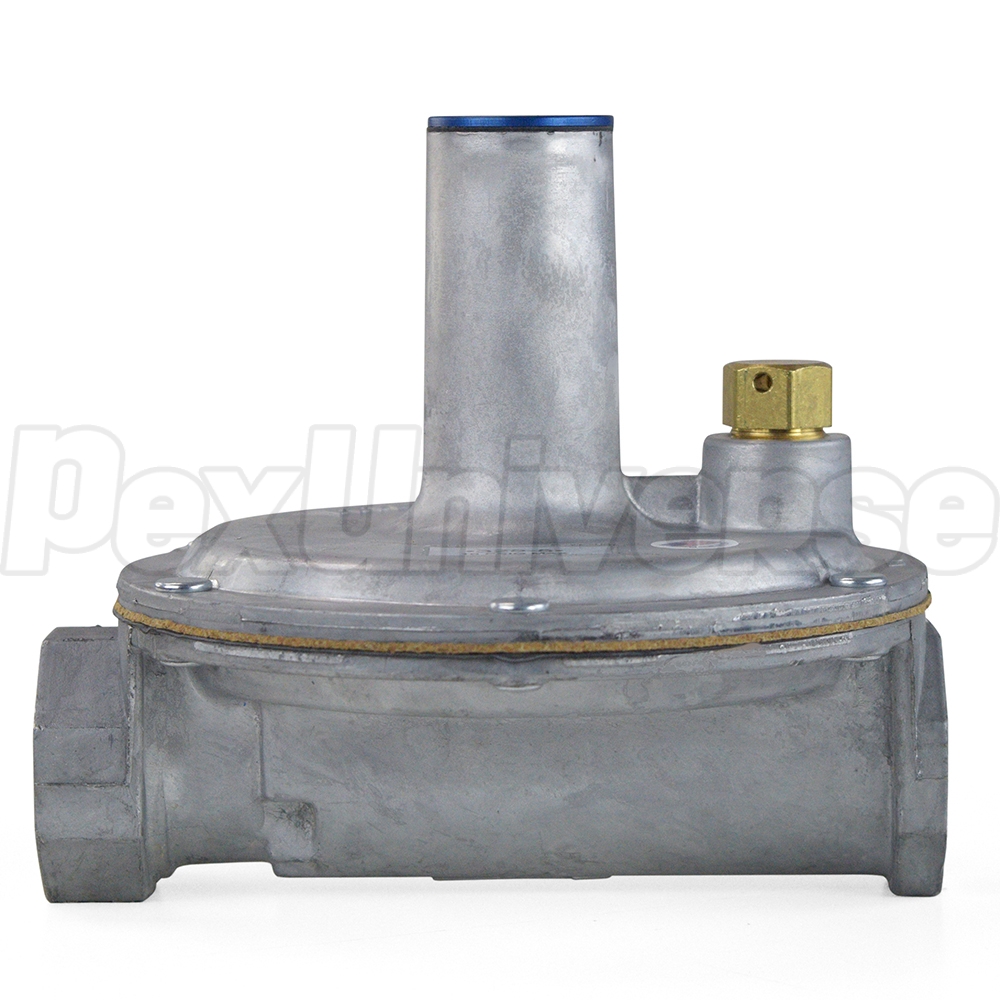

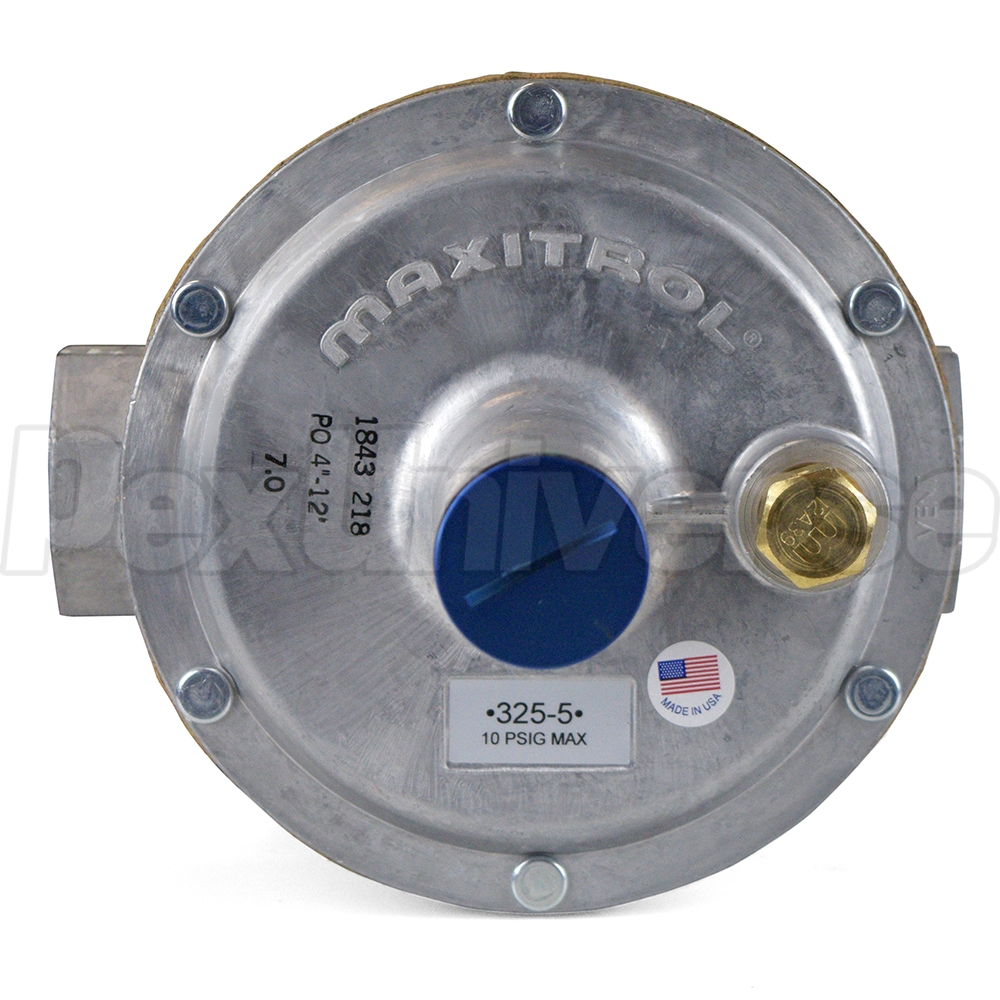

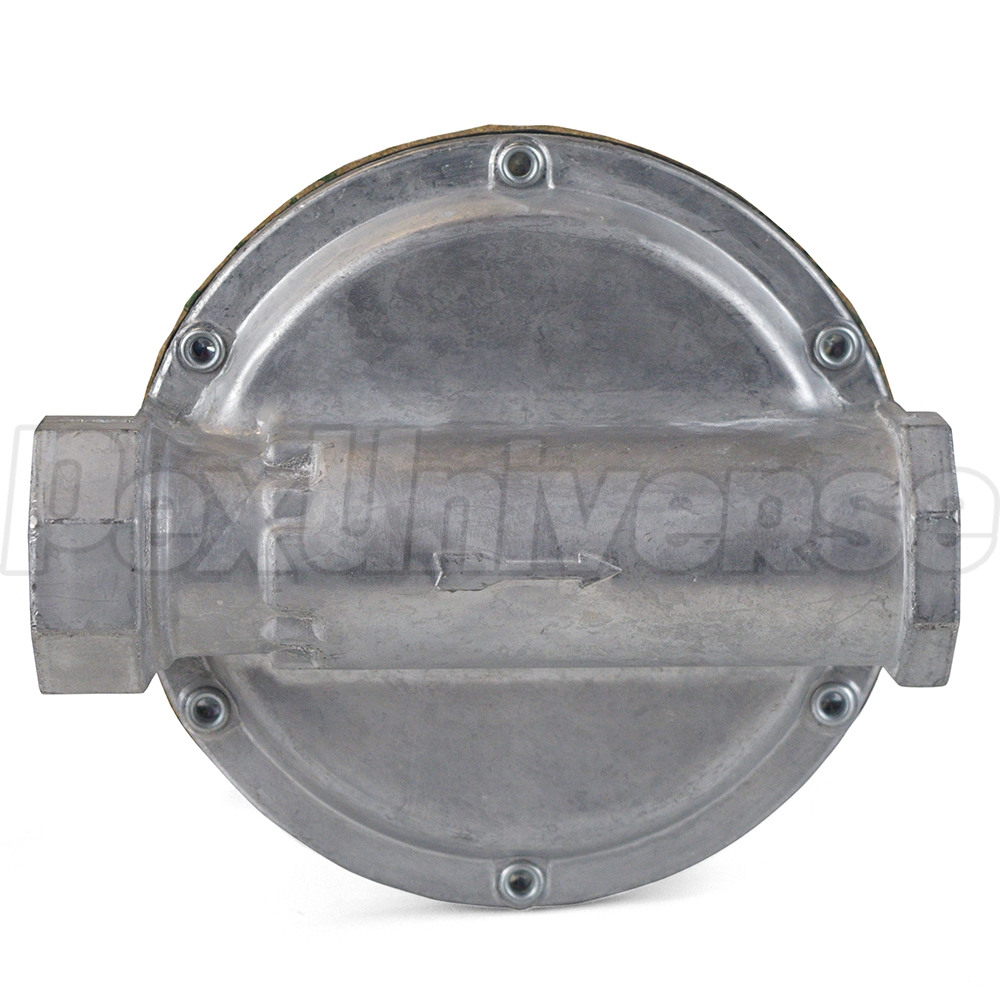

3/4" Gas Appliance Regulator w/ Vent Limiter (325-5V series)
Brand: Maxitrol
Part#: 325-5V-3-4
made in usa
In Stock
Ship Pickup
Estimate delivery
Usually ships: within 1 business day
$53.95 / each
$307.50 box of 6 + Free Shipping
($51.25 each)
Orders over $99 ship free
325-5V series (replaces older 325-5 series), Maxitrol 3/4" gas appliance regulator with factory-installed 12A39 vent limiter.
NOTE: This product is intended for installation by a licensed gas professional.

Features:
  • Includes 12A39 (3/8" NPT) Certified Vent Limiter
  • Lever-acting design
  • Positive dead-end lockup
  • Precise control from full flow down to pilot flow
  • Suitable for natural (NG), manufactured, mixed gases, liquefied petroleum gases and LP gas-air mixtures
  • CSA certified and labeled (both regulator and vent limiting device)
  • Complies with ANSI Z21.18 (standard for appliance regulators)
  • Made in the USA

Technical Specifications:
  • Inlet/Outlet Connection: 3/4" NPT
  • Rated Inlet Pressure (CSA Certified): 5 psi (NG), 2 psi (LP)
  • Outlet Pressure Range: 7" - 11" w.c. (White Spring)
  • Factory-Set Pressure (w.c.): 7"
  • Emergency Exposure Limits: 65 psi (Inlet Side Only)
  • Capacity (Combined): 325,000 BTU/hr
  • Max Individual Load (Single Appliance): 325,000 BTU/hr
  • Operating Temperature Range (Ambient): -40 - 205°F
  • Vent Connection: 3/8" NPT
  • Housing material: Aluminum
  • Dimensions (L x H): 5.9" x 5.3"
