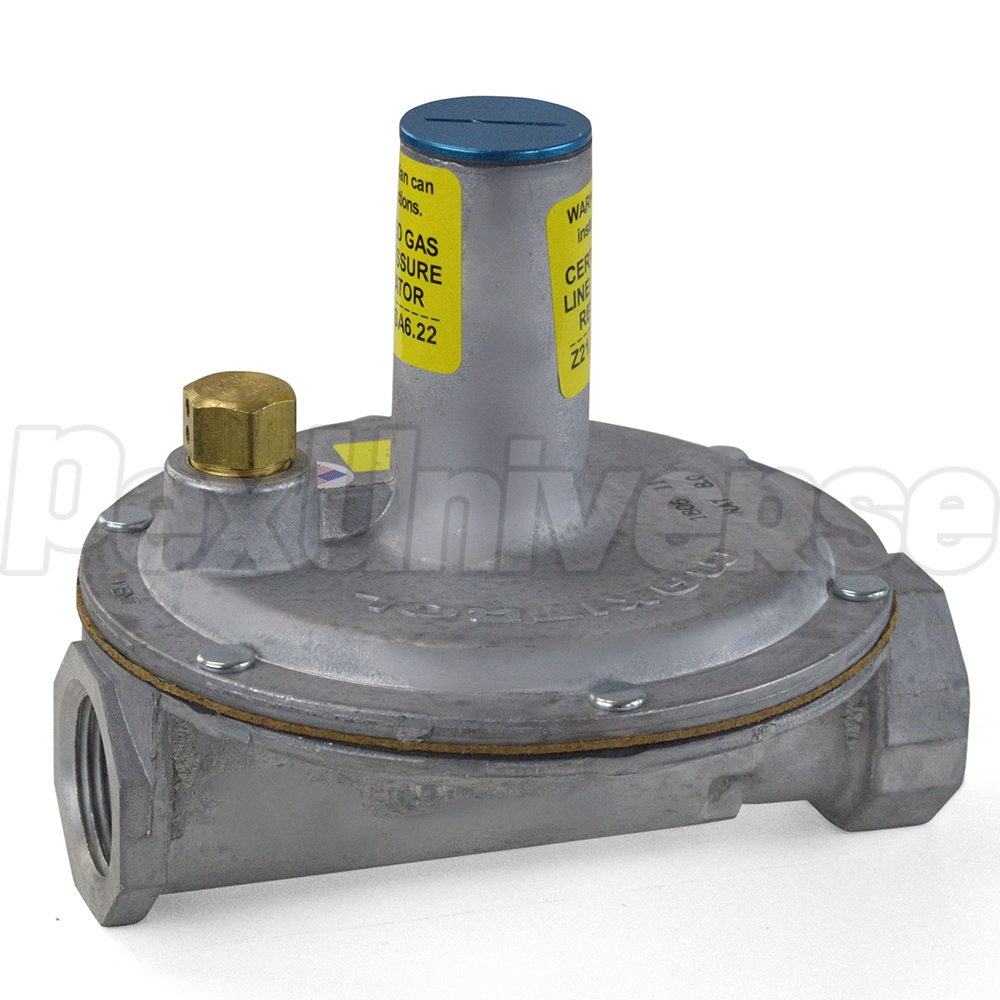

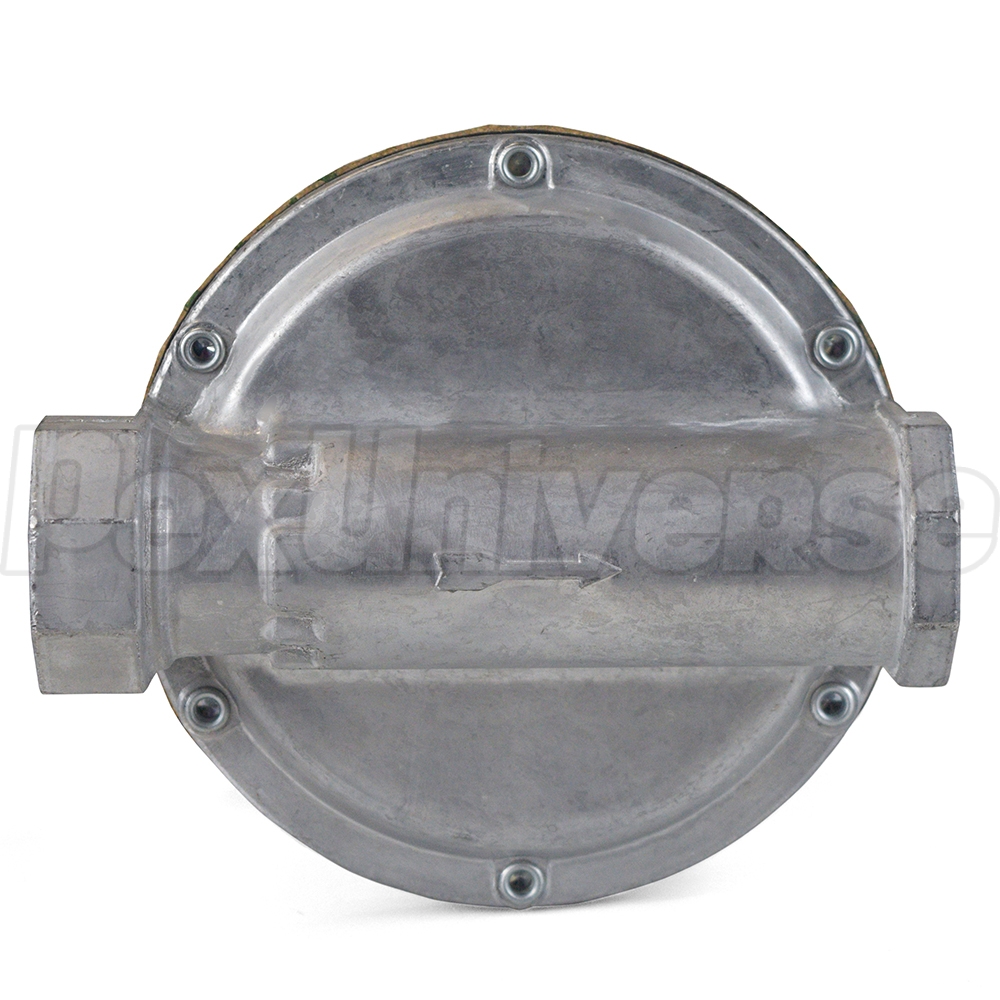

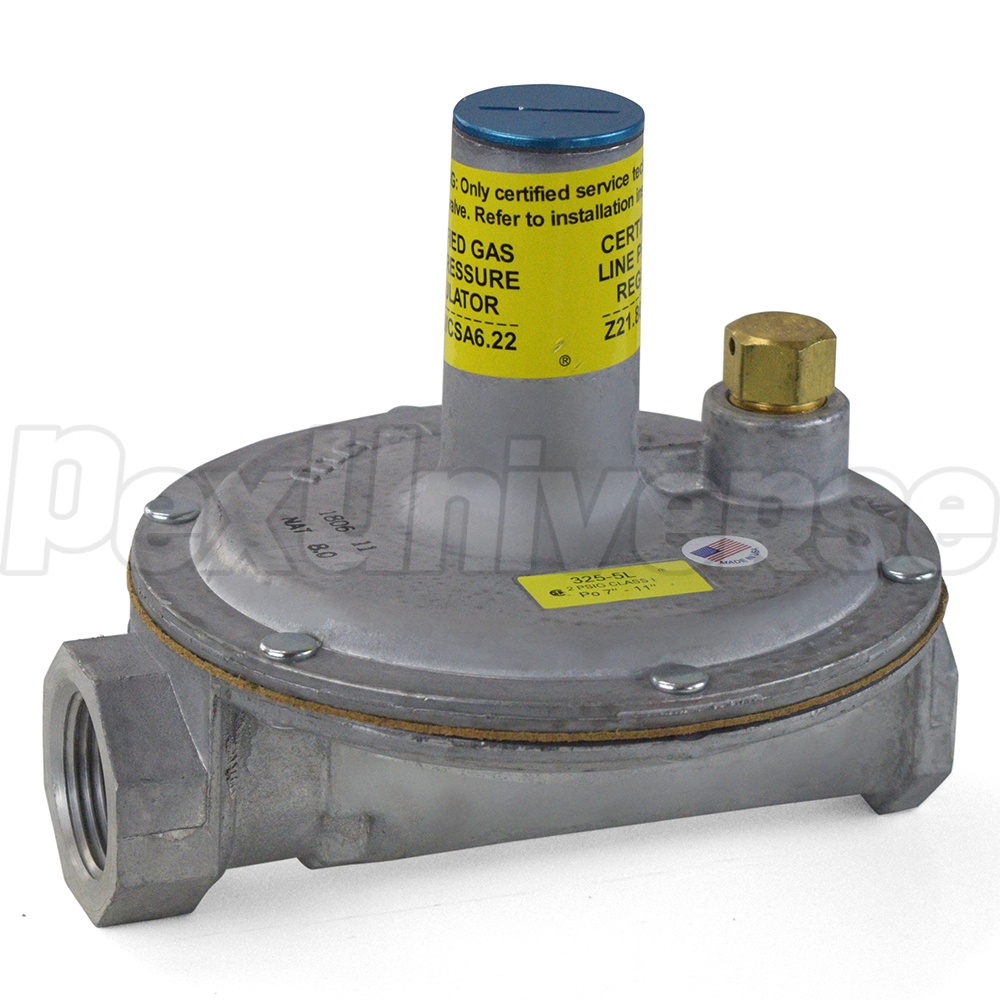

Name: 1" Gas Appliance & Line Pressure Regulator w/ Vent Limiter (325-5LV series)
Brand: Maxitrol
SKU: 325-5LV-1
Price: 52.25 USD
Availability: InStock
Rating: 5.00 (8 reviews)

Array
(
    [total] => 0.027292013168335
    [t1 - t2] => 0.010099172592163
    [t2 - t3] => 0.008760929107666
    [t3 - t4] => 2.1934509277344E-5
    [t4 - t5] => 5.4121017456055E-5
    [t5 - t6] => 2.7894973754883E-5
    [t6 - t7] => 0.0083279609680176
)

1" Gas Appliance & Line Pressure Regulator w/ Vent Limiter (325-5LV series) Maxitrol

1" Gas Appliance & Line Pressure Regulator w/ Vent Limiter (325-5LV series)

Brand: Maxitrol

Part#: 325-5LV-1

In Stock

(Check qty)

(8)

Estimate delivery

Usually ships: within 1 business day

Pick Up available (Save ${{ (Math.round(Math.abs(pickupPrice) * 100) / 100).toFixed(2) }})

Pick Up ready by {{ pickupBy }}

Usually ready: within 1 hour

Description

325-5LV series (replaces older 325-5L series), Maxitrol 1" gas line pressure regulator with factory-installed 12A39 vent limiter.
NOTE: This product is intended for installation by a licensed gas professional.

Features:

Includes 12A39 (3/8" NPT) Certified Vent Limiter
Lever-acting design
Positive dead-end lockup
Precise control from full flow down to pilot flow
Suitable for natural (NG), manufactured, mixed gases, liquefied petroleum gases and LP gas-air mixtures
CSA certified and labeled (both regulator and vent limiting device)
Complies with ANSI Z21.80/CSA 6.22 (standard for line pressure regulators) and ANSI Z21.18 (as appliance regulator)
Made in the USA

Technical Specifications:

Inlet/Outlet Connection: 1" NPT
Rated Inlet Pressure: 2 psi (CSA Certified); 5 psi (w/ OPD); 10 psi (Maxitrol Rated)
Outlet Pressure Range: 7" - 11" w.c. (White Spring)
Factory-Set Pressure (w.c.): 8"
Emergency Exposure Limits: 65 psi (Inlet Side Only)
Capacity (Combined): 600,000 BTU/hr
Max Individual Load (Single Appliance): 425,000 BTU/hr
Operating Temperature Range (Ambient): -40 - 205°F
Vent Connection: 3/8" NPT
Housing material: Aluminum
Dimensions (L x H): 5.9" x 5.3"
