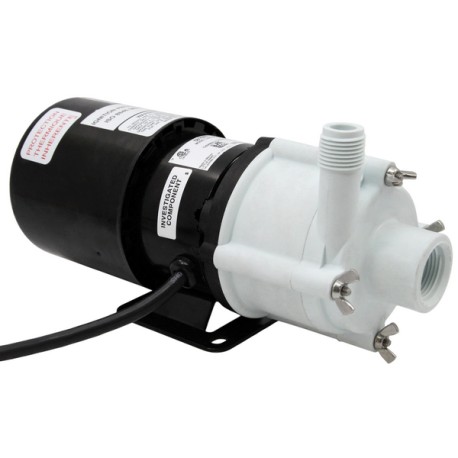

Little Giant 3-MD-SC Magnetic Drive Pump for Semi-Corrosive, 1/12 HP, 115V

3-MD-SC Magnetic Drive Pump for Semi-Corrosive, 1/12 HP, 115V

Brand: Little Giant
Part#: 581503
Model: 3-MD-SC
This product has been discontinued. No direct replacement is available at this time.

Description

Little Giant 3-MD-SC (581503) 1/12HP Magnetic Drive Pump for semi-corrosive chemicals and solutions. Designed for in-line, non-submersed use.

Little Giant MD-SC Magnetic Drive Pumps feature 6ft power cord with 3-prong plug, leakproof, seal-less magnetic drives, 99.5% pure alumina ceramic shaft and thrust washers. Spindle shaft is supported at both ends to prevent impeller damage during start-up and stop of pump. For excellent chemical resistance, volute, magnet housing and impeller of the Little Giant Magnetic Drive Pump are glass-filled polypropylene.

The Little Giant 3-MD-SC has 3/4" FNPT Intake and 1/2" MNPT Discharge.


Features:
  • Specific Gravity up to 1.1'
  • Thermally protected, open, fan-cooled motor
  • 6' power cord with 3-prong plug
  • Sleeve bearings
  • Ambient Air Temperature up to 77F
  • Fluid Temperature up to 150F.

Technical Specifications:
  • Horsepower: 1/12HP
  • Flow: 750 @ 1' of Head
  • Cord Length: 6'
  • Shut Off Heat: 21.9'
  • Voltage 115V
  • Intake: 3/4" FNPT
  • Discharge: 1/2" MNPT
  • Hertz: 50/60Hz
  • Watts: 190W
  • Weight: 8.5 lbs
  • Height: 5"
  • Width: 4"
  • Length: 9.8"
  • Certification: UR/C-CSA.
