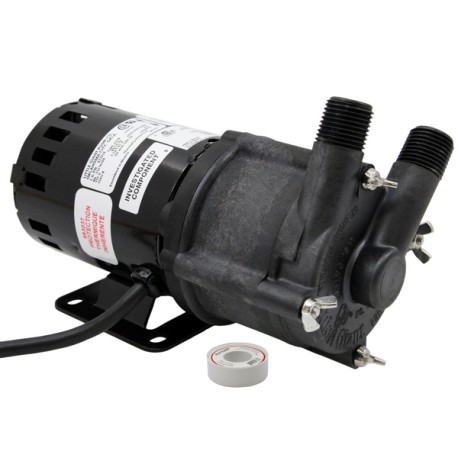

Little Giant 3-MD-MT-HC Magnetic Drive Pump for Highly Corrosive, 1/25 HP, 115V

3-MD-MT-HC Magnetic Drive Pump for Highly Corrosive, 1/25 HP, 115V

Brand: Little Giant
Part#: 578603
Model: 3-MD-MT-HC
This product has been discontinued. No direct replacement is available at this time.

Description

Little Giant 3-MD-MT-HC (578603) 1/25HP Magnetic Drive Pump for highly corrosive chemicals and solutions features polyphenylene sulfide (e.g. Ryton), Viton, carbon and ceramic parts. Designed for in-line, non-submersed use.

The Little Giant 2-MD-HC has 6ft power cord with 3-Prong Plug, leakproof, seal-less magnetic drives, 99.5% pure alumina ceramic shaft and thrust washers for excellent wear and trouble-free service. Features 1/2" FNPT Intake and 1/2" MNPT Discharge. Thermally protected open fan-cooled motor has ball bearings.


Features:
  • Run-dry capability up to 8 hours
  • Specific Gravity up to 1.1
  • Thermally protected, open, fan-cooled motor
  • 6' power cord with 3-prong plug
  • Sleeve bearings
  • Ambient Air Temperature up to 77F
  • Fluid Temperature up to 200F.

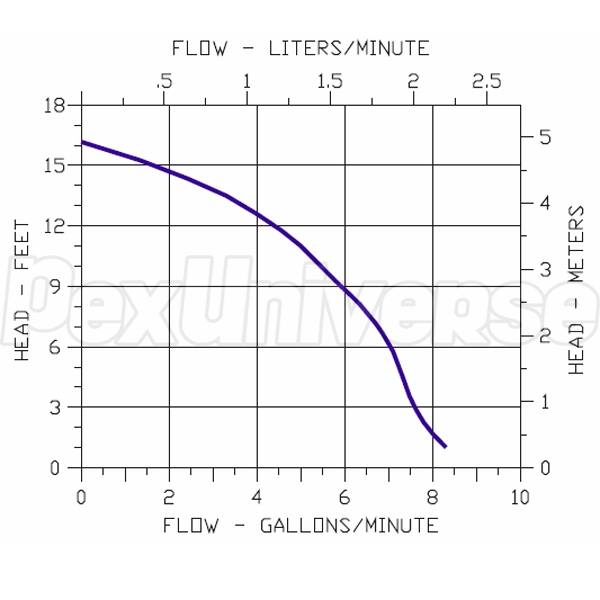

Technical Specifications:
  • Horsepower: 1/25HP
  • Flow: 500 @ 1' of Head
  • Cord Length: 6'
  • Shut Off Head: 16.2'
  • Voltage: 115V
  • Intake: 1/2" FNPT
  • Discharge: 1/2" MNPT
  • Hertz: 50/60Hz
  • Watts: 94W
  • Weight: 6.5 lbs
  • Height: 5.5"
  • Width: 3.9"
  • Length: 7.9"
  • Certification: UR/C-CSA.

Warranty:
1 year manufacturer's warranty.
