Little Giant 10EC-CIA-SFS Automatic Sump/Effluent Pump w/ Vertical Float Switch and 20' cord, 1/2 HP, 115V

10EC-CIA-SFS Automatic Sump/Effluent Pump w/ Vertical Float Switch and 20' cord, 1/2 HP, 115V

Brand: Little Giant
Part#: 510802
Model: 10EC-CIA-SFS
This product has been discontinued. No direct replacement is available at this time.

Description

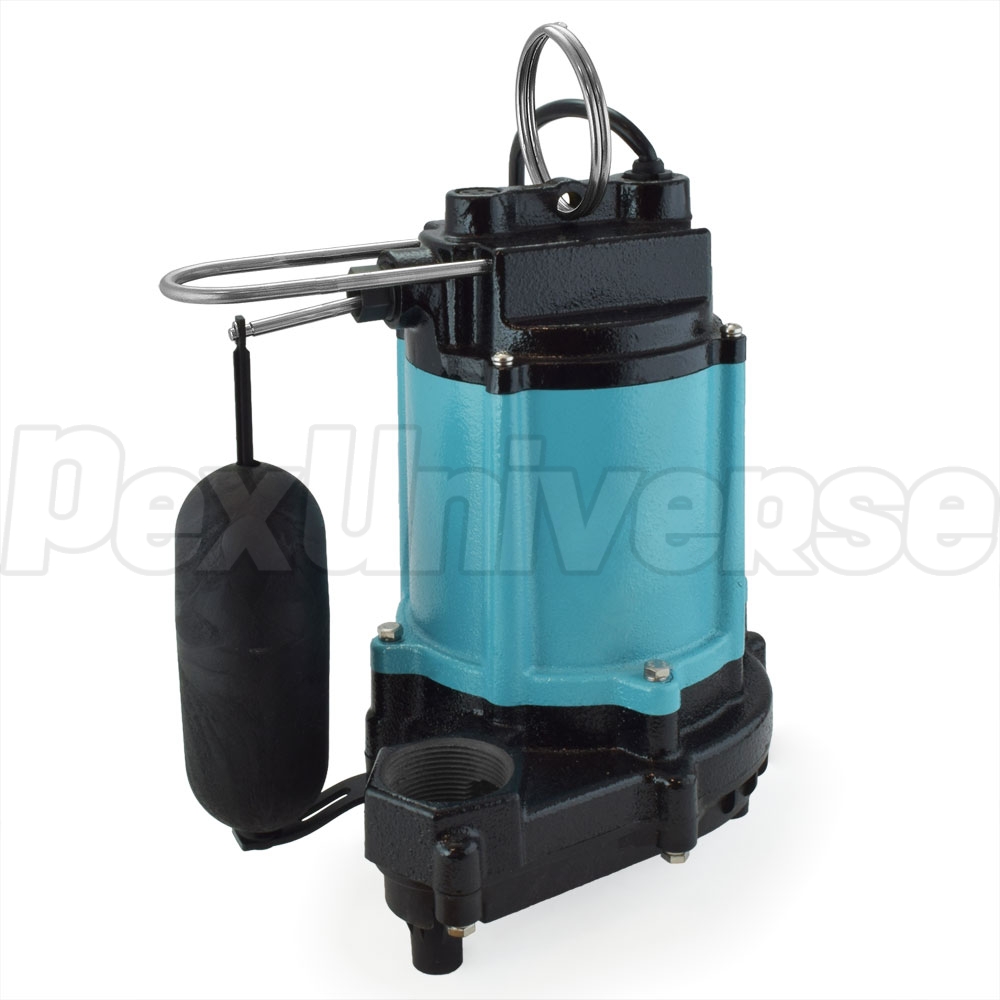

Little Giant 10EC-CIA-SFS (510802) is a 1/2HP Automatic Submersible Sump Pump with a 20ft power cord and an integral snap action float switch.

The Little Giant 10EC-CIA-SFS series effluent pump for use in basins or lift stations, and is suitable for pumping sewage, effluent, wastewater, and other non-explosive, non-corrosive liquids with up to 1/2" spherical solids.

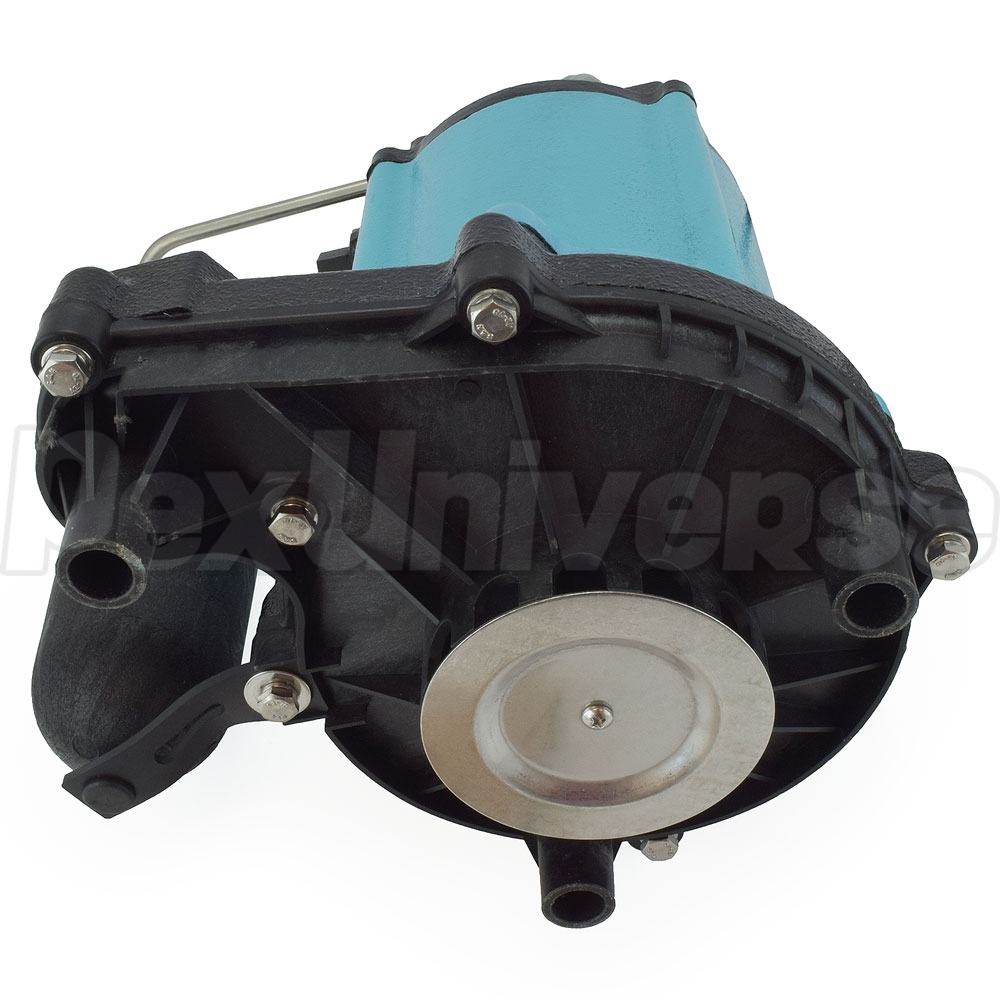

The Little Giant 510802 pump has a 1-1/2" FNPT discharge and an intake screen for easy cleaning and protection of impeller against clogging. Other features include epoxy-coated cast iron housing, st. steel screws and other non-corrosive components to insure longer life of the pump.


Features:
  • 510802
  • Heavy-duty cast iron construction
  • Permanent Split Capacitor (PSC)
  • Designed for continuous duty
  • Energy-saving low amp draw
  • Cooler running motor
  • 1-1/2" FNPT (38 mm) discharge
  • Handles solids up to 1/2" (12.7 mm) diameter
  • 140°F (60°C) liquid temperature rating
  • cCSAus listed.

Technical Specifications:
  • Horsepower: 1/2HP
  • Switch Type/Operations: Integral Snap-Action Float
  • On Level: 8" - 11" (20.3 cm - 27.9 cm)
  • Off Level: 2" - 5" (5.1 cm - 12.7 cm)
  • Shut-Off Head: 36'

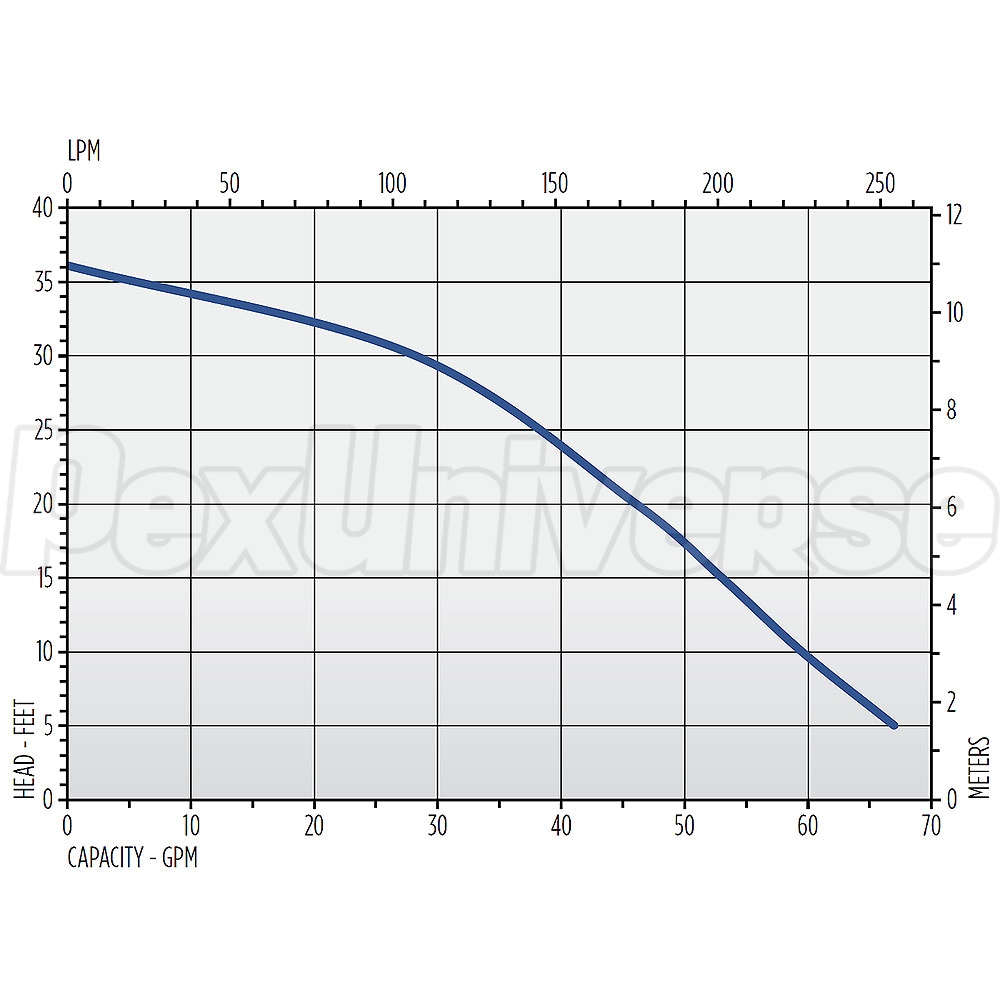

  • Performance (GPM): 67 @ 5', 57 @ 10', 52 @ 15', 47 @ 20', 28 @ 30'
  • Pressure: 15.6 PSI
  • Voltage: 115V
  • Amperage: 8A
  • Power: 850 Watts

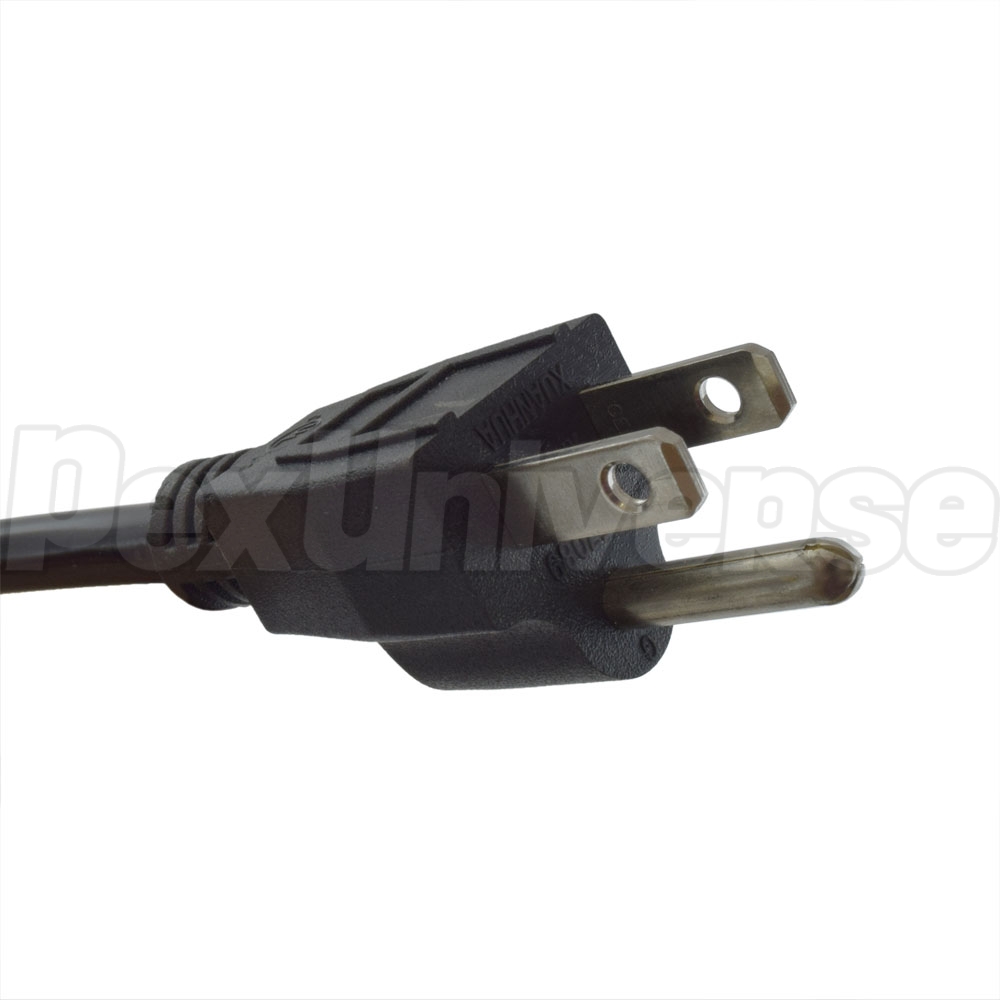

  • Cord Length: 20'
  • Weight: 30 lbs (13.6 kg).

Warranty:
2 years manufacturer's warranty.
