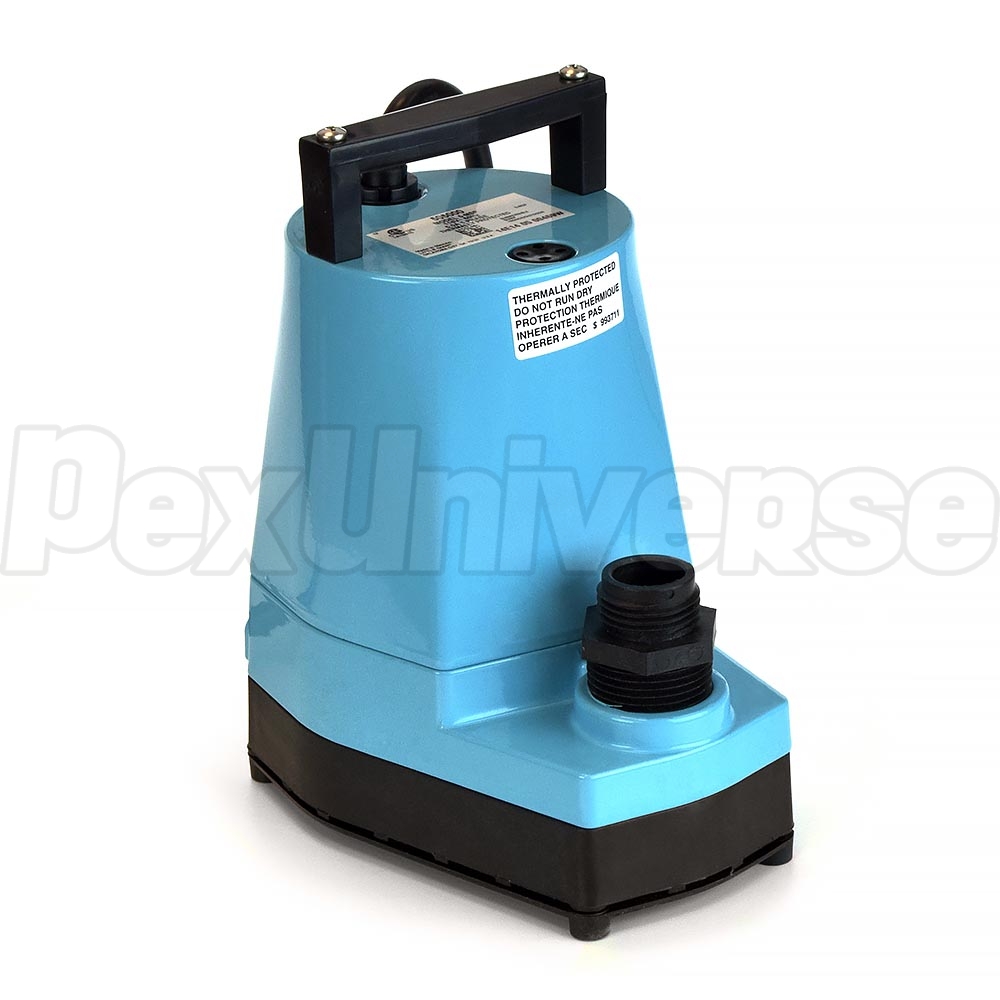

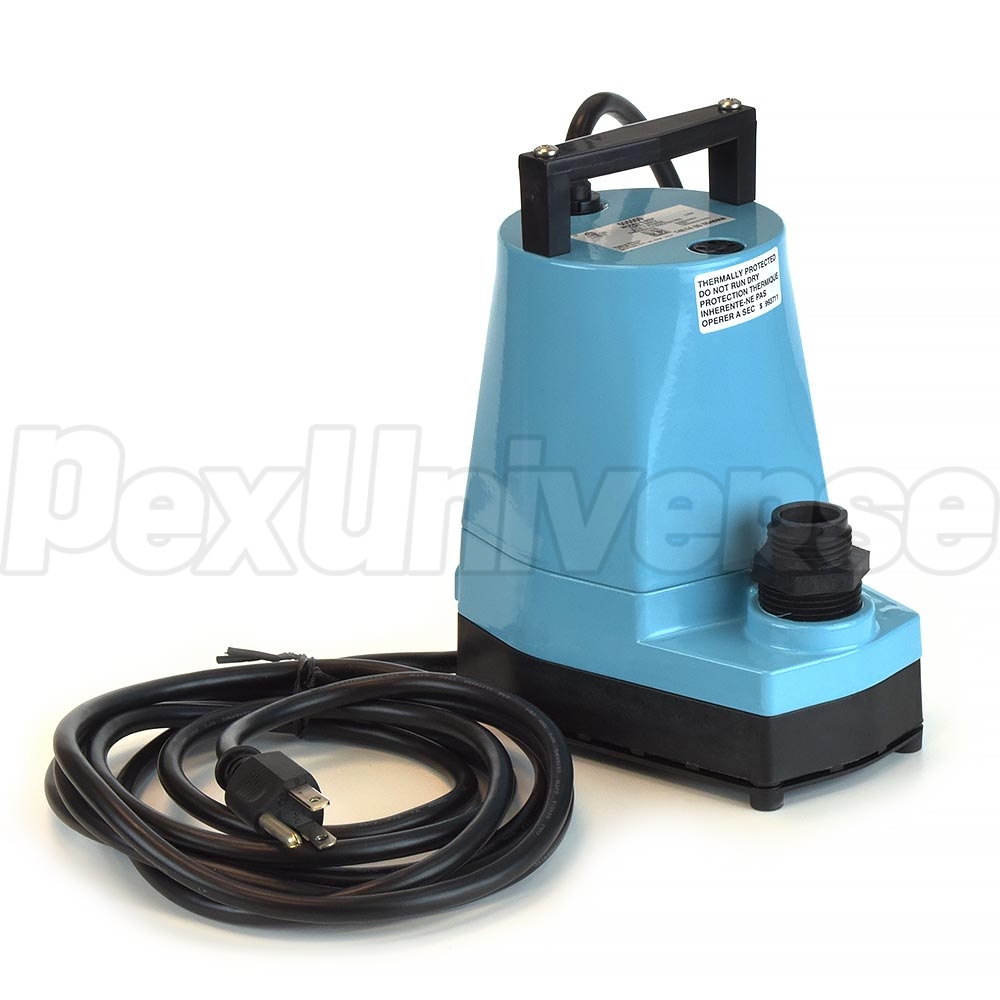

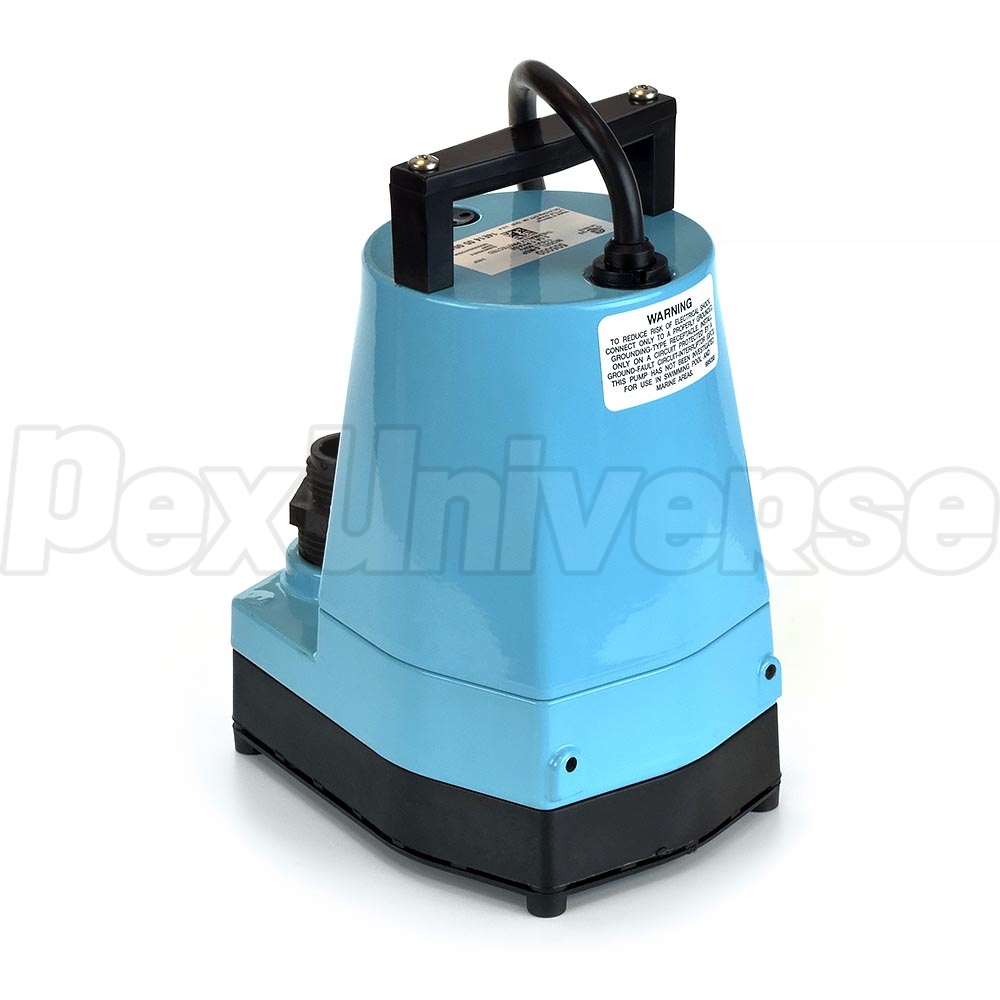

5-MSP Manual Submersible Utility/Sump Pump w/ 10' cord, 1/6 HP, 115V
Brand: Little Giant
Part#: 505000
Model: 5-MSP
This product has been discontinued. No direct replacement is available at this time.
Little Giant 5-MSP (505000) is a 1/6HP, manually-operated, dual-purpose submersible sump pump / utility pump with a 10ft power cord, lubricated for life motor, 1" FNPT discharge and removable inlet screen for easy cleaning. The Little Giant 5-MSP series pumps are capable of pumping water down to 1/8" level.
Both 5-ASP and 5-MSP Little Giant utility pumps feature an epoxy coated cast aluminum housing.

Head (ft) Flow (GPH) Head (m) Flow (LPH)
1 1200 0.3 4542.5
3 1170 0.9 4428.9
5 1100 1.5 4164.0
10 1000 3.0 3785.4
20 520 6.1 1968.4

Applications:
Wide range of de-watering and fluid transfer applications.
Features:
  • 1/6 HP shaded pole motor with overload protection
  • Garden hose adapter for discharge included
  • Designed for continuous duty
  • Pumps down to 1/8"

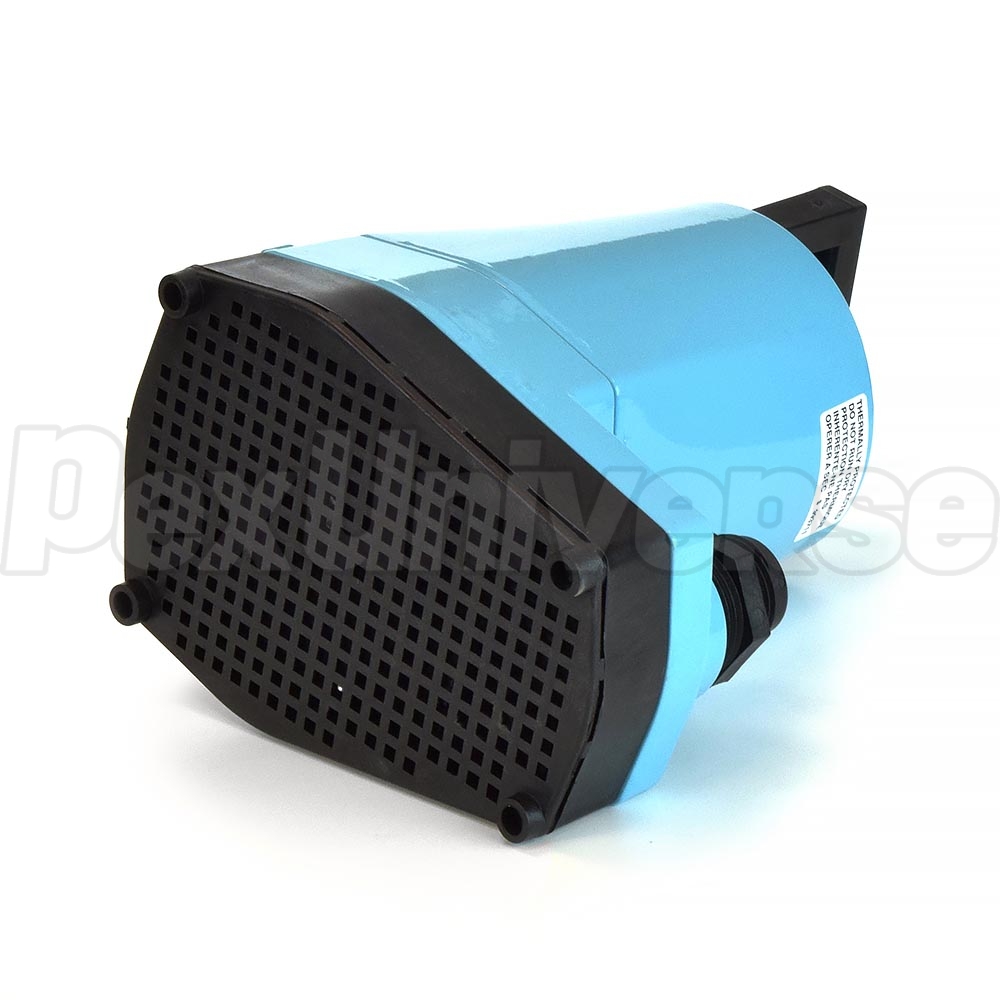

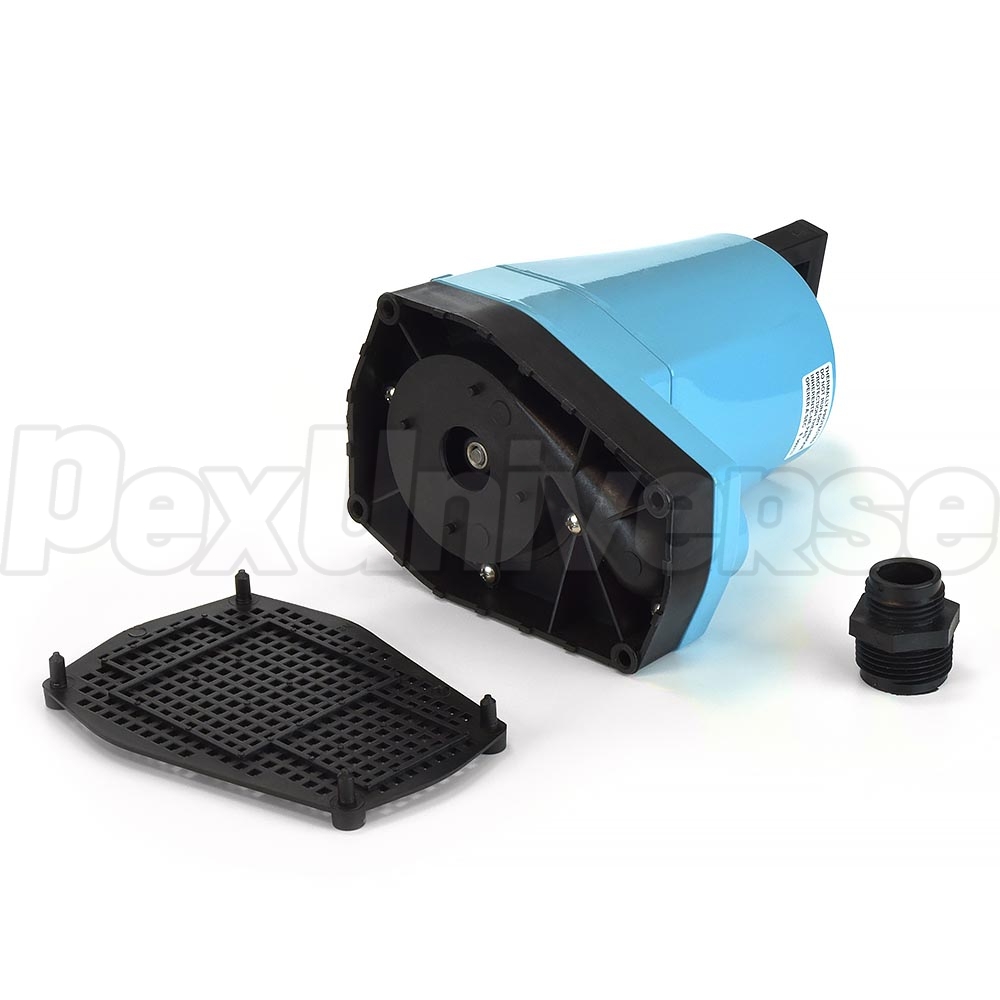

  • Removable inlet screen for easy cleaning
  • Epoxy coated cast aluminum housing
  • Viton shaft seal

Technical Specifications:
  • Model Number: 5-MSP
  • Horsepower: 1/6 HP
  • Max. Flow: 1200 GPH @ 1' of Head
  • Cord Length: 10'
  • Switch: Manual
  • Shut Off @ 26.3ft of head
  • Voltage: 115V
  • Hertz: 60Hz
  • Amps: 5A
  • Watts: 380W
  • Weight: 8.25 lbs.
  • Dimensions (H x W x L): 7.75" x 4.31" x 6.12"
  • Certification: UL/CSA

Warranty:
1 year manufacturer's warranty.
Write a Review
Helpful? Yes No
35 years old and still works perfectly
I bought my Little Giant 5-MSP 35 years ago when my basement flooded and I've used it many times during the past 35 years and it still works great. I went to Google to find a new impeller for the 5-MSP and I was surprised to find they still make the exact same model, in the same color, and parts are available. Good reliable product; I hope the new ones are as reliable as the ones made 35 years ago!!!
Cord: 25'
By Paul (from Canada) on 09/24/2012
Helpful? Yes No
This little pump can do it all
We replaced an old "Little Giant" that had lasted many years. The new one is terrific, can really pump the water off the pool top!!
Cord: 25'
By Pudge the farmer (from Salt Lake City Utah) on 07/31/2011
Helpful? Yes No
Perfect for my needs.
My original Little Giant lasted 22 years. When it came time to buy another I didn't even consider other brands.
Cord: 25'
By Drivel (from Elyria, Ohio) on 06/04/2011
