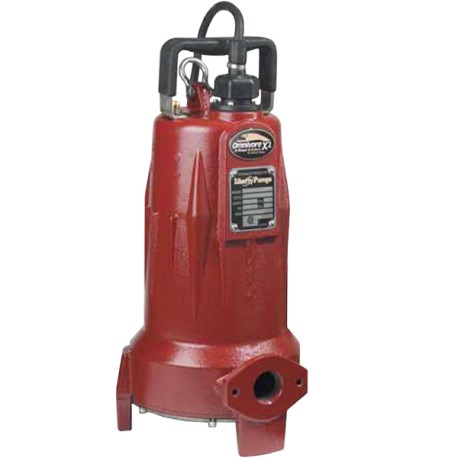

Manual Omnivore X2 Grinder Pump, 25' cord, 2 HP, 575V, 3-Phase Liberty Pumps
Manual Omnivore X2 Grinder Pump, 25' cord, 2 HP, 575V, 3-Phase
Brand: Liberty Pumps
Part#: LSGX205M
This product has been discontinued. No direct replacement is available at this time.

Description


Features:
  • 2 hp, heavy-duty motor – oil filled, thermally protected
  • Upper and lower ball bearings
  • One-piece uni-body cast iron housing
  • 300 Series SS Rotor Shaft
  • 316 Stainless steel impeller
  • Dual seals – Upper seal is unitized durable silicon carbide. Lower seal is Viton double-lip. (Lower seal ensures that all debris is kept away from main seal)
  • Motor windings insulated to Class B (130°C)
  • Advanced V-Slice® cutting system made of hardened 440 stainless steel – Rockwell C 58
  • Horizontal 1-1/4'' FNPT Discharge
  • Back vanes on impeller and spiraled bottom plate for superior solids clearing
  • All stainless steel fasteners
  • Clog-free volute design
  • Designed for maximum heat dissipation and cool motor operating temperatures
  • Solid state starting circuit - no mechanical relay coil
  • 25' power cord with Quick-Disconnect.

Technical Specifications:
  • Horsepower: 2 HP
  • Oparation Type: Manual
  • Maximum Flow: 39 GPM @ 5' head
  • Maximum Head: 185 ft
  • Discharge: 1-1/4" FNPT
  • Solids Handling: Advanced V-Slice Cutting System
  • Maximum Fluid Temperature: 140°F
  • Cord Length: 25 ft
  • Construction: Cast Iron
  • Frequency of Revolutions: 3450 RPM
  • Voltage: 575V
  • Amperage: 4.9 A
  • Frequency: 60 Hz.

Warranty:
3 years manufacturer's warranty
