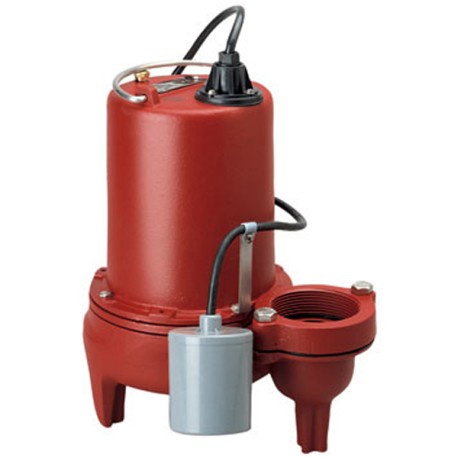

Automatic High Head Sewage Pump w/ Wide Angle Float Switch, 25' cord, 1 HP, 3" Discharge, 208/230V Liberty Pumps
Automatic High Head Sewage Pump w/ Wide Angle Float Switch, 25' cord, 1 HP, 3" Discharge, 208/230V
Brand: Liberty Pumps
Part#: LEH102A3-2
Usually ships: within 5-7 business days

Description

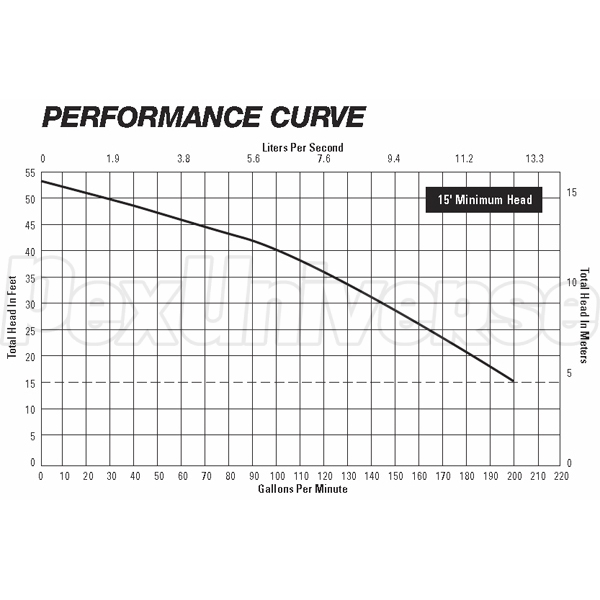

The Liberty LEH102A3 Pump is an automatic submersible high head Sewage Pump with a 230V, 1HP motor and 10' quick disconnect power cord. The Liberty LEH102A3 has a max total dynamic head of 53' and a 3" NPT flanged discharge. The Liberty submersible high head sewage pump features 2-vane, semi-open impellers that allow passage of 2" solids. This high head sewage pump is also equipped with a wide-angle float switch with a piggy-back plug for manual operation. This switch has a turn-on level of approximately 12" to 16" and a turn-off level of 6' above the bottom of the basin. Other pumping differentials may be obtained by tethering the switch cord to the discharge pipe on this Liberty high head sewage pump.

This Liberty high head sewage pump is constructed of heavy cast iron with a tough epoxy powder coat finish and stainless steel fasteners for years of trouble-free performance. The Liberty LEH102A3 high head sewage pumps must only be used in applications with a minimum of 15'.


Features:
  • 53' Maximum TDH
  • Rugged 2 vane, semi-open cast iron impellers
  • Cast iron housings and volute with all stainless and brass fasteners
  • 416 stainless steel rotor shaft
  • Oil-filled, hermetically sealed motors
  • Built-in thermal protection on single phase models
  • Permanently lubricated upper and lower ball bearings
  • Unitized shaft seals
  • Single float mechanical level control with series plug for manual bypass operation-standard on single-phase automatic models
  • Adjustable pumping range
  • Quick-disconnect 25' standard power cord allows replacement of cord in seconds without breaking seals to motor

Technical Specifications:
  • Horsepower: 1HP
  • Cord length: 25'
  • Discharge: 3" FNPT Flanged
  • Solids Handling: up to 2"
  • Shut-off Head: 53'
  • Voltage: 208-230V
  • Amps: 12
  • Hertz: 60 Hz
  • Phase: 1
  • RPM: 3450
  • Maximum fluid temperature: 140°F
  • Height: 14.1"
  • Width: 12.6"
  • Weight: 64 lbs.
  • Minimum basin diameter: 18"
  • Minimum basin depth: 24"

Warranty:
3 years manufacturer's warranty
