Manual Sewage Pump, 25' cord, 3/4 HP, 2" Discharge, 208/230V, 3-Phase Liberty Pumps
Manual Sewage Pump, 25' cord, 3/4 HP, 2" Discharge, 208/230V, 3-Phase
Brand: Liberty Pumps
Part#: LE73M2-2
This product has been discontinued. No direct replacement is available at this time.

Description

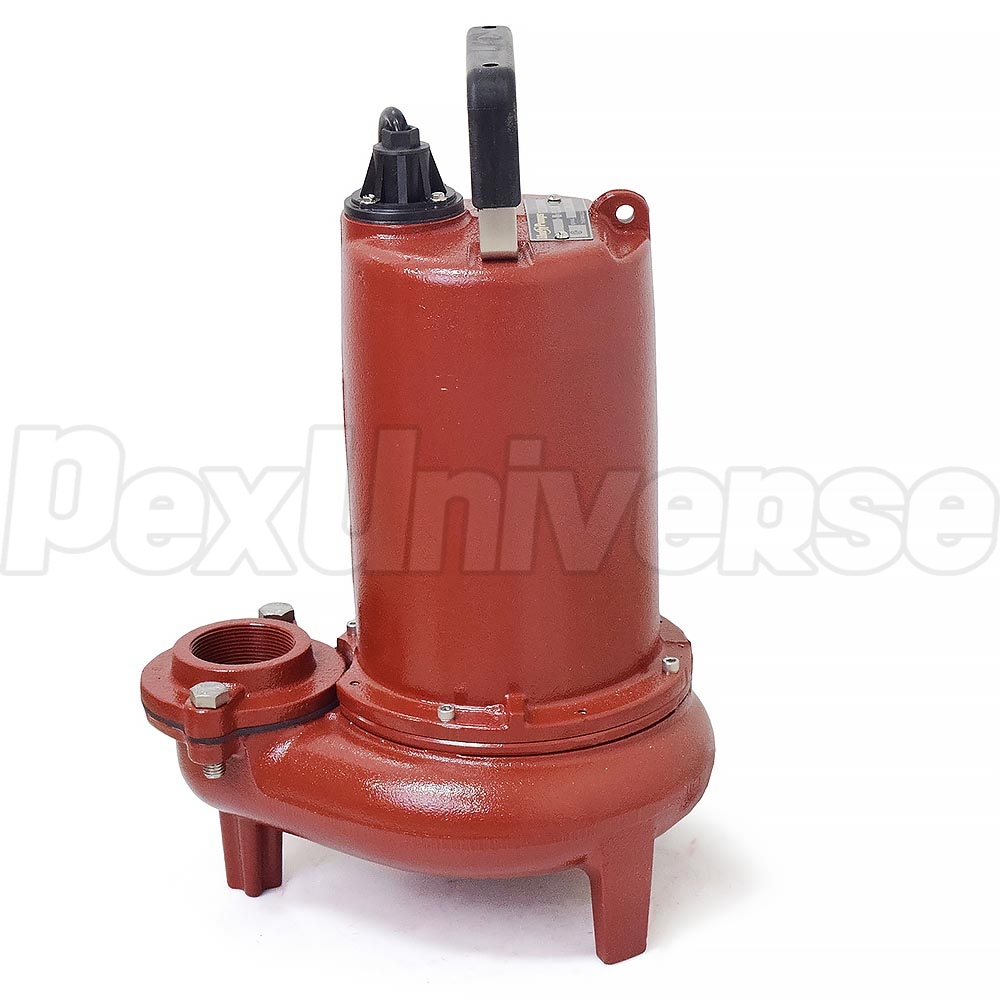

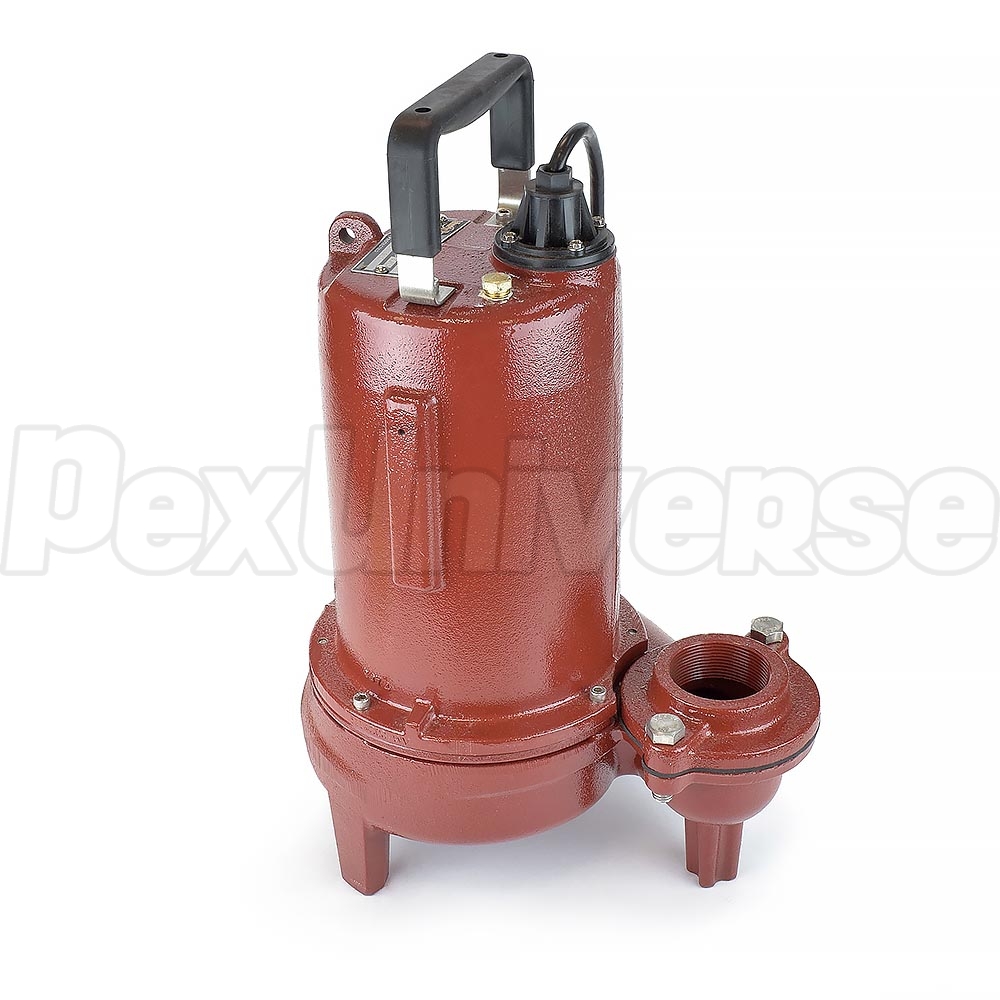

The Liberty Pump LE73M2-2 is a 3-phase manual submersible sewage pump with 3/4HP, 230V motor and a 25' quick-disconnect power cord. The Liberty Pump LE73M2-2 manual submersible sewage pump features rugged 2-vane, semi-open impellers that allow handling of 2" solids. This Liberty sewage pump also has a 2" FNPT flanged discharge and a shut-off head of 28'. The Liberty LE73M2-2 is intended to be run using an approved liquid level control or approved motor control with correct rating that matches motor input in full load amperes. Be sure that when the Liberty sewage pump shuts off, at least 6" of fluid is left in the basin so the impeller remains submerged. Separate approved pump control device or panel is requires for automatic operation.

The heavy-duty built Liberty Pumps LE73M2-2 sewage pumps are ideal for residential and light commercial sewage applications. 3-Phase Liberty Pumps require panel for automatic operation. See sewage accessories literature for complete information on all simplex and duplex controls. Check three phase pumps for proper rotation prior to installing pump(s) in a basin. To change rotation, reverse any two of the three power leads to the pump.


Features:

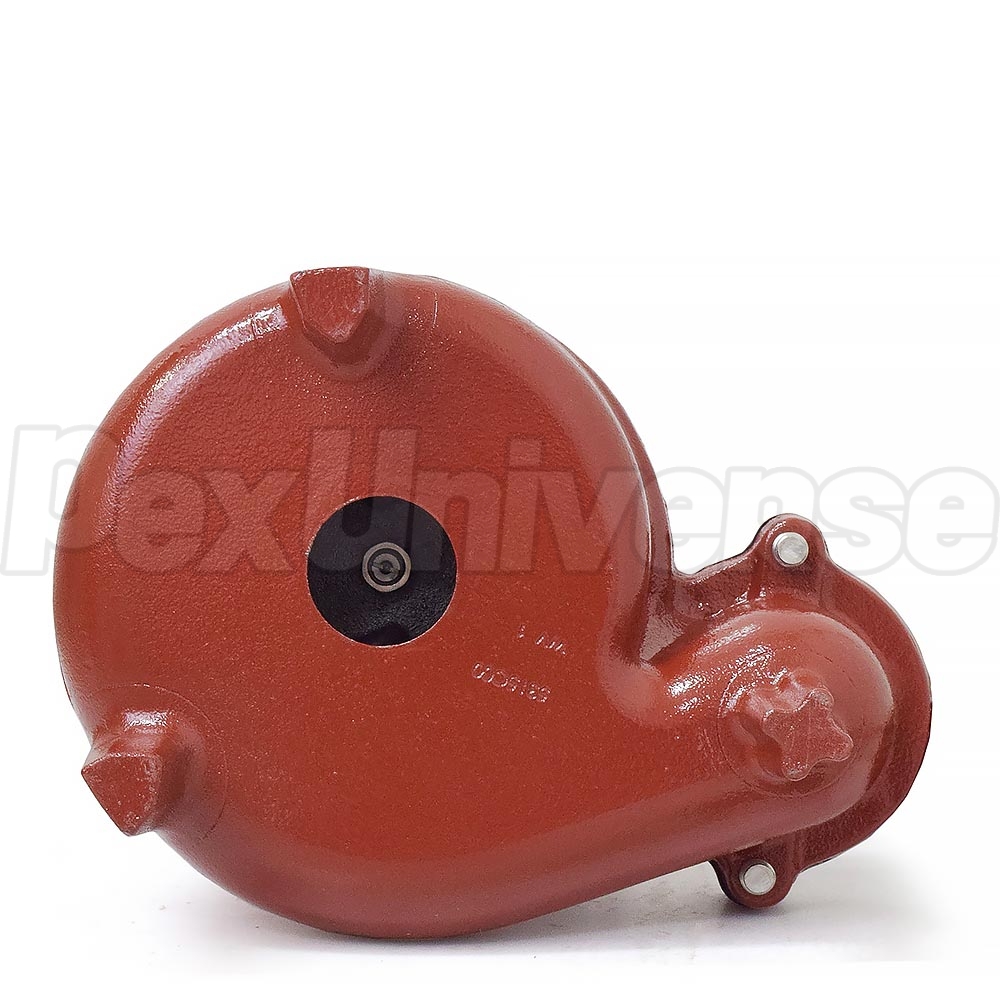

  • Rugged 2 vane, semi-open cast iron impellers
  • Cast iron housings and volute with all stainless and brass fasteners
  • 416 stainless steel rotor shaft
  • Oil-filled, hermetically sealed motors
  • Built-in thermal protection on single phase models
  • Permanently lubricated upper and lower ball bearings
  • Unitized shaft seals
  • Single float mechanical level control with series plug for manual bypass operation-standard on single-phase automatic models
  • Adjustable pumping range
  • Quick-disconnect 25' standard power cord allows replacement of cord in seconds without breaking seals to motor

Technical Specifications:
  • Horsepower: 3/4HP
  • Cord length: 25'
  • Discharge: 2" FNPT Flanged
  • Solids Handling: up to 2"

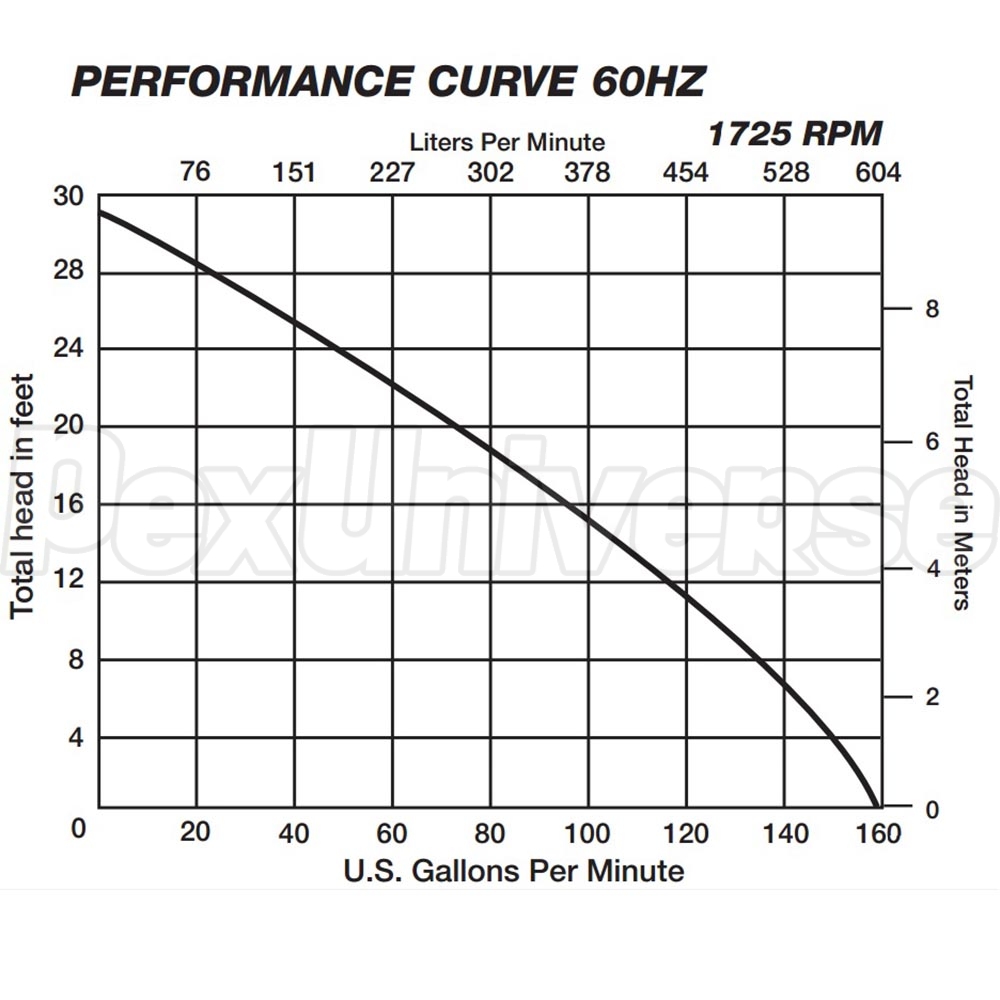

  • Shut-off Head: 28'
  • Voltage: 208-230V
  • Amps: 4.1
  • Hertz: 60 Hz
  • Phase: 3
  • RPM: 1725
  • Maximum fluid temperature: 140°F
  • Height: 14.1"
  • Width: 12.25"
  • Weight: 60 lbs.
  • Minimum basin diameter: 18"
  • Minimum basin depth: 24"

Warranty:
3 years manufacturer's warranty
