Manual Sewage Pump, 10' cord, 4/10 HP, 115V Liberty Pumps
Manual Sewage Pump, 10' cord, 4/10 HP, 115V
Brand: Liberty Pumps
Part#: LE41M
In Stock
Pick Up ready by {{ pickupBy }}
Usually ready: within 1 hour

Description

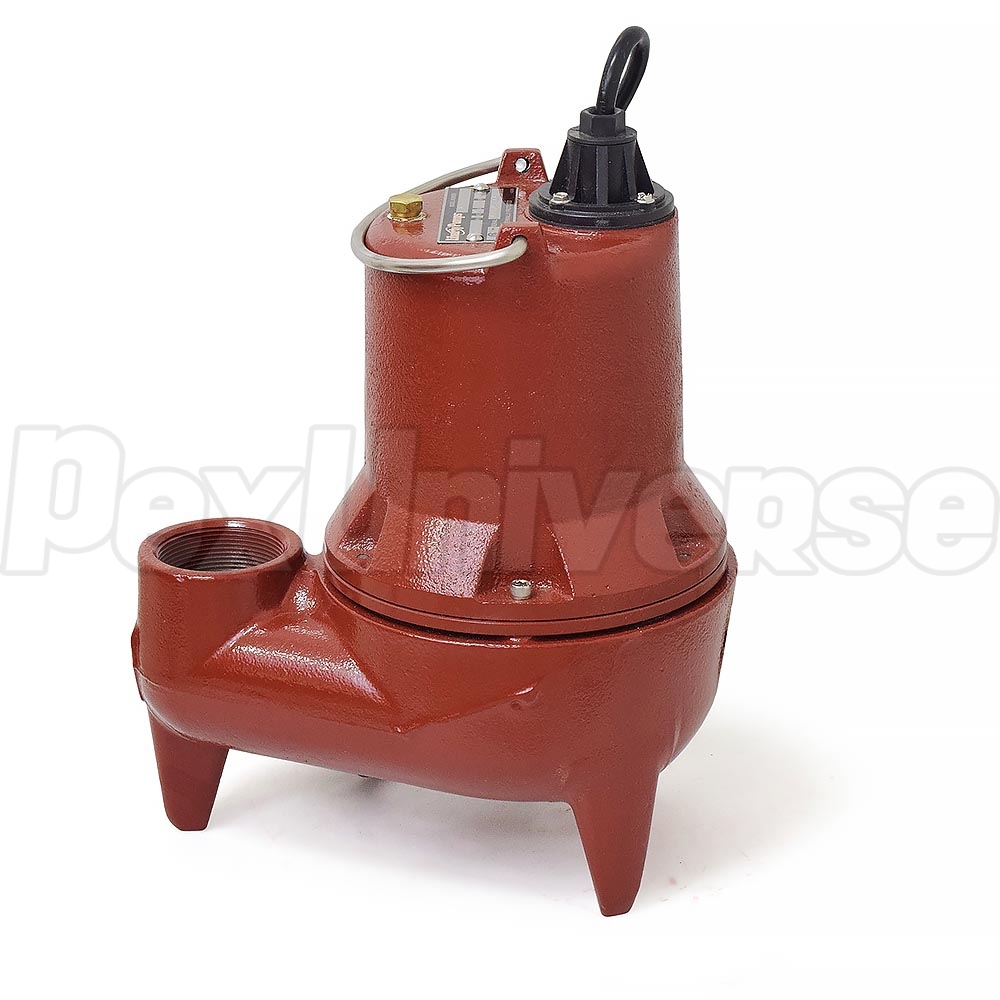

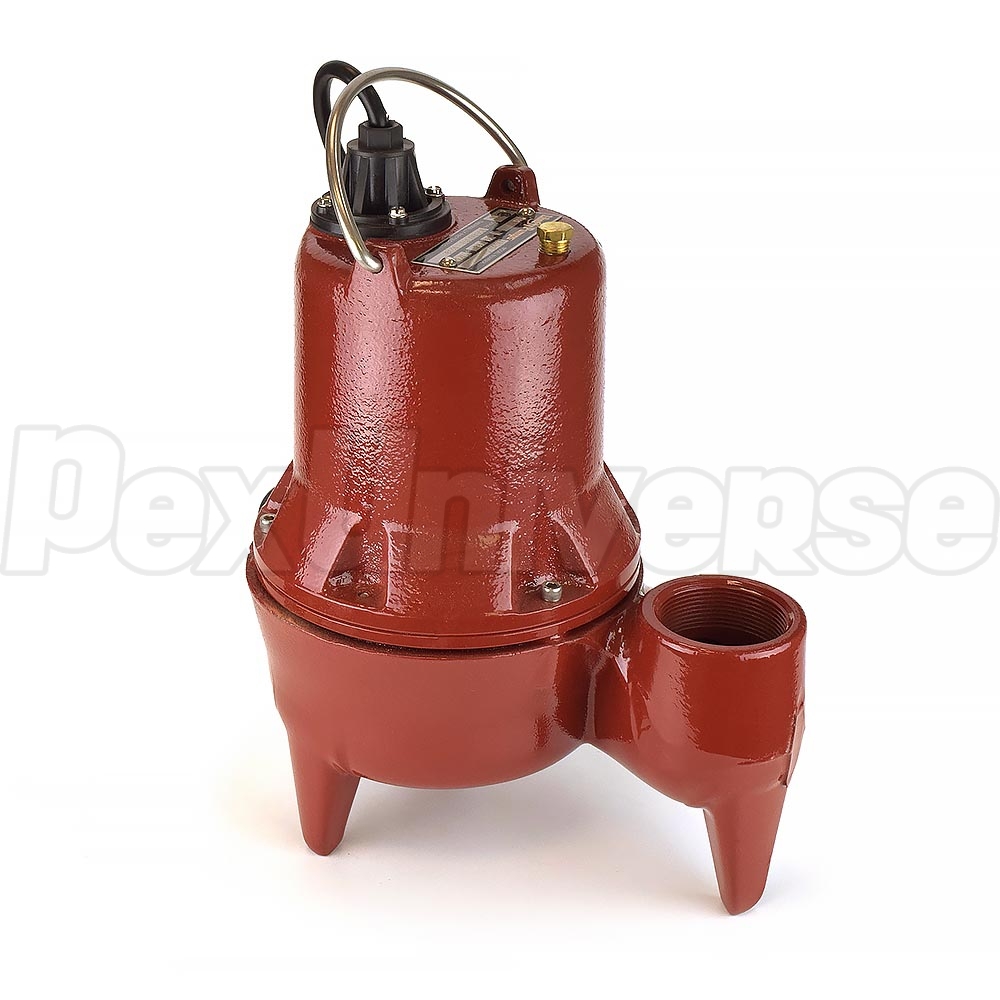

The Liberty Pump LE41M is a manual submersible sewage pump with a 4/10, 115V motor and a 10' quick-disconnect power cord. This Liberty sewage pump is intended to be run using an approved liquid level control or approved motor control with correct rating that matches motor input in full load amperes. Do not let the Liberty Pump LE41M manual submersible pump run dry. When the Liberty sewage pump shuts off, at least 6" of fluid have to be left in the basin so the impeller remains submerged.

The Liberty Pump LE41M has a shut-off head of 19' and a discharge of 2" FNPT. It can handle solids up to 2" and temperatures up 140F. The Liberty sewage pump motor is oil filled and thermally protected. The rotor shaft is made of 416-stainless steel and is supported by lower and upper ball bearings.


Features:
  • Heavy cast iron construction
  • Oil filled, thermally protected motor
  • Permanently lubricated ball bearings

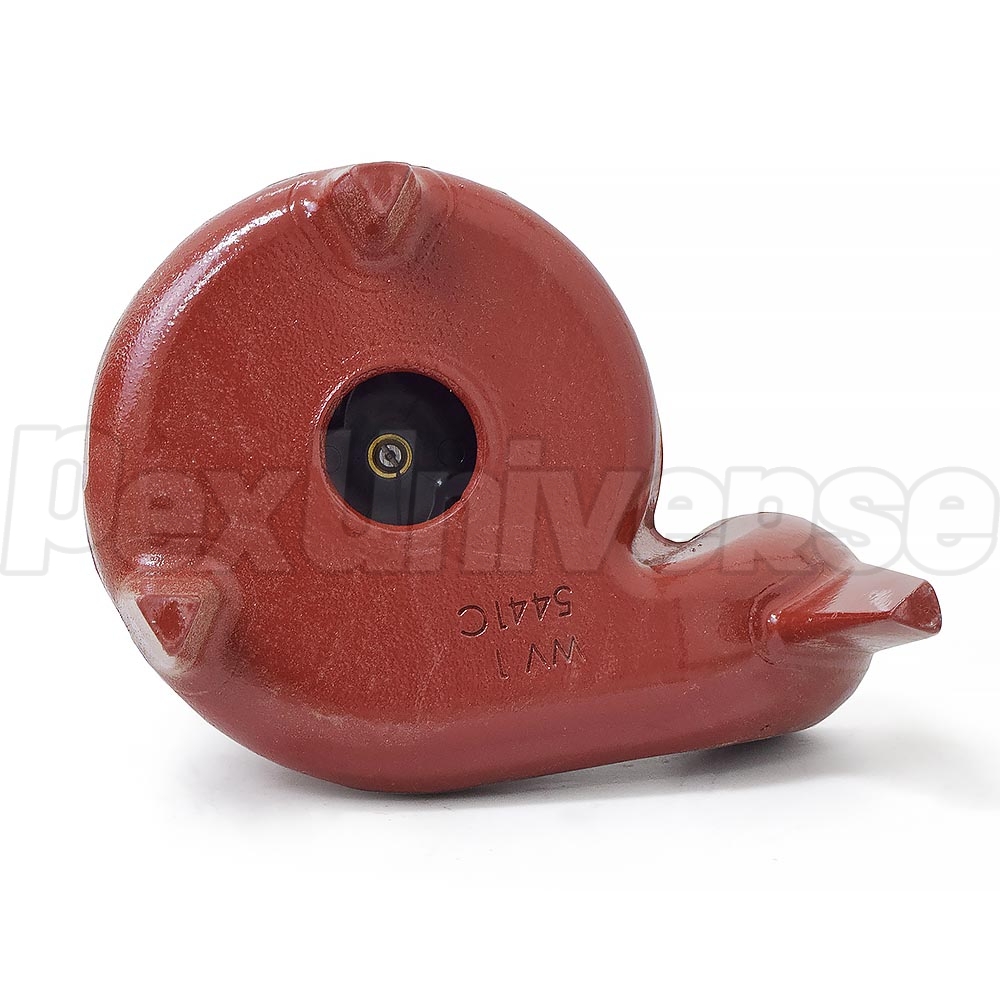

  • Corrosion resistant, vortex style impeller made of high temperature engineering polymer
  • All stainless steel fasteners and rotor shaft
  • Quick-disconnect 10' standard power cord allows replacement of cord in seconds without breaking seals to motor

Technical Specifications:
  • Horsepower: 4/10HP
  • Cord length: 10'
  • Discharge: 2" FNPT
  • Solids Handling: up to 2"

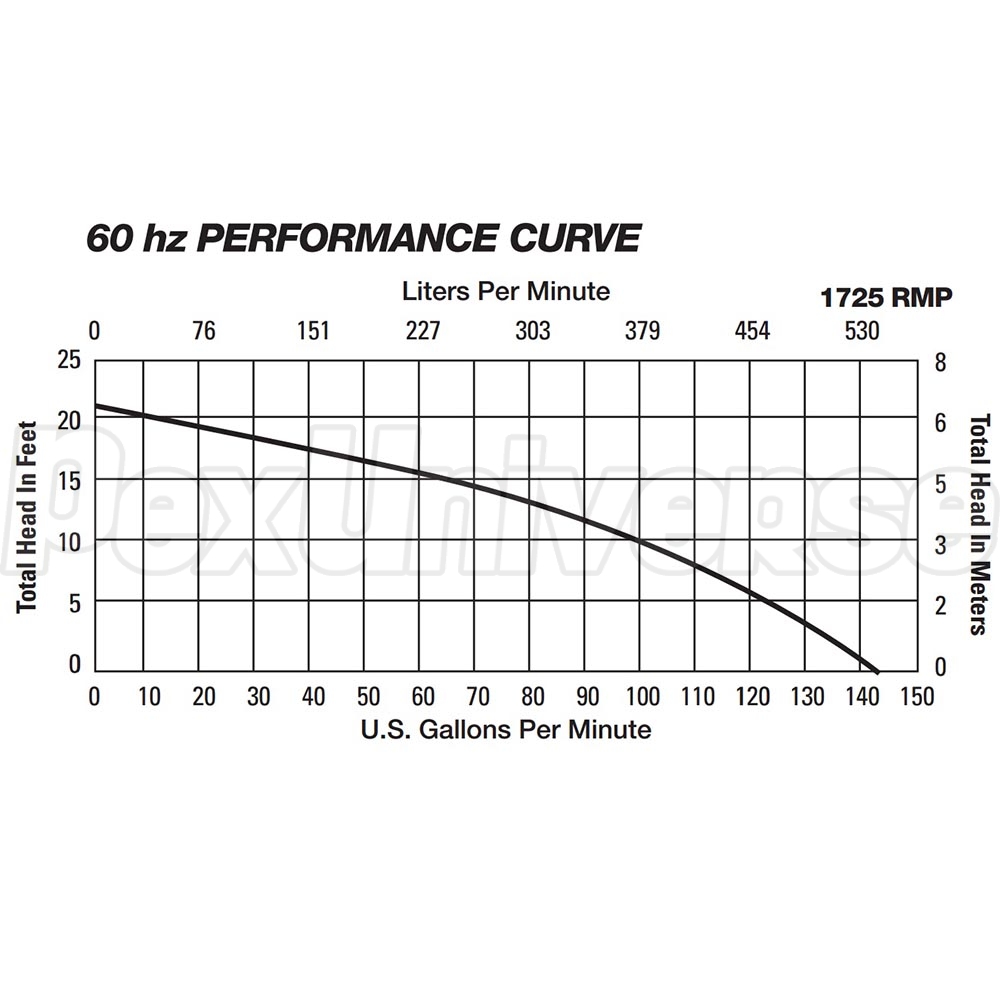

  • Shut-off Head: 19'
  • Voltage: 115V
  • Amps: 12
  • Hertz: 60 Hz
  • Phase: 1
  • Maximum fluid temperature: 140°F
  • Height: 14"
  • Width: 10.75"
  • Weight: 40 lbs.
  • Minimum basin diameter: 18"
  • Minimum basin depth: 24"

Warranty:
3 years manufacturer's warranty
