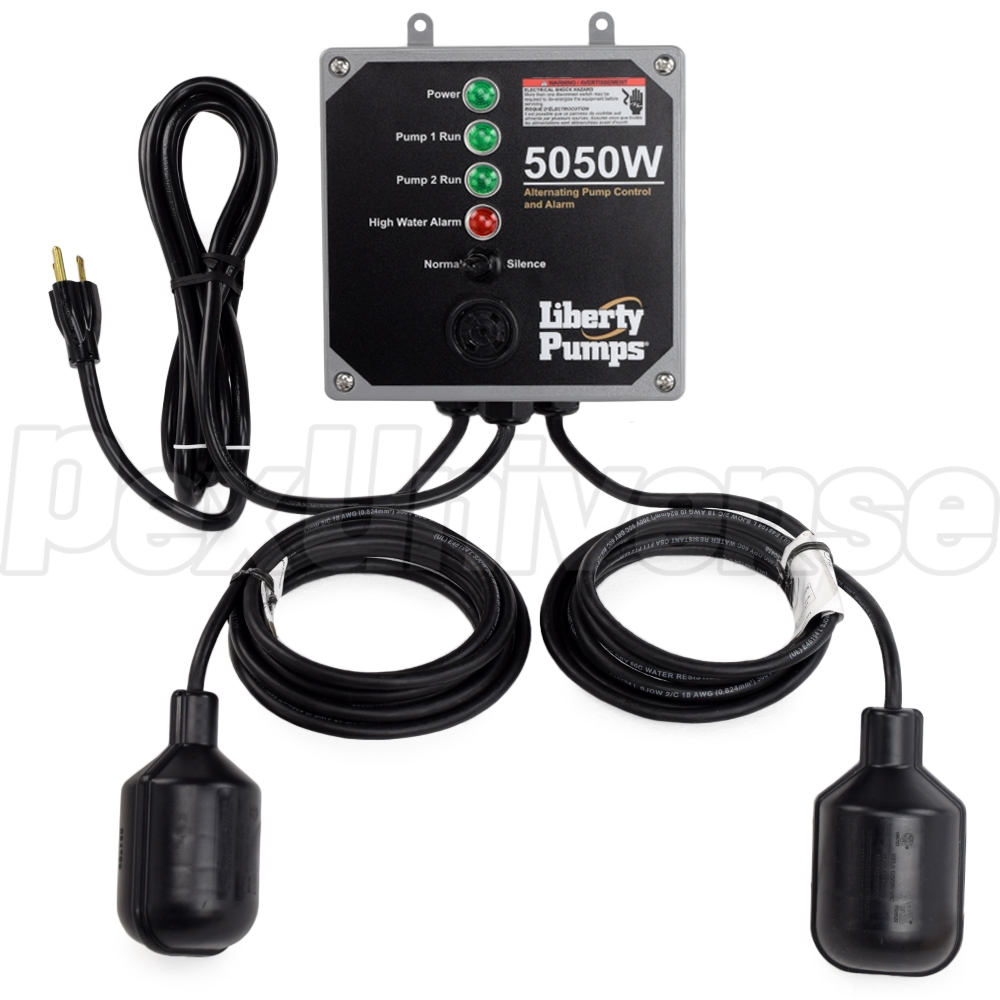

Indoor Duplex Sump Pump Control w/ Wide Angle Floats, 10ft cord, 115V, up to 1HP (15A) Liberty Pumps
Indoor Duplex Sump Pump Control w/ Wide Angle Floats, 10ft cord, 115V, up to 1HP (15A)
Brand: Liberty Pumps
Part#: 5050W
In Stock
Pick Up ready by {{ pickupBy }}
Usually ready: within 1 hour

Description

Universal 115V control with vertical style floats for duplex (2-pump) sump pump systems. Suitable for systems where individual pump does not exceed 1 HP (15A). Both 115V pumps plug directly into the panel, 10ft power cord plugs into a standard outlet.
This panel provides alternating (1st, 2nd, 1st, 2nd, etc.) pump operation (for equalized wear and extended lifespan) and has (2) floats - bottom one for operating either of the pumps and the top one for the alarm. Floats are pre-wired to the alarm, marked for easy identification and include hardware for mounting onto the discharge pipe (up to 2" PVC, ABS or steel pipe).
Wide angle style floats are suitable only for wider basins.

Features:
  • Universally compatible with all 115V duplex sump systems with individual pump not exceeding 15A (1 HP) ea
  • Alternating pump operation equalizes wear and extends their lifespan
  • Wide angle style factory pre-wired floats with worm gear clamps for up to 2.5" OD pipe (2" PVC pipe or smaller)
  • Plug-in ready - no wiring required
  • NEMA 1 rated for indoor use only

Technical Specifications:
  • Control Type: duplex, alternating pump operation
  • Electrical Specs: 115V, 1-Phase, 0-14.9 Amps Max. Full Load (per pump)
  • Float Specs: (2) wide angle style floats (On/Off and Alarm) w/ 10ft cord, pre-wired to the control
  • For Discharge Pipe Size: up to 2" (PVC, ABS, steel)

Warranty:
3-year warranty
