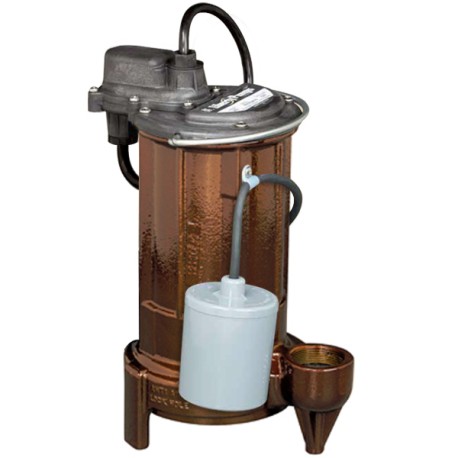

Automatic Sump/Effluent Pump w/ Wide Angle Float Switch, 25' cord, 3/4 HP, 115V Liberty Pumps
Automatic Sump/Effluent Pump w/ Wide Angle Float Switch, 25' cord, 3/4 HP, 115V
Brand: Liberty Pumps
Part#: 291-2
Usually ships: within 3-4 business days

Description

The Liberty 291-2 is a 3/4HP, single-phase automatic, submersible effluent/sump pump that can reach a max flow of 78GPM at 5' of head. The Liberty 291-2 is best used for residential and commercial heavy-duty pumping of large volumes of drainage, effluent and waste water, and other non-corrosive, non-explosive liquids. The Liberty 291-2 automatic submersible effluent sump pump has a shut-off of 48' of head and comes with a quick disconnect 25' power cord. This Liberty sump/effluent pump comes equipped with a wide angle float switch, has a discharge of 1-1/2NPT and can handle solids up 3/4".

The Liberty 291 provides a cost-effective mid-range pump for on-site waste water systems, liquid waste transfer and commercial heavy duty sump pump applications that require higher head or more flow. Liberty's unique Uni-Body casting will provide years of reliable performance.


Features:
  • Wide-Angle Float with Quick Disconnect design
  • Liberty's unique, one-piece "Uni-Body" casting
  • Permanently lubricated upper and lower bearings
  • Oil-filled, hermetically sealed motors with thermal overload protection
  • Stainless steel, removable bottom screen
  • 416 Stainless steel rotor shaft
  • All fasteners - corrosion-resistant stainless steel
  • Semi-Open impeller permitting passage of solids up to 3/4"
  • Epoxy powder coat finish
  • 1-1/2" Discharge
  • Stainless steel bottom screen - easily removable
  • Maximum fluid temperature 140F

Technical Specifications:
  • Discharge Size: 1 1/2" FNPT
  • Solids Handling Capability: 3/4" dia.
  • Listing: UL/CSA
  • HP: 3/4
  • Volts: 115
  • Phase: 1
  • Hertz: 60
  • Amps: 10.4
  • Flow @ 5': 78 GPM
  • Flow @ 10': 72 GPM
  • Flow @ 20': 58 GPM
  • Thermal overload temp: 248F
  • Shut-off Head: 48'
  • Cord Length: 25'
  • Minimum Sump Diameter: 14"
  • Height: 13"
  • Weight: 31 lbs

Warranty:
3 years manufacturer's warranty
