Liberty Pumps Manual Sump/Effluent Pump, 50' cord, 1/3 HP, 115V

Manual Sump/Effluent Pump, 50' cord, 1/3 HP, 115V

Brand: Liberty Pumps
Part#: 250-5
This product has been discontinued. No direct replacement is available at this time.

Description

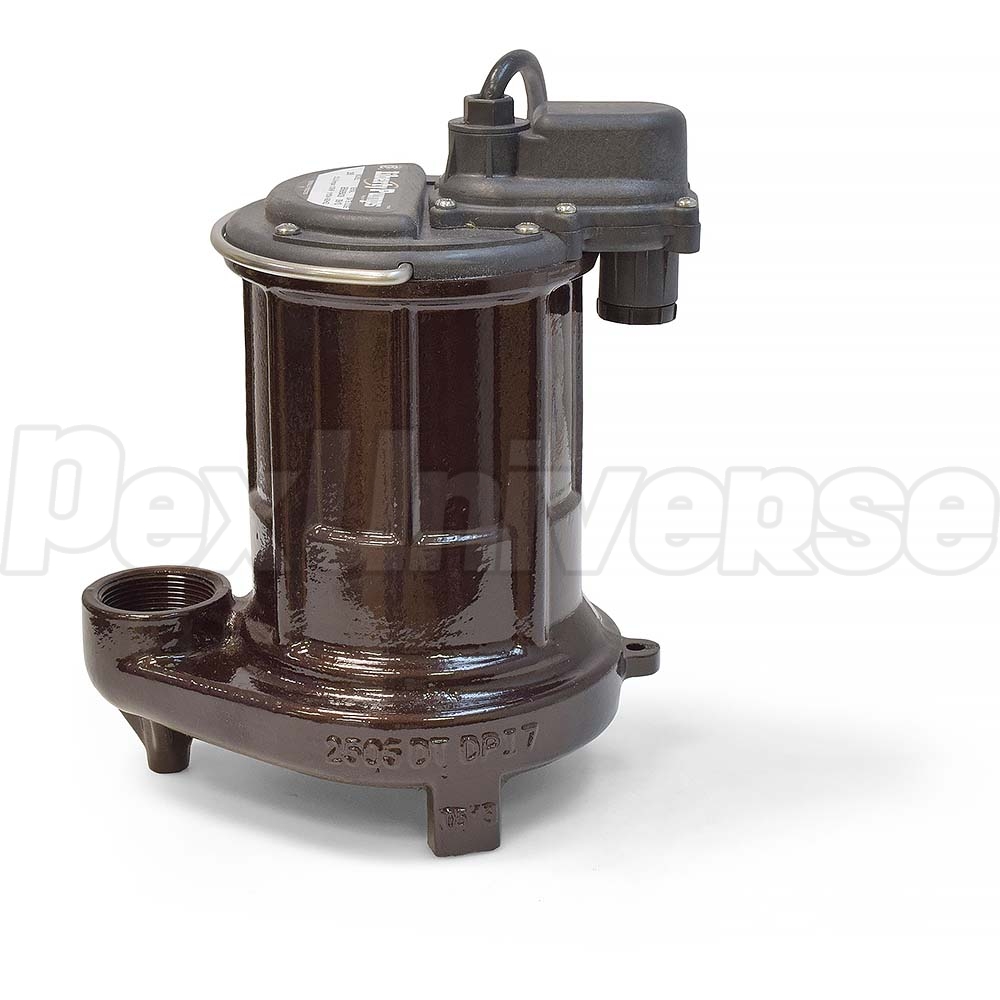

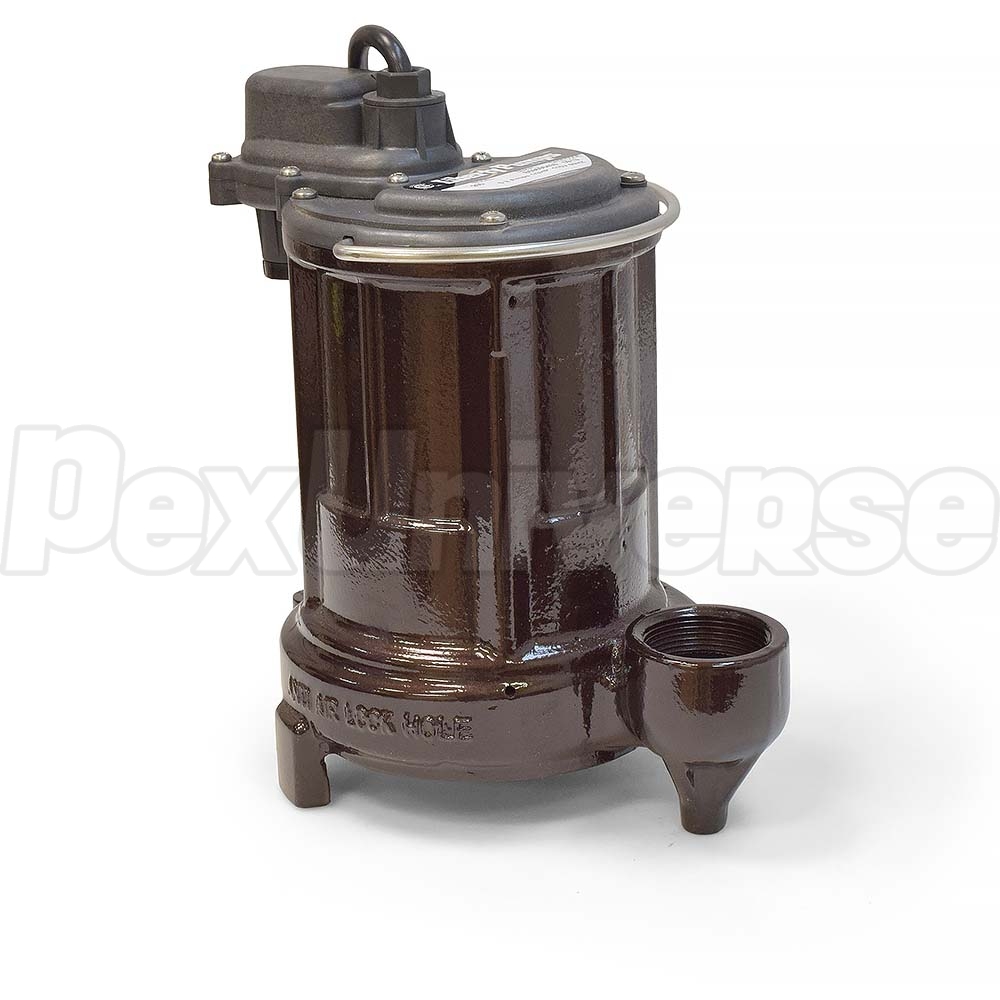

The Liberty Pump 250-5 is a 1/3HP manual submersible effluent/sump pump. The Liberty 250-5 effluent sump pump comes with a 50-ft. power cord and has a shut-off head of 23'. This effluent sump pump is ideal for pumping of drainage, effluent and waste water and other non-explosive/corrosive liquids. It has a 1-1/2" discharge, can handle solids up to 1/2" and can produce a flow rate of 36 GPM at 10'.

This Liberty sump/effluent pump is the perfect choice for low-head effluent pumping or basement de-watering applications, as well as a liquid waste transfer for residential or commercial applications that require more flow at low-head. The Liberty 250-5 effluent sump pump operates at 115V, 5.2 Amp and 60 Hz with a maximum fluid temperature of 140F. The powerful heavy-duty motor on the Liberty 250-5 effluent sump pump comes with a rugged housing and powder coat finish that is completely submersible and will provide years of reliable performance.


Features:

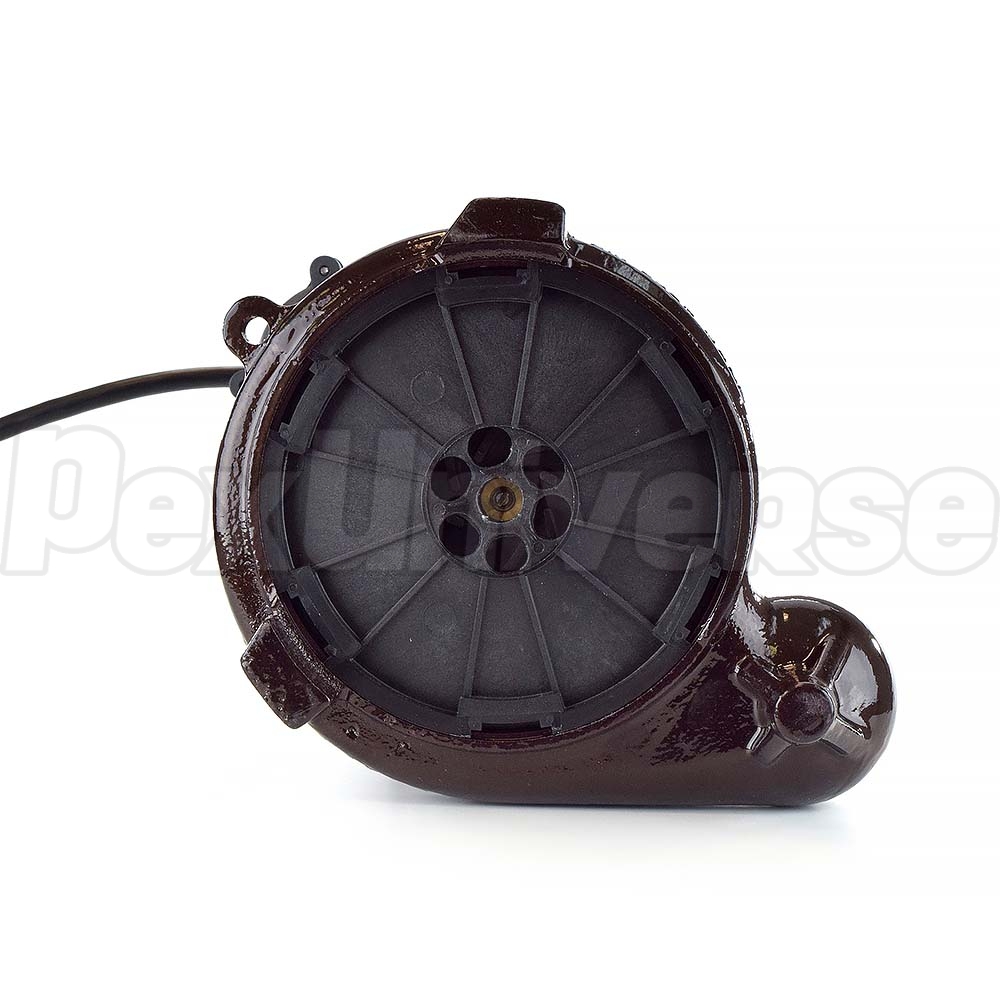

  • Vortex style impeller permitting passage of solids up to 3/4"
  • Cast bronze or cast iron pump housing with protective epoxy coating for corrosion resistance
  • Oil-filled motor housing for lifetime lubrication and rapid heat dissipation
  • 1/3 HP shaded pole motor with thermal overload protection
  • Stainless steel fasteners
  • Mechanical seal (stainless steel spring, nitrile parts, carbon and ceramic faces) for protection against pump failure
  • Upper and lower sintered sleeve bearings for extended motor life
  • Manual operation

Technical Specifications:
  • Discharge Size: 1 1/2" FNPT
  • Solids Handling Capability: 1/2" dia.
  • Listing: UL/CSA
  • HP: 1/3
  • Volts: 115
  • Phase: 1
  • Hertz: 60
  • Amps: 5.2

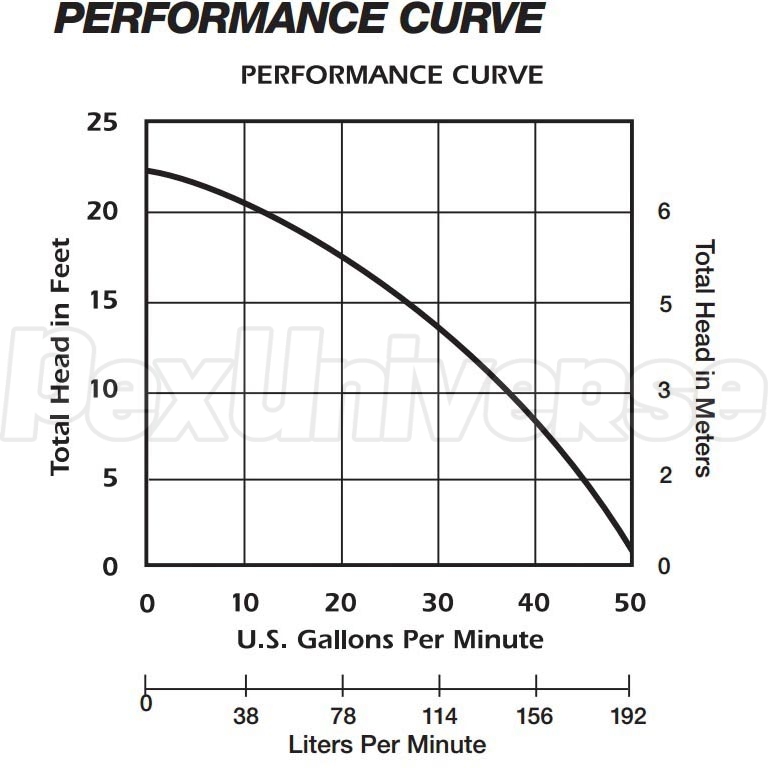

  • Flow @ 5': 45 GPM
  • Flow @ 10': 38 GPM
  • Flow @ 20': 14 GPM
  • Thermal overload temp: 248F
  • Shut-off Head: 23'
  • Cord Length: 50'
  • Height: 10.5"
  • Major Width: 9.6"
  • Weight: 24 lbs

Warranty:
3 years manufacturer's warranty
