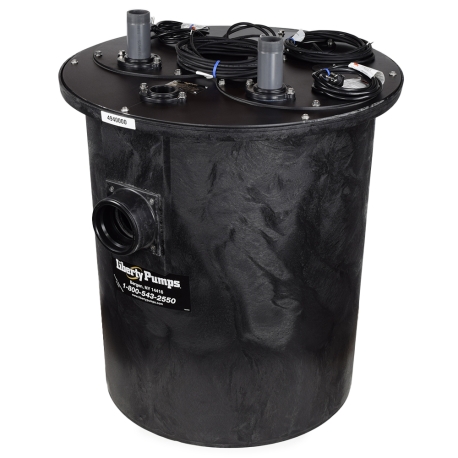

1/2 HP 1100-Series Duplex Sewage System w/ LE52M Pumps, Control & 30" x 36" Basin, 2" Disch., 208-230V, 10' Liberty Pumps
1/2 HP 1100-Series Duplex Sewage System w/ LE52M Pumps, Control & 30" x 36" Basin, 2" Disch., 208-230V, 10'
Brand: Liberty Pumps
Part#: 1102-LE52M-AE
Usually ships: within 5-7 business days

Description

Liberty 1102/LE52M-AE is a duplex sewage ejector system with a 30" x 36", 110-gallon basin, (2) LE52M sewage pumps and AE21L=3 control panel with integrated alarm. Discharge and vent pipes are 2". The system is factory-assembled and is ready for installation - simply connect the piping and wire the control panel (pumps, discharge pipe and floats are pre-installed inside basin).
Liberty 1100 series is a true duplex system with Lead/Lag pump operation, where Lag (secondary) pump can engage if the Lead (primary) pump is not capable of removing high volume of incoming wastewater - allowing for both pumps to run at the same time.
AE series control panel is packed with features and can be customized to fit project needs - see the control panel product listing for details.

Features:
  • Full-size duplex (2-pump) system for multi-unit residential or commercial needs
  • Large 110-gallon basin allows for less frequent pump cycling, equalizing wear & extending their life span
  • Factory-assembled & ready for installation (pumps, floats & discharge piping pre-installed, panel/pumps/floats must be hardwired)
  • Complete packaged system - includes AE series indoor duplex control w/ integrated alarm
  • Heavy-duty, fully gasketed basin with integrally molded anti-flotation collar & torque stops
  • Robust 1/4" thick enamel coated steel basin cover with (2) separate 10" diameter access covers for pump inspection/removal
  • Separate access cover for the float tree
  • Made in the USA

Technical Specifications:
  • Basin Size: 30" Wide x 36" Deep
  • Basin Capacity: 110 Gallons
  • Pump Models: 2 x LE52M sewage pumps
  • Individual Pump Specs: 1/2 HP, 208-230V, 6.8A, 1-Phase, 10ft cord (w/ plug)
  • Control Panel: AE21L=3 model (NEMA 1 for indoor use only), hardwired (power, pumps & floats)
  • Floats: (3) float switches pre-installed at proper levels inside basin (Stop, Lead and Lag/Alarm)
  • Connections: Two x 2" FNPT Discharge, 2" FNPT Vent, 4" Inlet (rubber gasket seal for 4" PVC, ABS or cast iron no-hub pipe)
  • Approx Weight: 218 lbs

Warranty:
3-year warranty
