Automatic Condensate Pump w/ Safety Switch, 6' cord, 1/30 HP, 115V Liberty Pumps
Automatic Condensate Pump w/ Safety Switch, 6' cord, 1/30 HP, 115V
Brand: Liberty Pumps
Part#: LCU-SP20S
In Stock
Pick Up ready by {{ pickupBy }}
Usually ready: within 1 hour

Description

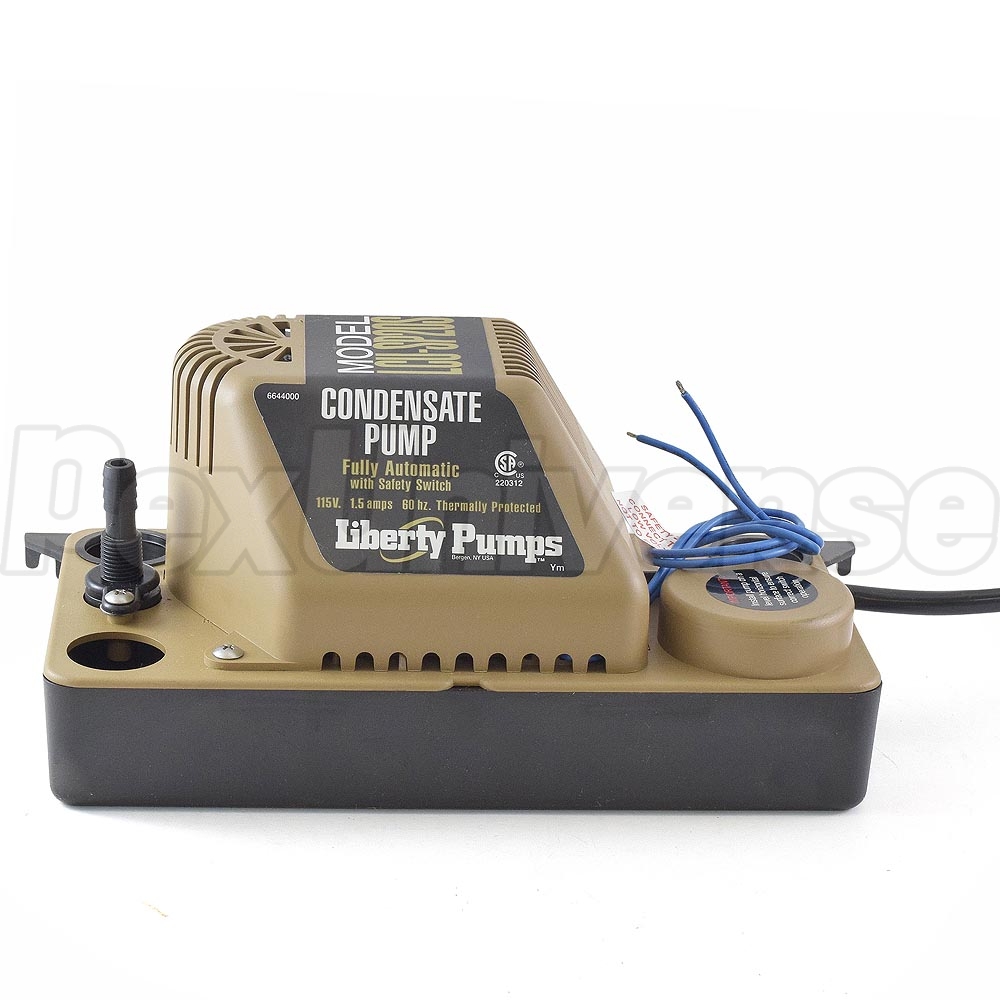

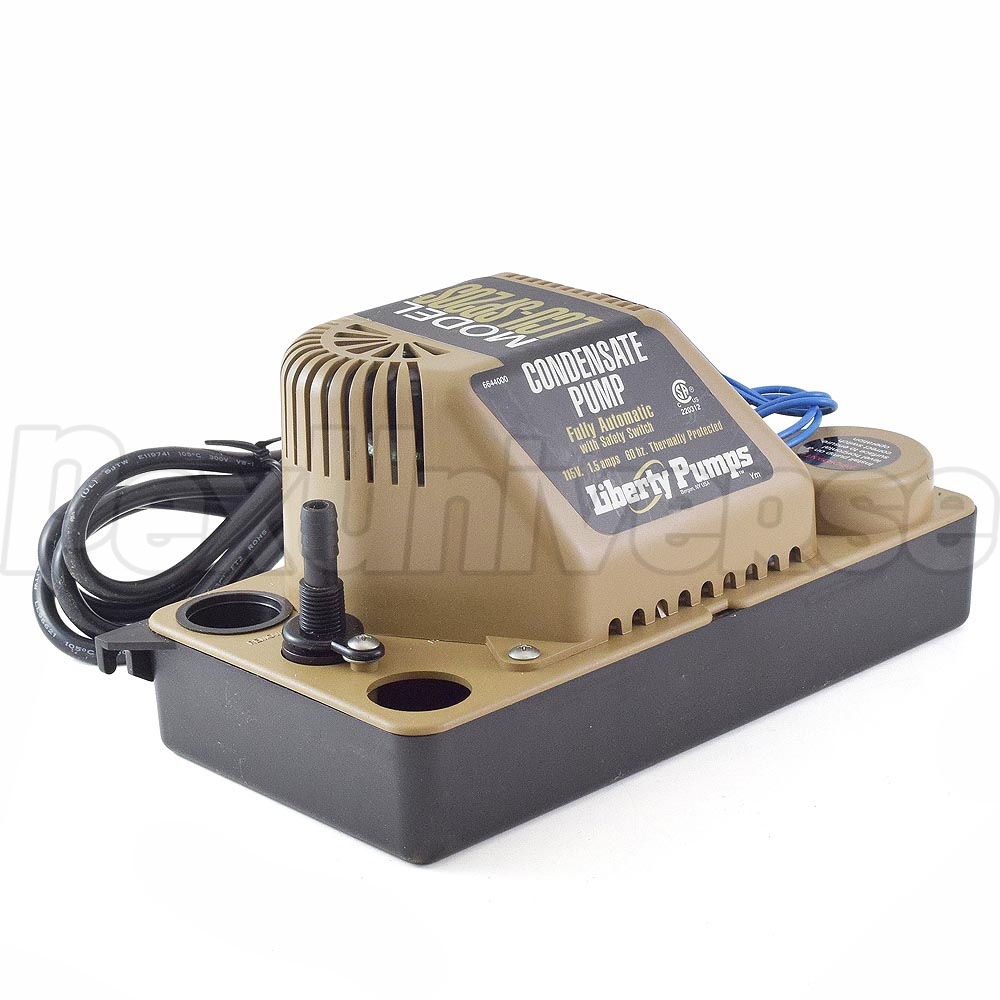

The Liberty Pump LCU-SP20S is an automatic shallow pan condensate removal pump with a115V, 1/30HP motor and a 6' power cord. This Liberty pump is designed for the removal of condensate from high-efficiency furnaces, A/C equipment, ice machines, drinking fountains, beverage machines, dehumidifiers and other applications needing condensate removal. The Liberty Pump LCU-SP20S is also equipped with a high-impact ABS tank, wall mounts, three-intake holes and a removable check valve. The Liberty LCU-SP20S has a max head of 20' and a max capacity of 1 US Qt.


Features:
  • Built in safety switch
  • High impact ABS tank
  • Wall mounts
  • Three intake holes
  • 3/8" O.D. outlet
  • Barbed and threaded discharge connection
  • Removable Check valve
  • Stainless steel shaft

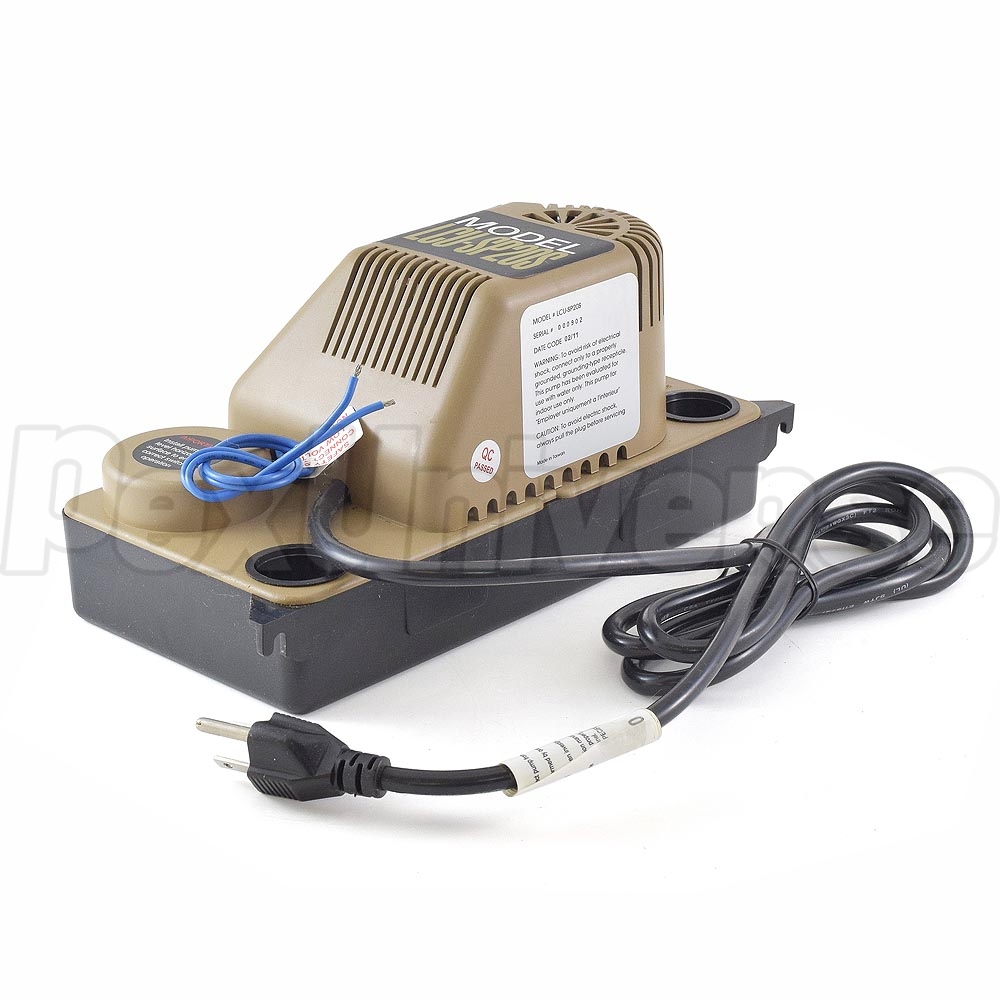

  • 6' power cord with ground
  • Thermally protected
  • Fully automatic
  • Quiet operation

Technical Specifications:
  • Horsepower: 1/30 HP
  • Cord length: 6'

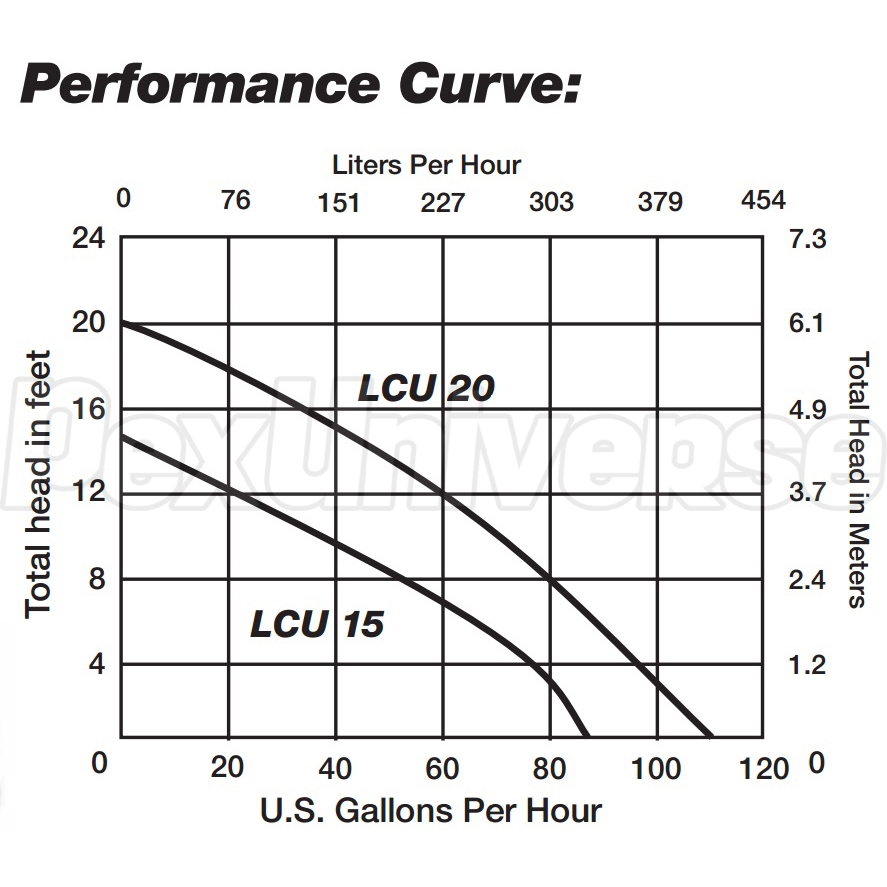

  • Max Lift: 20'
  • Max Recommended Lift: 17'
  • Voltage: 115V
  • Amps: 1.5
  • Hertz: 60 Hz
  • Maximum fluid temperature: 150°F
  • Height: 5"
  • Length: 11-1/8"
  • Width: 5"
  • Weight: 4.1 lbs.
  • Capacity: 1 US Qt.

Warranty:
3 years manufacturer's warranty
