Automatic Condensate Pump w/ Safety Switch, 6' cord, 1/30 HP, 115V
Brand: Liberty Pumps
Part#: LCU-20S
In Stock
Ship Pickup
Estimate delivery
Usually ships: within 1 business day
Pick Up available
$70.50 / each
See price in cart
Orders over $99 ship free

Description

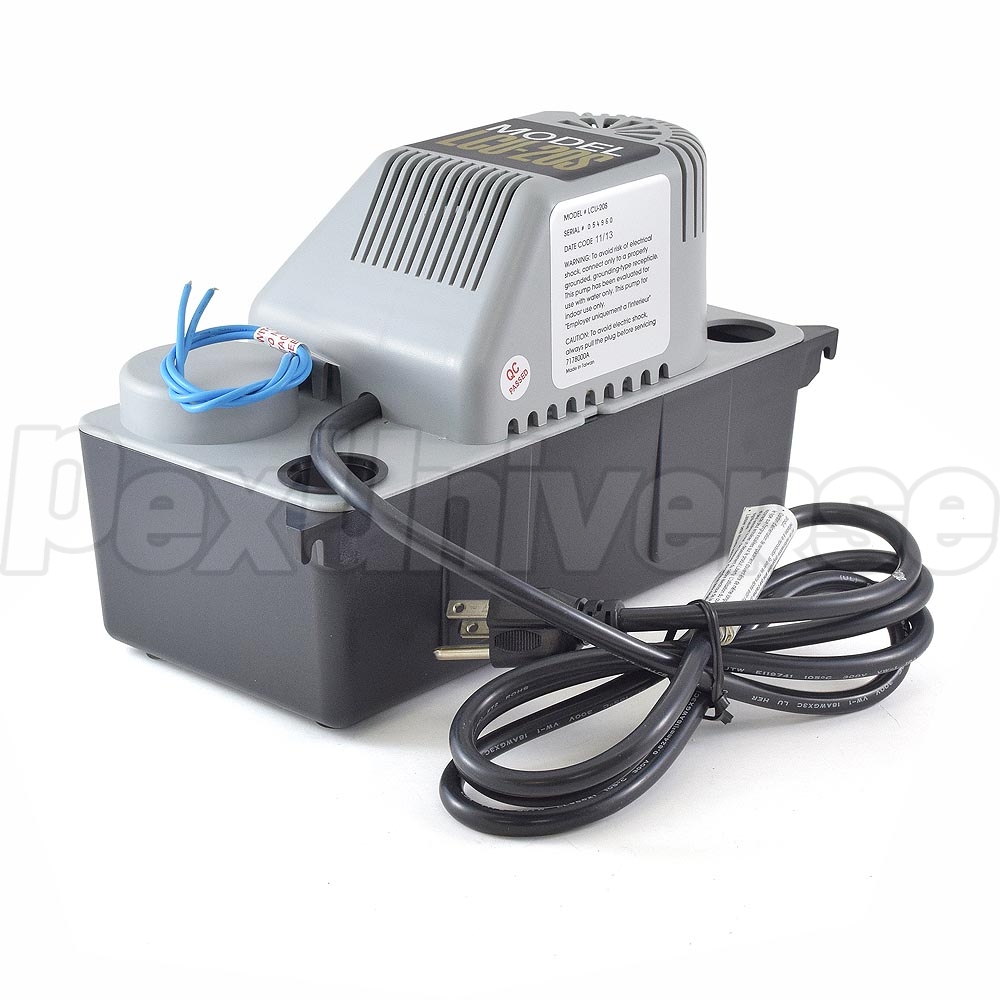

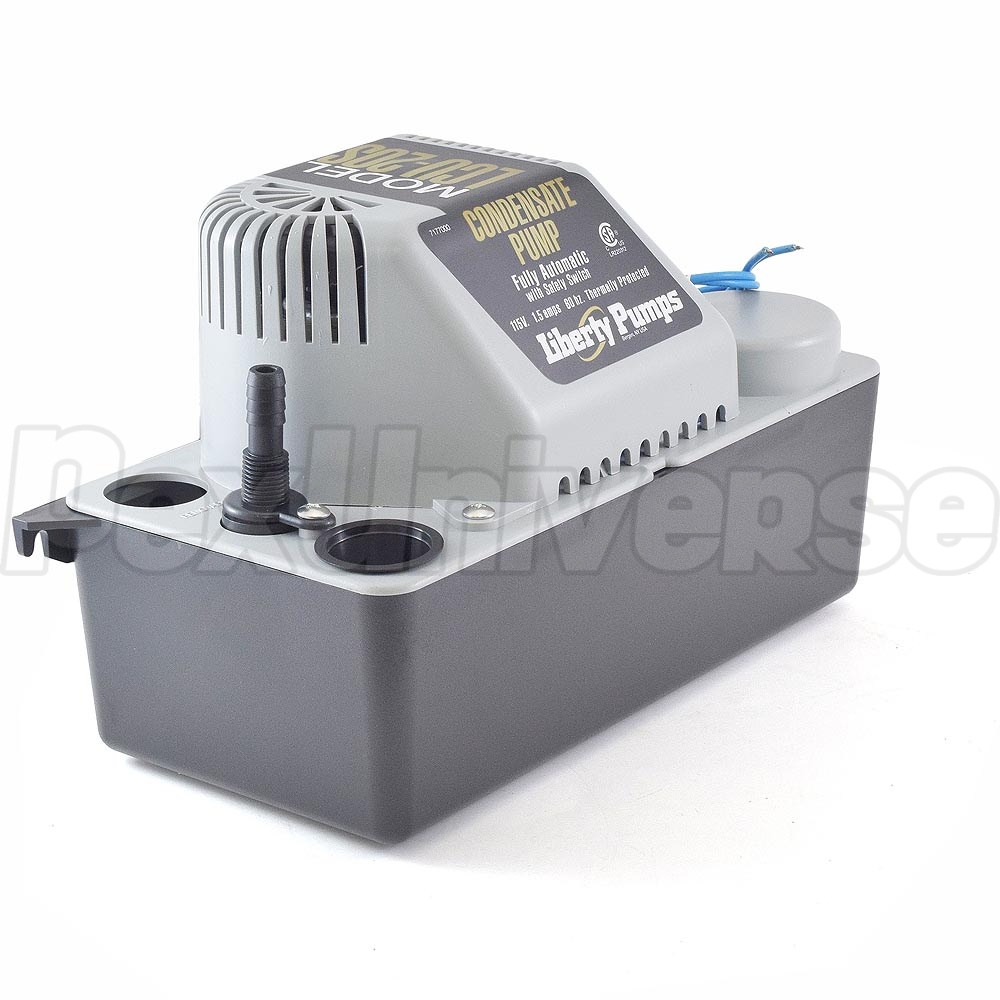

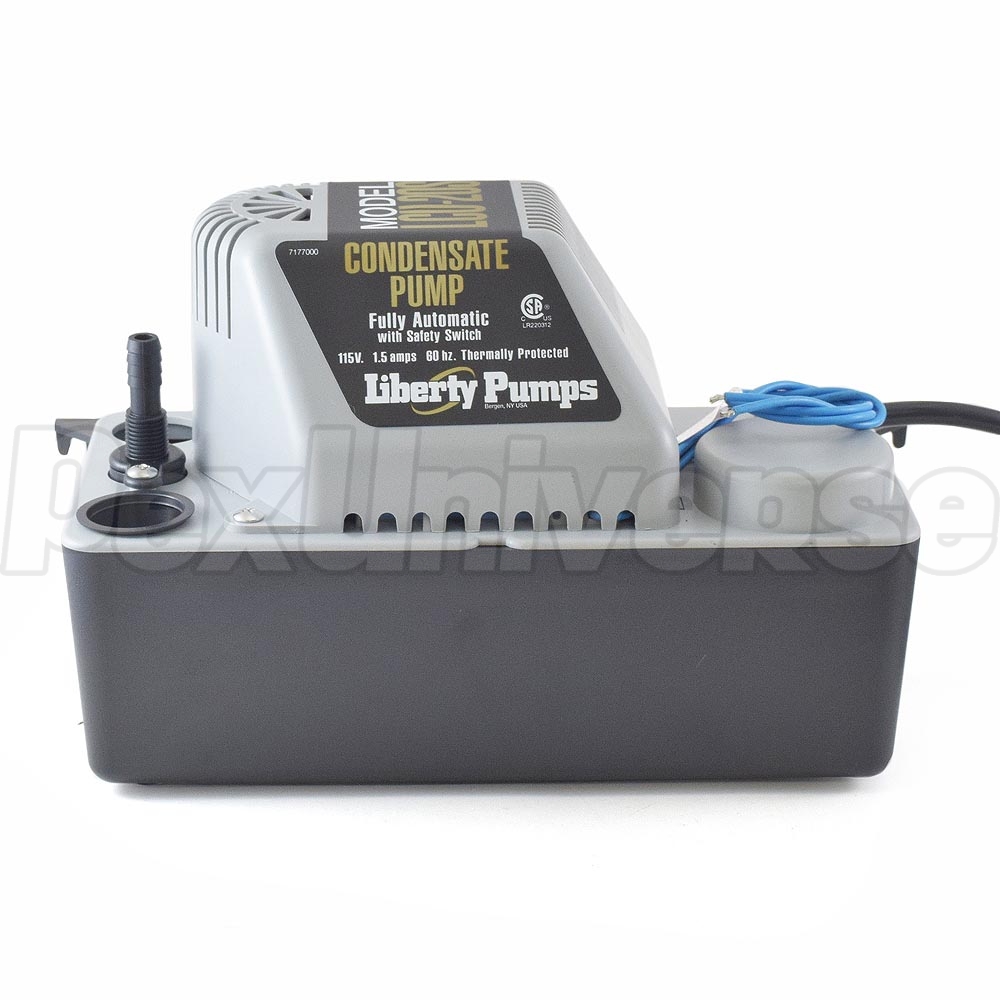

The Liberty LCU-20S Pump is a condensate removal pump with a 1/30HP, 115V motor and a safety switch. The Liberty LCU-20S is automatic, has a max head of 20' and a max capacity of 2 US Qt. This Liberty Pump was designed for the removal of condensate from high-efficiency furnaces, A/C equipment, ice machines, beverage machines, dehumidifiers, drinking fountains and other applications needing condensate removal. The Liberty Pump LCU-20S is also equipped with a high-impact ABS tank, wall mounts, three-intake holes and a removable check valve.


Features:
  • Built in safety switch
  • High impact ABS tank
  • Wall mounts
  • Three intake holes
  • 3/8" O.D. outlet
  • Barbed and threaded discharge connection
  • Removable Check valve
  • Stainless steel shaft
  • 6' power cord with ground
  • Thermally protected
  • Fully automatic
  • Quiet operation

Technical Specifications:
  • Horsepower: 1/30 HP
  • Cord length: 6'

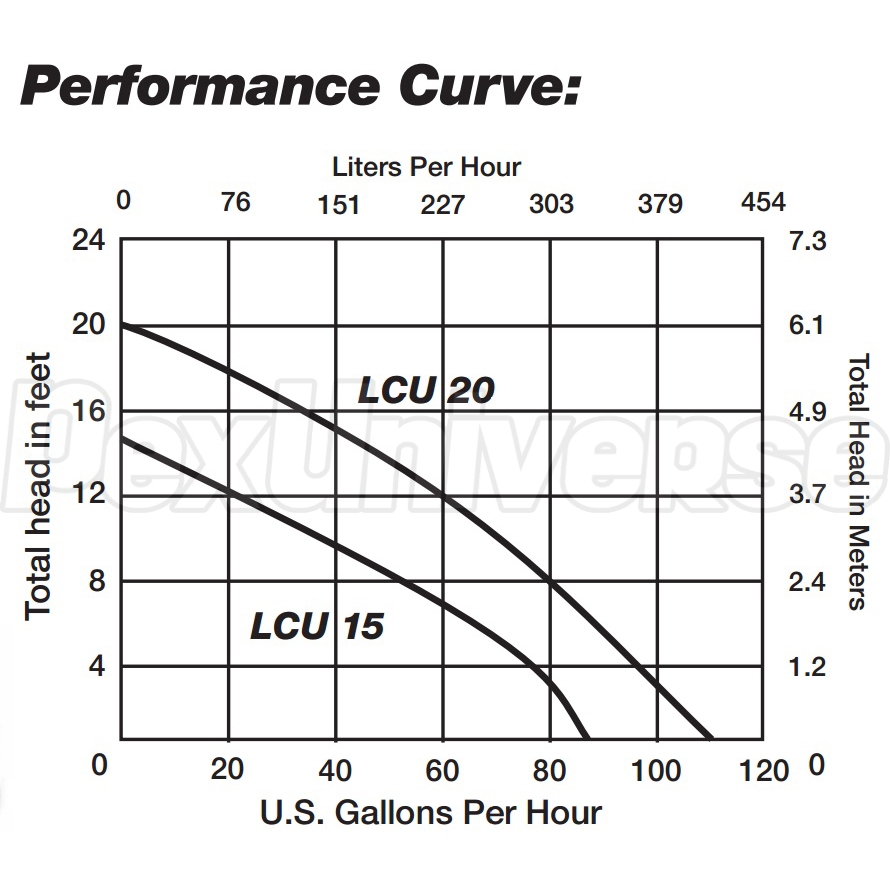

  • Max Lift: 20'
  • Max Recommended Lift: 17'
  • Voltage: 115V
  • Amps: 1.5
  • Hertz: 60 Hz
  • Maximum fluid temperature: 150°F
  • Height: 6.5"
  • Length: 11-1/8"
  • Width: 5"
  • Weight: 4.9 lbs.
  • Capacity: 2 US Qt.

Warranty:
3 years manufacturer's warranty

Documents

Write a Review
Helpful? Yes 1 No
Application
Original application on my furnace included pumping overflow from humidifier. Scale from humidifier quickly builds up on bottom of pump sump and prevents the float settling to the bottom position and cycling pump on and off properly. accordingly the pump will then run constantly. This is a good pump and it works as advertised. However, I would not use it on applications where high particulate contaminates are prevalent in the condensate water unless you want to be cleaning out the pump base several times a year.
By Dave B. (from Queen Anne, Maryland) on 05/08/2012
