Manual High Temperature Sump Pump (200F), 10' cord, 4/10 HP, 115V Liberty Pumps
Manual High Temperature Sump Pump (200F), 10' cord, 4/10 HP, 115V Liberty Pumps
Manual High Temperature Sump Pump (200F), 10' cord, 4/10 HP, 115V Liberty Pumps
Manual High Temperature Sump Pump (200F), 10' cord, 4/10 HP, 115V Liberty Pumps
Manual High Temperature Sump Pump (200F), 10' cord, 4/10 HP, 115V
Brand: Liberty Pumps
Part#: HT41M
Ship Pickup
Usually ships: within 5-7 business days
$446.25 / each
Free Shipping on any qty
See price in cart

Description

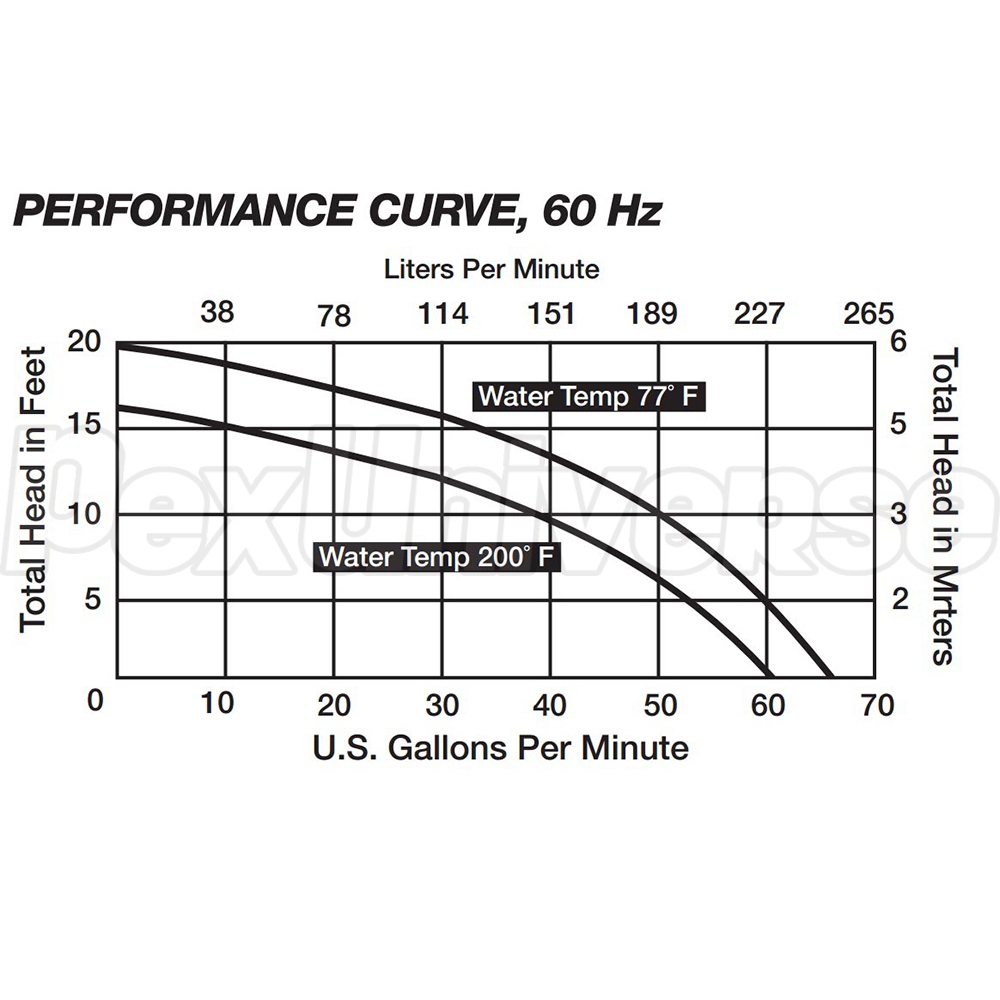

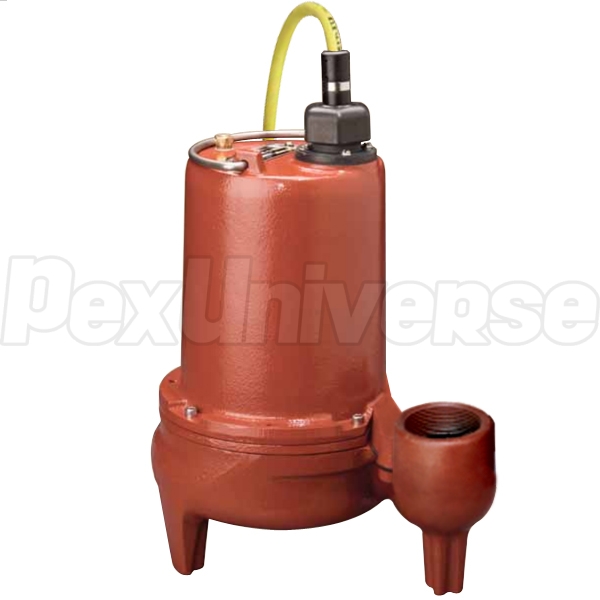

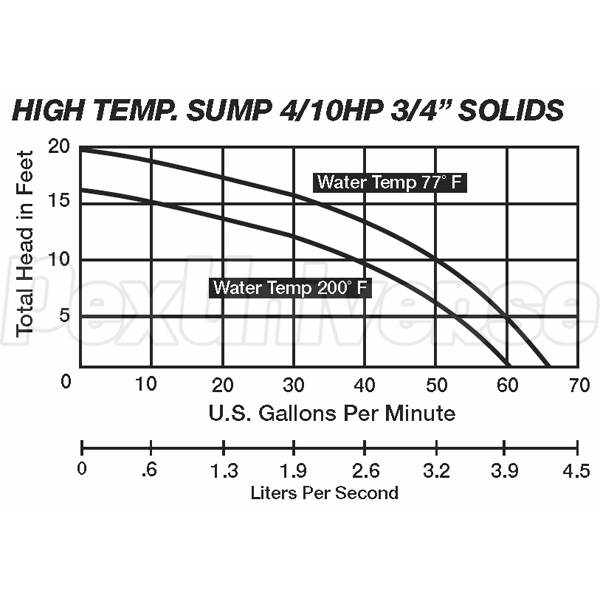

The Liberty Pump HT41M is a high temperature, manual submersible sump pump with a 4/10HP motor. This high temperature sump pump can handle liquid temperatures up to 200 degrees F. This high temperature, manual submersible sump pump can handle solids up 3/4" and has a 1-1/2" FNPT discharge. It is a manual sump pump and has no switch. This sump pump has a shut-off head of 16' at 200F water temperature and 20' at 77F. The Liberty HT41M high temperature sump pumps can a reach a maximum flow of 59 GPM.

The Liberty HT41M sump pump is designed for hot-water applications, such as boiler blow-down pits, condensate pits and high temperature water transfer. This Liberty sump pump also has cast iron construction with all stainless and brass fasteners, and a stainless steel rotor shaft that provides ultimate performance and reliability.


Features:
  • Vortex impeller, made of high temperature engineered thermoplastic, permits passage of solids without clogging
  • Cast iron construction with all stainless and brass fasteners
  • 416 stainless steel rotor shaft
  • Oil-filled, thermally protected motor
  • Permanently lubricated bearings
  • Unitized shaft seal
  • 10' U.L. approved power cord with quick disconnect design
  • 1-1/2" FNPT discharge

Technical Specifications:
  • Horsepower: 4/10 HP
  • Automatic: No
  • Discharge: 1 1/2" FNPT
  • Solids Handling: 3/4"
  • Voltage: 115V
  • Phase: 1
  • Full load amps: 12
  • Locked rotor amps: 23
  • Thermal overload temp: 302F
  • Stator winding class: F
  • Cord lenth: 10'
  • Weight: 38 lbs
  • Height: 9.6"
  • Major Width: 9.8"
  • Maximum fluid temperature: 200F

Warranty:
3 years manufacturer's warranty
