Automatic High Temperature Sump Pump (200F) w/ Piggyback Wide Angle Float Switch, 25' cord, 4/10 HP, 115V Liberty Pumps
Automatic High Temperature Sump Pump (200F) w/ Piggyback Wide Angle Float Switch, 25' cord, 4/10 HP, 115V
Brand: Liberty Pumps
Part#: HT41A-2
In Stock
Pick Up ready by {{ pickupBy }}
Usually ready: within 1 hour

Description

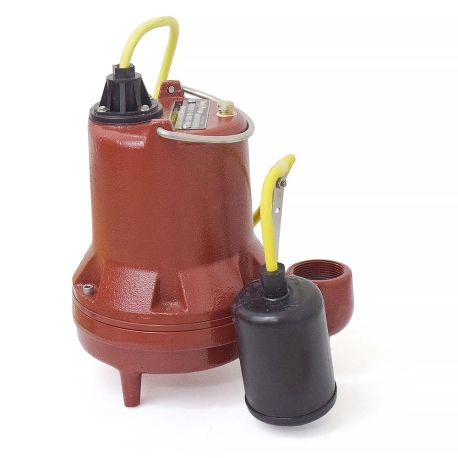

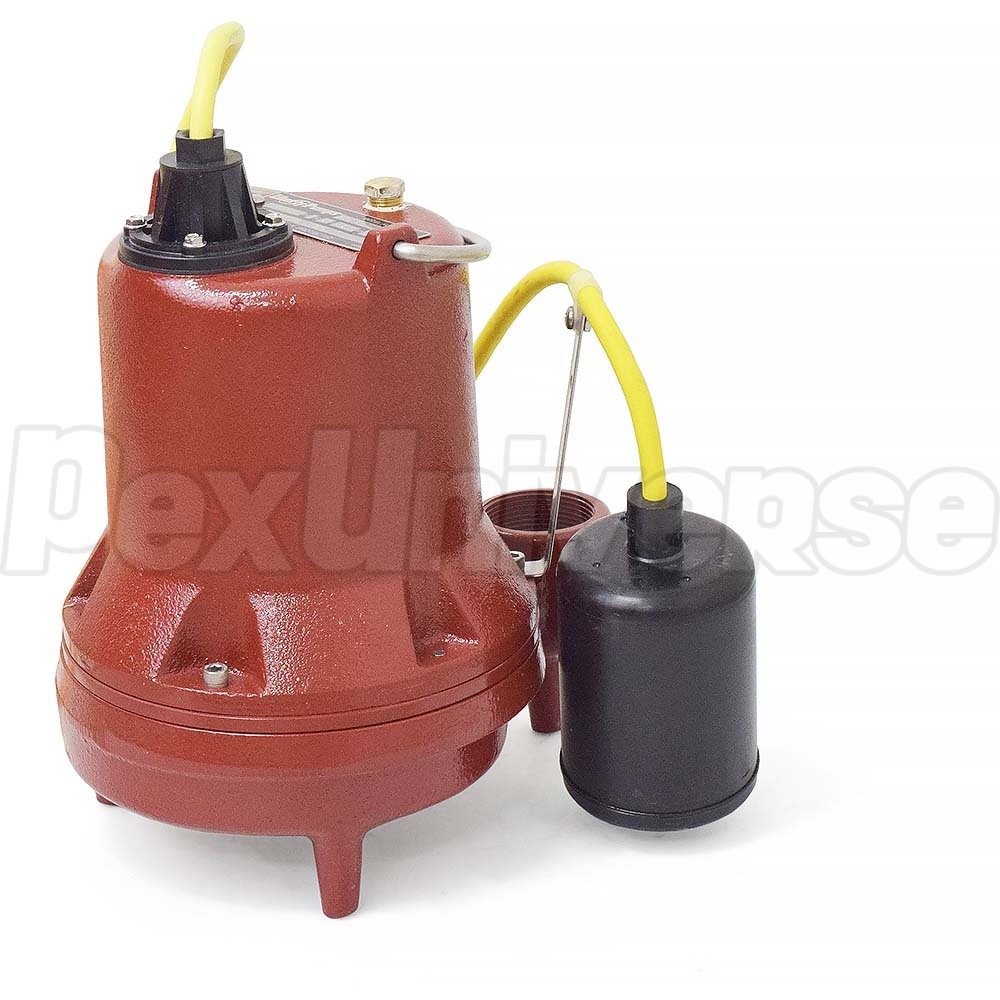

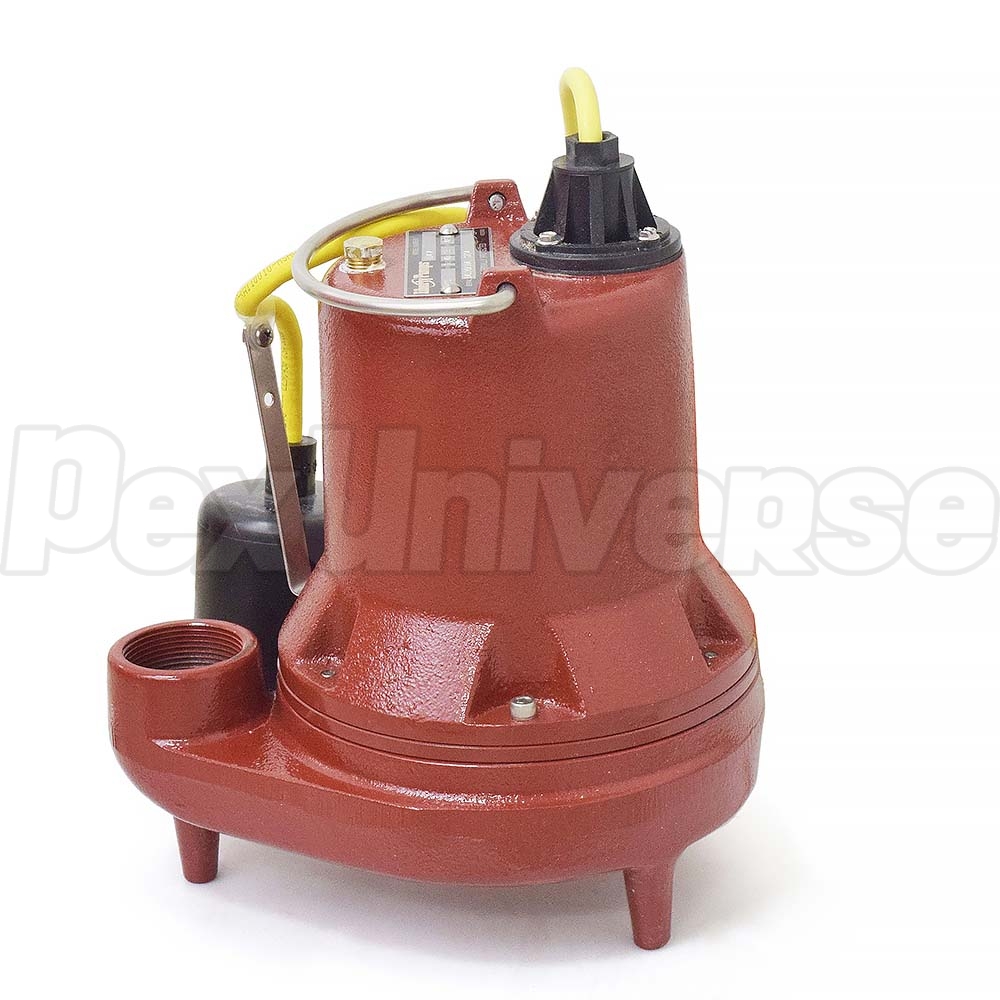

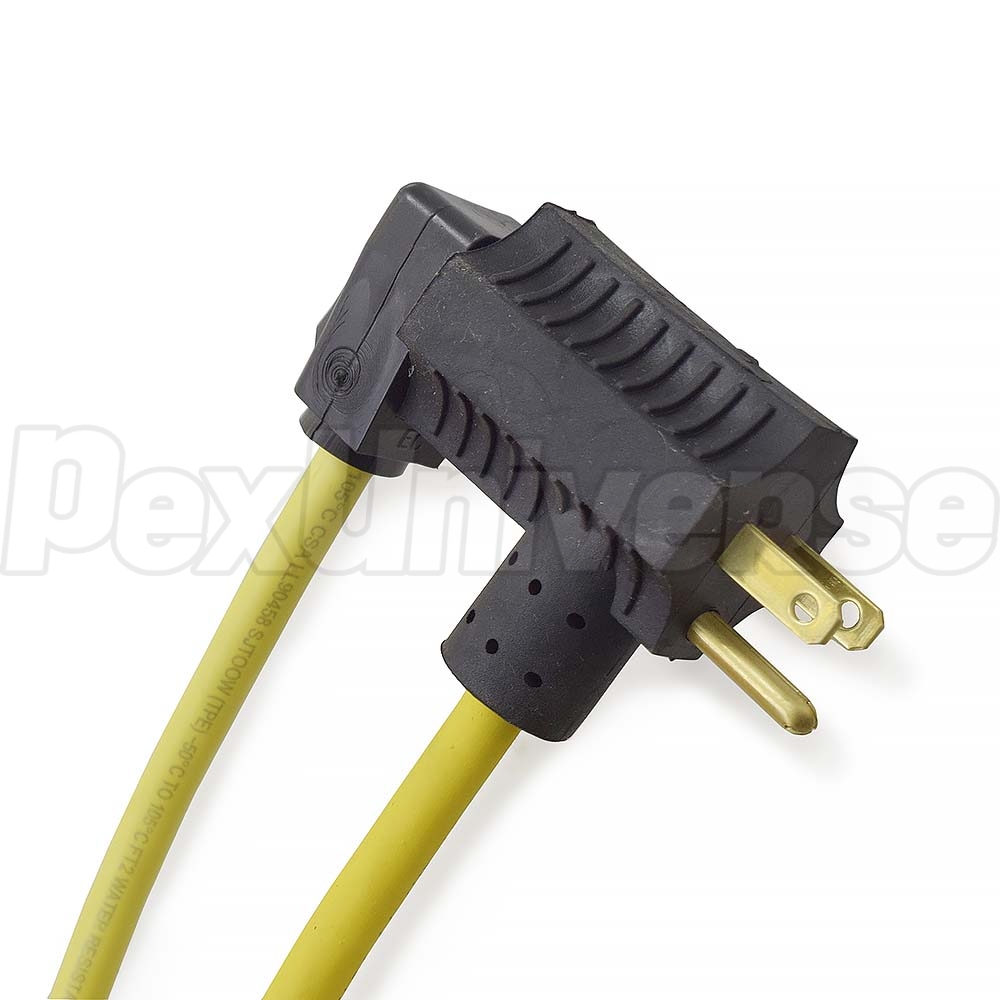

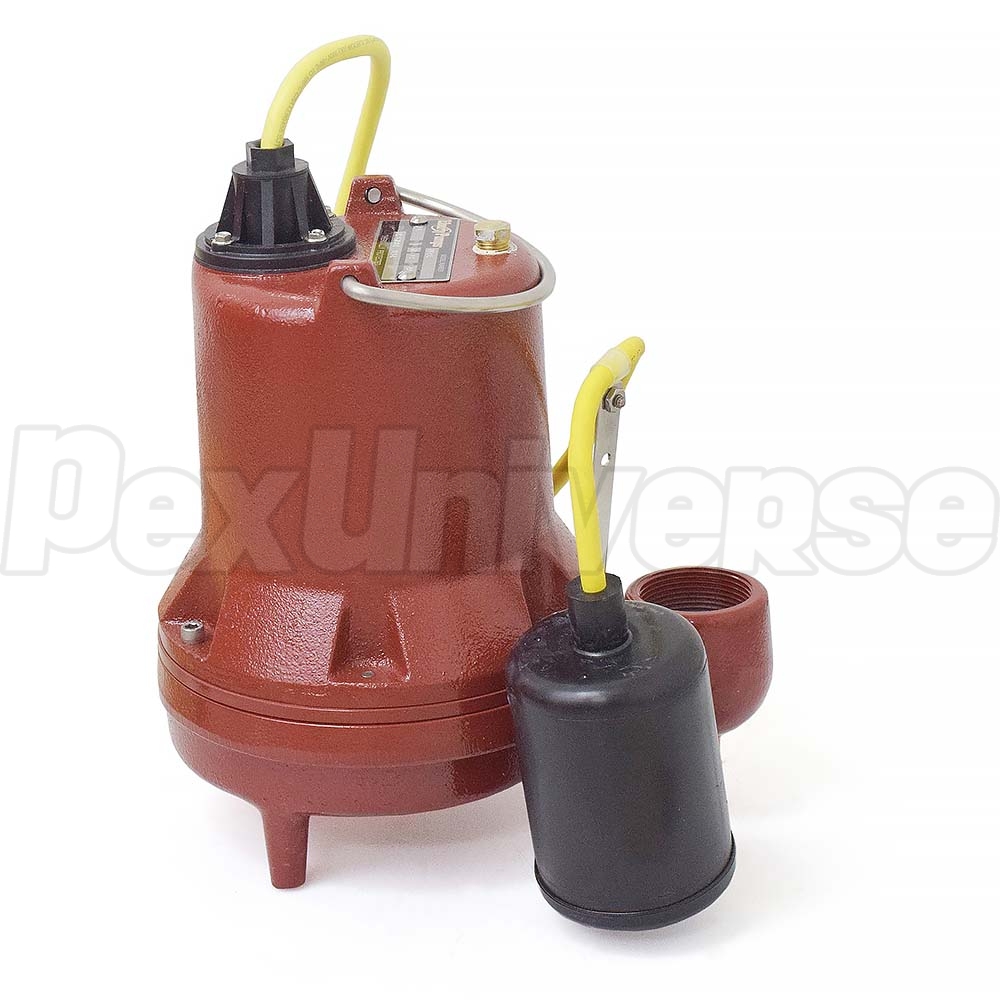

The Liberty HT41A-2 Pump is a high temperature, automatic submersible sump pump with a 4/10HP motor. The Liberty HT41A-2 sump pump is designed for hot-water applications, such as boiler blow-down pits, condensate pits and high temperature water transfer. This Liberty sump pump comes with a 25-ft. power cord and can handle liquid temperatures up to 200 ° F. It also comes with a series plug for manual by-pass operation.

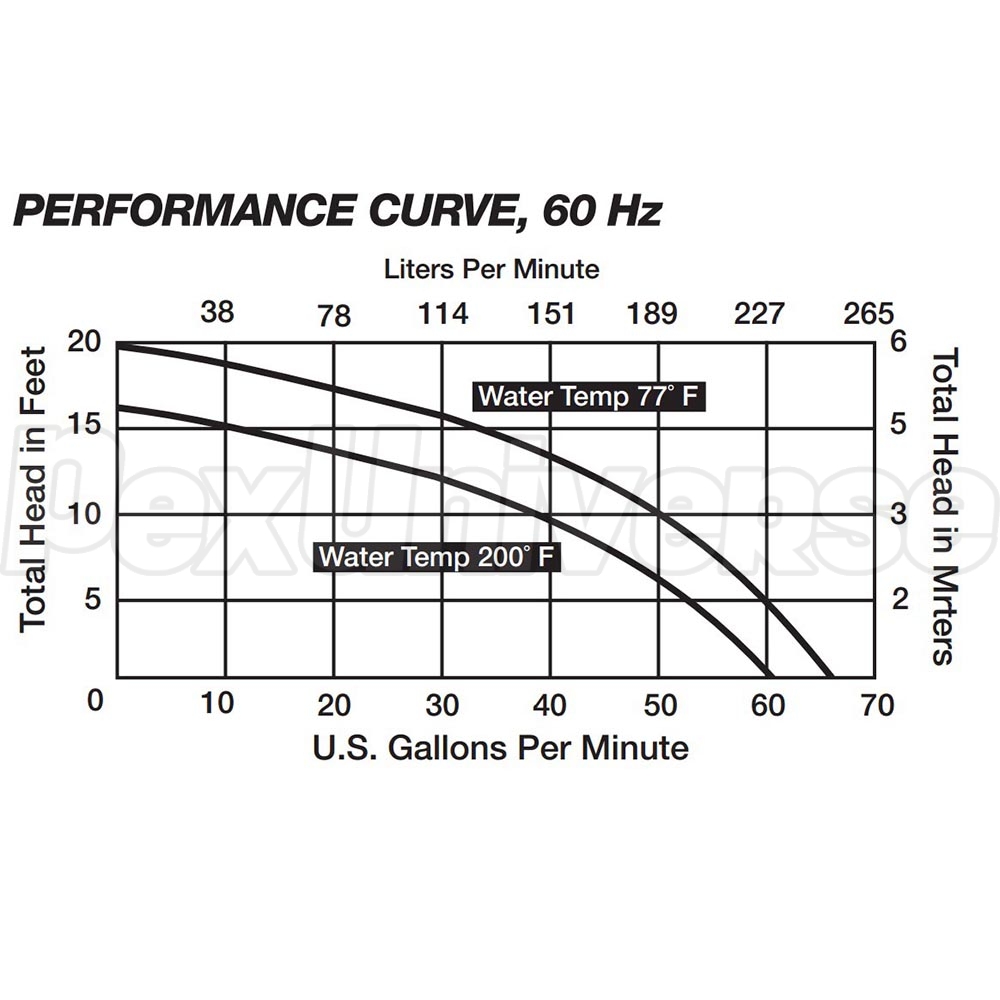

This high temperature, automatic submersible sump pump can handle solids up 3/4" and has a 1-1/2" FNPT discharge. It has a shut-off head of 16' at 200F water temperature and 20' at 77F. The Liberty HT41A-2 high temperature sump pumps can a reach a maximum flow of 59 GPM. This Liberty sump pump also has cast iron construction with all stainless and brass fasteners, and a stainless steel rotor shaft that provides ultimate performance and reliability.


Features:
  • Vortex impeller, made of high temperature engineered thermoplastic, permits passage of solids without clogging
  • Cast iron construction with all stainless and brass fasteners
  • 416 stainless steel rotor shaft
  • Oil-filled, thermally protected motor
  • Permanently lubricated bearings
  • Unitized shaft seal
  • 25' U.L. approved power cord with quick disconnect design
  • 1-1/2" FNPT discharge

Technical Specifications:
  • Horsepower: 4/10 HP
  • Automatic: Yes
  • Discharge: 1 1/2" FNPT
  • Solids Handling: 3/4"
  • Voltage: 115V
  • Phase: 1
  • Full load amps: 12
  • Locked rotor amps: 23
  • Thermal overload temp: 302F
  • Stator winding class: F
  • Cord lenth: 25'
  • Weight: 39 lbs
  • Height: 9.6"
  • Major Width: 9.8"
  • Maximum fluid temperature: 200F

Warranty:
3 years manufacturer's warranty
