Manual Effluent Pump, 10' cord, 6/10 HP, 208/230V Liberty Pumps
Manual Effluent Pump, 10' cord, 6/10 HP, 208/230V
Brand: Liberty Pumps
Part#: FL62M
This product has been discontinued. No direct replacement is available at this time.

Description

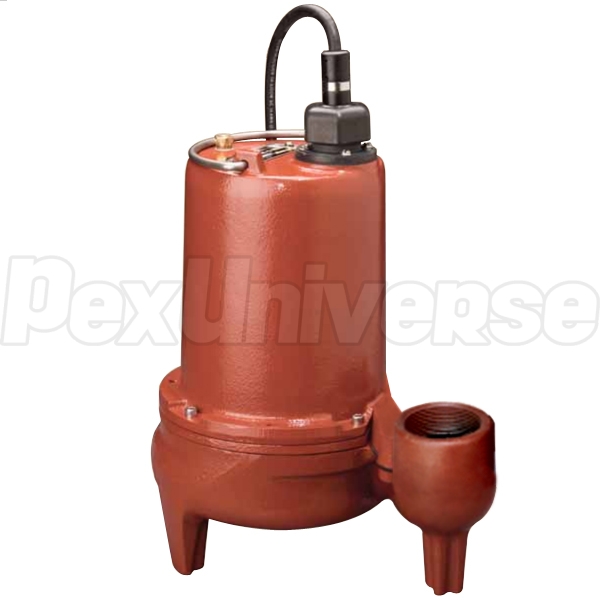

The Liberty Pump FL62M is a manual submersible effluent sump pump with a 6/10 HP, 230V motor and a 10' quick disconnect power cord. The Liberty Pump FL62M manual submersible sump/effluent pump is ideal for high-head applications and has a shut-off head of 63'. Semi-open impellers, on the Liberty FL62M, permit the passage of 1/2" solids without clogging. This effluent sump pump has a discharge of 1-1/2"FNPT.

These effluent sump pumps are designed for STEP systems, liquid waste transfer and higher head de-watering applications. This sump/effluent pump is intended to be run using an approved liquid level control or approved motor control. Regardless of the control type, be sure that when the pump shuts off, at least 3-1/2" of fluid is left in the basin so the impeller remains submerged.


Features:
  • Semi-open impeller permits passageof solids without clogging
  • Cast iron construction with all stainless and brass fasteners
  • 416 stainless steel rotor shaft
  • Oil-filled, hermetically sealed motors with thermal overload protection
  • Permanently lubricated upper and lower ball bearings
  • Unitized, carbon and ceramic shaft seal
  • Single float, mercury-free level control with series plug for manual bypass operation - standard on automatic models
  • Adjustable pumping range
  • 1-1/2" FNPT discharge
  • Quick-disconnect 10' standard power cord allows replacement of cord in seconds without breaking seals to motor

Technical Specifications:
  • Horsepower: 6/10 HP
  • Cord length: 10'
  • Discharge: 1-1/2" FNPT
  • Solids Handling: up to 1/2"
  • Shut-off Head: 63'
  • Voltage: 208-230V
  • Amps: 7
  • Hertz: 60 Hz
  • Phase: 1
  • Maximum fluid temperature: 140°F
  • Height: 13.75"
  • Width: 10.25"
  • Weight: 57 lbs.
  • Minimum pit/basin diameter: 14" in Sump and 18" in Effluent applications
  • Minimum pit/basin depth: 18" in Sump and 24" in Effluent applications

Warranty:
3 years manufacturer's warranty
