Automatic Effluent Pump w/ Piggyback Wide Angle Float Switch, 10' cord, 1/2 HP, 208/230V Liberty Pumps
Automatic Effluent Pump w/ Piggyback Wide Angle Float Switch, 10' cord, 1/2 HP, 208/230V
Brand: Liberty Pumps
Part#: FL52A
Usually ships: within 5-7 business days

Description

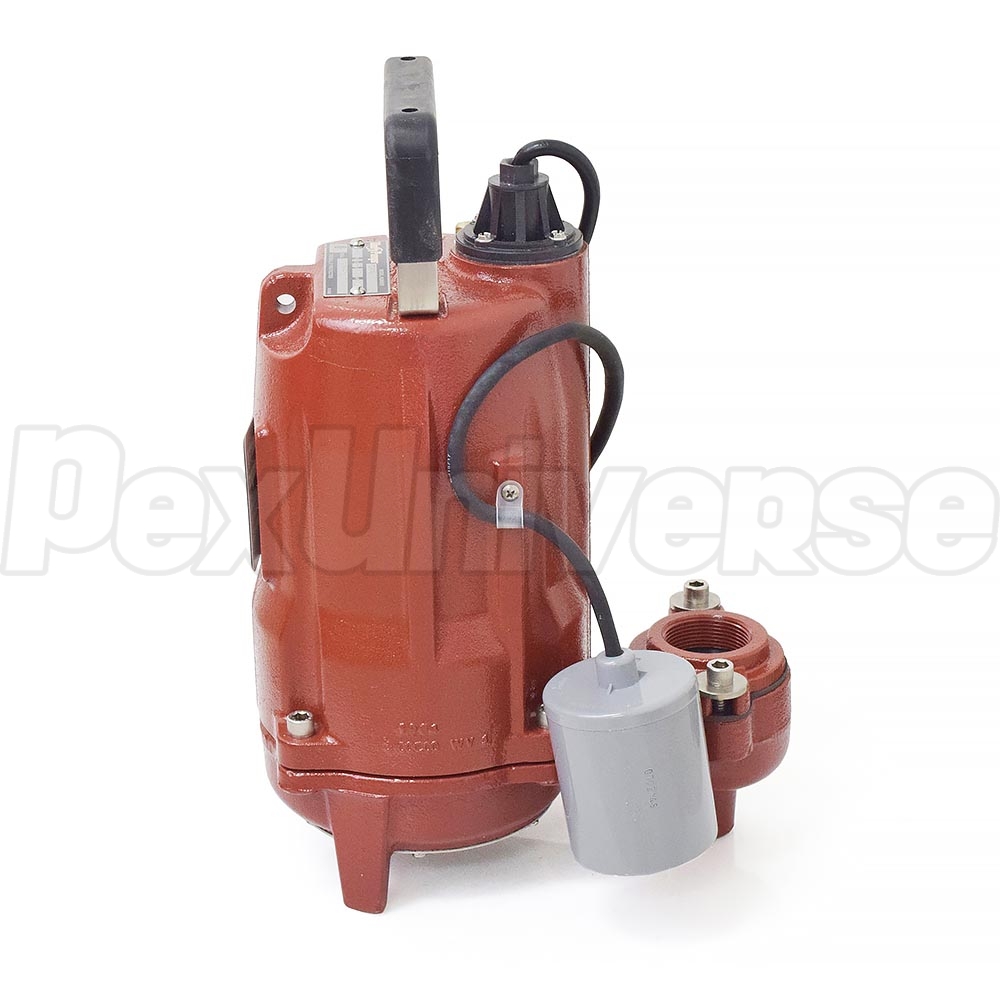

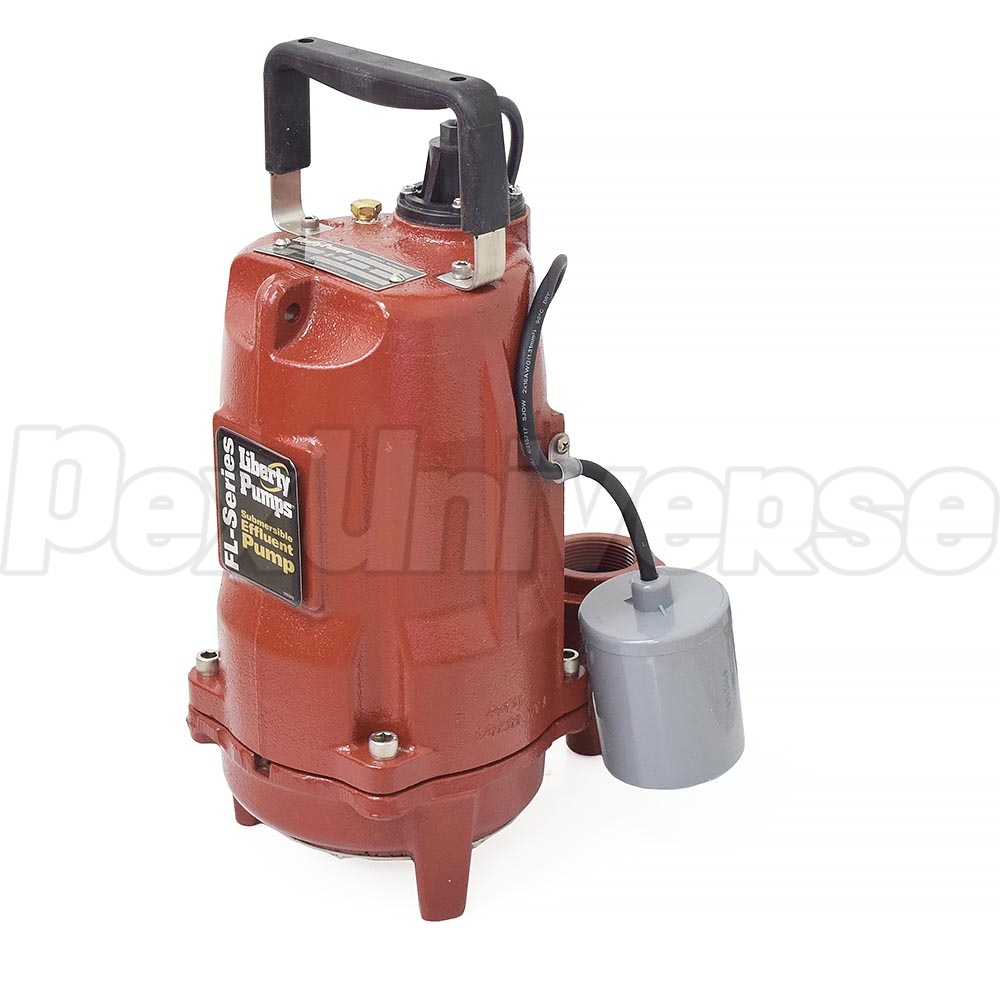

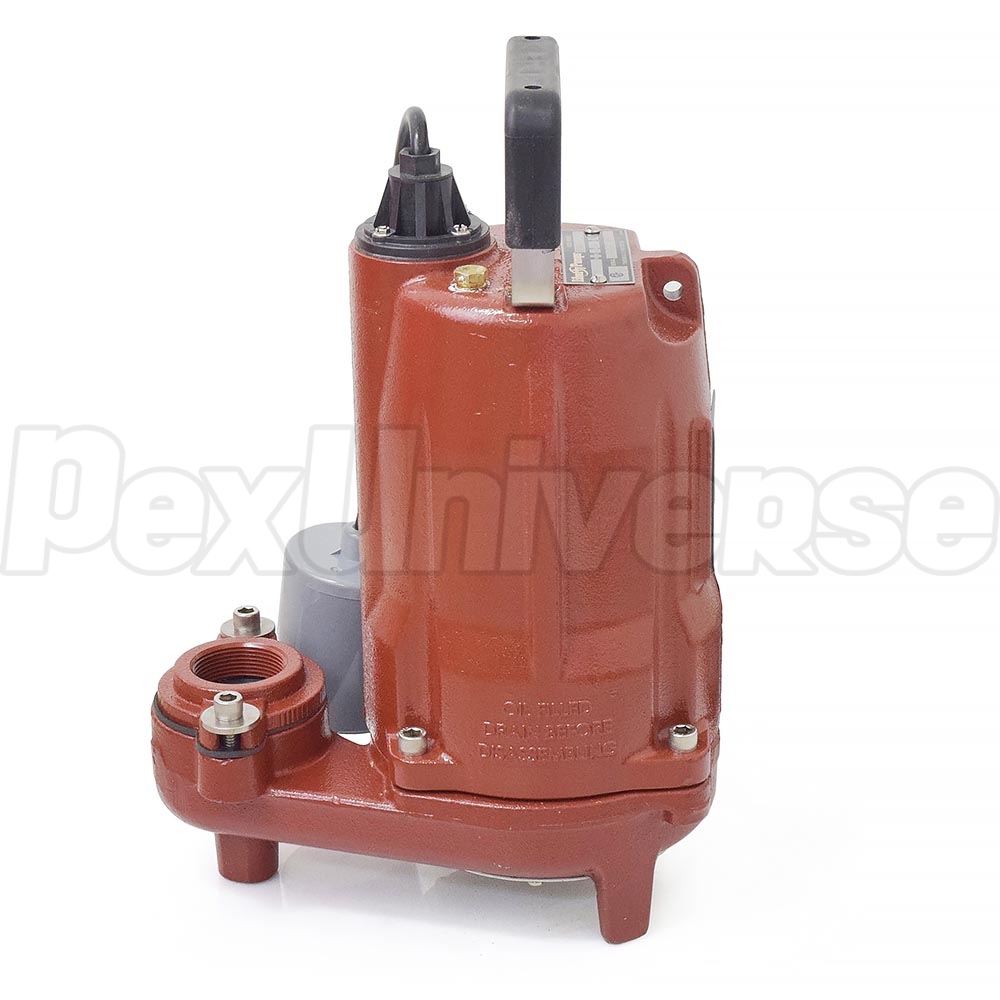

The Liberty Pump FL52A is an automatic submersible effluent sump pump with a 1/2 HP, 230V motor and a 10' quick disconnect power cord. This sump/effluent pump is equipped with an adjustable, mercury-free switch that has a series (piggy-back) plug for manual bypass operation. The switch has a turn-on level of 12" and turn-off level of 5". Semi-open impellers, on the Liberty FL52A, permit the passage of 1/2" solids without clogging. This effluent sump pump has a discharge of 1-1/2"FNPT.

The Liberty Pump FL52A automatic submersible sump/effluent pump is ideal for mid-range applications and has a shut-off head of 48'. These effluent sump pumps are designed for STEP systems, liquid waste transfer and higher head de-watering applications.


Features:

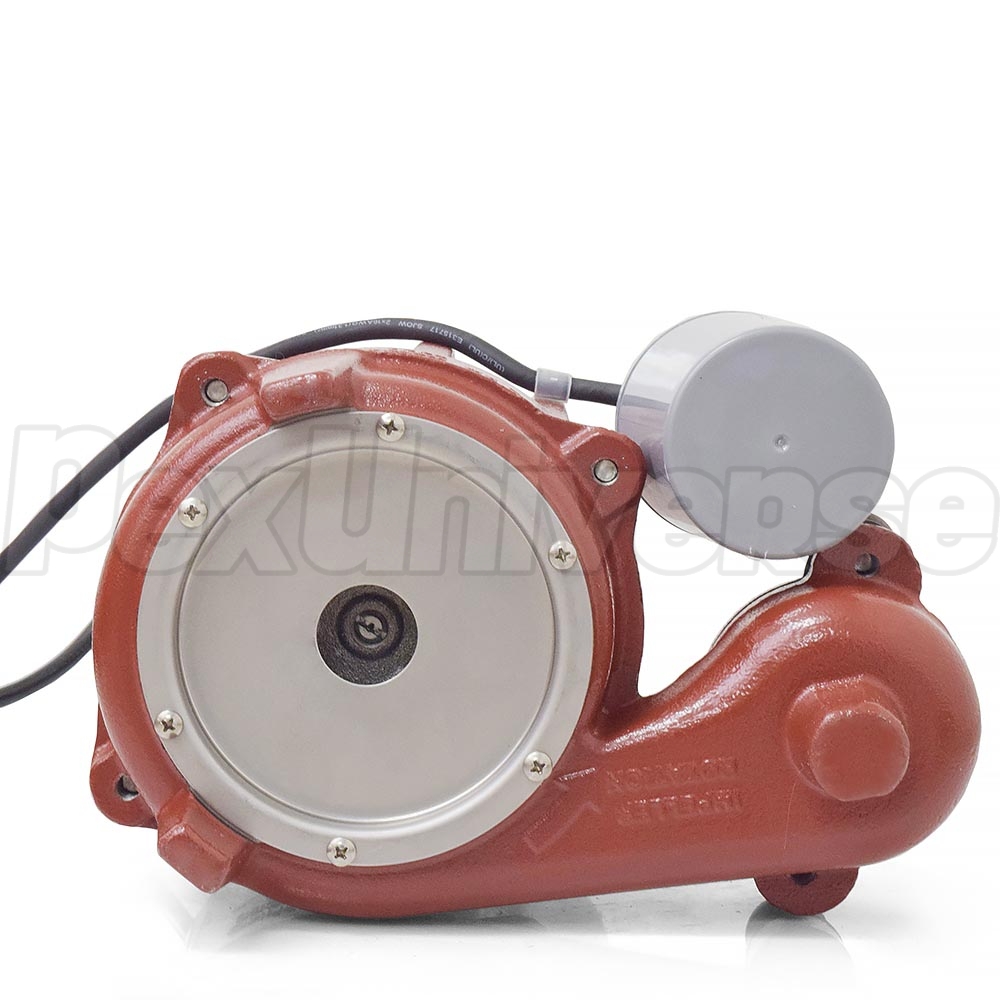

  • Semi-open impeller permits passageof solids without clogging
  • Cast iron construction with all stainless and brass fasteners
  • 416 stainless steel rotor shaft
  • Oil-filled, hermetically sealed motors with thermal overload protection
  • Permanently lubricated upper and lower ball bearings
  • Unitized, carbon and ceramic shaft seal
  • Single float, mercury-free level control with series plug for manual bypass operation - standard on automatic models
  • Adjustable pumping range
  • 1-1/2" FNPT discharge
  • Quick-disconnect 10' standard power cord allows replacement of cord in seconds without breaking seals to motor

Technical Specifications:
  • Horsepower: 1/2 HP
  • Cord length: 10'
  • Discharge: 1-1/2" FNPT
  • Solids Handling: up to 1/2"

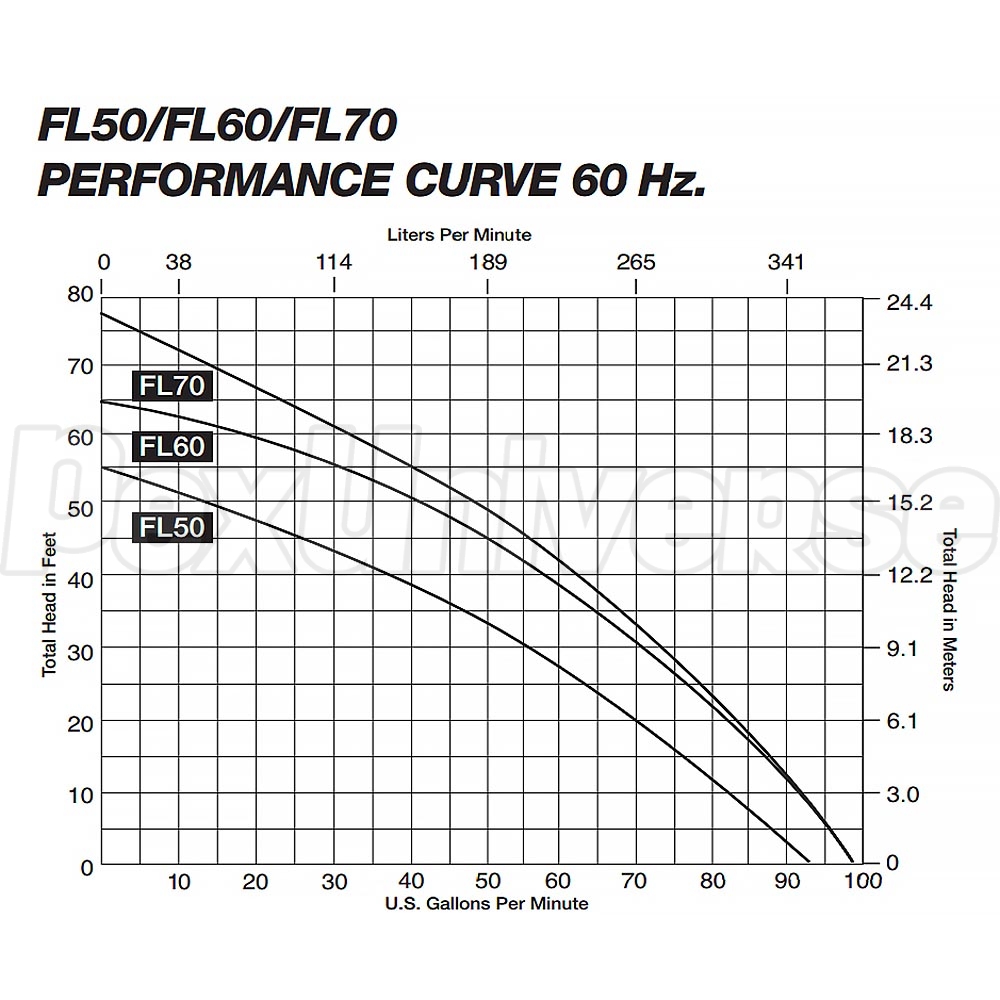

  • Shut-off Head: 48'
  • Voltage: 208-230V
  • Amps: 7
  • Hertz: 60 Hz
  • Phase: 1
  • Maximum fluid temperature: 140°F
  • Height: 13.75"
  • Width: 10.25"
  • Weight: 57 lbs.
  • Minimum pit/basin diameter: 14" in Sump and 18" in Effluent applications
  • Minimum pit/basin depth: 18" in Sump and 24" in Effluent applications

Warranty:
3 years manufacturer's warranty
