Manual Effluent Pump, 10' cord, 1/2 HP, 115V Liberty Pumps
Manual Effluent Pump, 10' cord, 1/2 HP, 115V
Brand: Liberty Pumps
Part#: FL51M
In Stock
Pick Up ready by {{ pickupBy }}
Usually ready: within 1 hour

Description

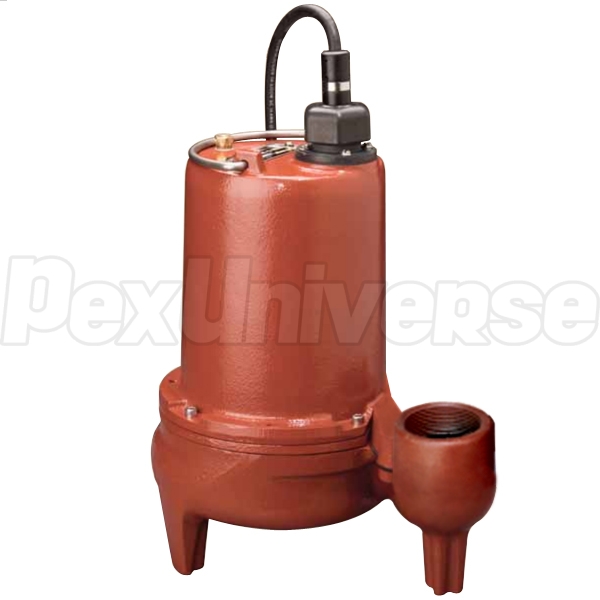

The Liberty Pump FL51M is a manual submersible effluent sump pump with a 1/2 HP, 115V motor and a 10' quick disconnect power cord. This sump/effluent pump is intended to be run using an approved liquid level control or approved motor control with correct rating that matches motor input in full load amperes. Regardless of the control type, be sure that when the Liberty FL51M effluent sump pump shuts off, at least 3-1/2" of fluid is left in the basin so the impeller remains submerged. Semi-open impellers, on the Liberty FL51A, permit the passage of 1/2" solids without clogging. This effluent sump pump has a discharge of 1-1/2"FNPT.

The Liberty Pump FL51M manual submersible sump/effluent pump is ideal for mid-range applications and has a shut-off head of 48'. These effluent sump pumps are designed for STEP systems, liquid waste transfer and higher head de-watering applications.


Features:
  • Semi-open impeller permits passageof solids without clogging
  • Cast iron construction with all stainless and brass fasteners
  • 416 stainless steel rotor shaft
  • Oil-filled, hermetically sealed motors with thermal overload protection
  • Permanently lubricated upper and lower ball bearings
  • Unitized, carbon and ceramic shaft seal
  • Single float, mercury-free level control with series plug for manual bypass operation - standard on automatic models
  • Adjustable pumping range
  • 1-1/2" FNPT discharge
  • Quick-disconnect 10' standard power cord allows replacement of cord in seconds without breaking seals to motor

Technical Specifications:
  • Horsepower: 1/2 HP
  • Cord length: 10'
  • Discharge: 1-1/2" FNPT
  • Solids Handling: up to 1/2"
  • Shut-off Head: 48'
  • Voltage: 115V
  • Amps: 12
  • Hertz: 60 Hz
  • Phase: 1
  • Maximum fluid temperature: 140°F
  • Height: 13.75"
  • Width: 10.25"
  • Weight: 57 lbs.
  • Minimum pit/basin diameter: 14" in Sump and 18" in Effluent applications
  • Minimum pit/basin depth: 18" in Sump and 24" in Effluent applications

Warranty:
3 years manufacturer's warranty
