Automatic Effluent Pump w/ Piggyback Wide Angle Float Switch, 10' cord, 1/3 HP, 208/230V Liberty Pumps
Automatic Effluent Pump w/ Piggyback Wide Angle Float Switch, 10' cord, 1/3 HP, 208/230V
Brand: Liberty Pumps
Part#: FL32A
Usually ships: within 5-7 business days

Description

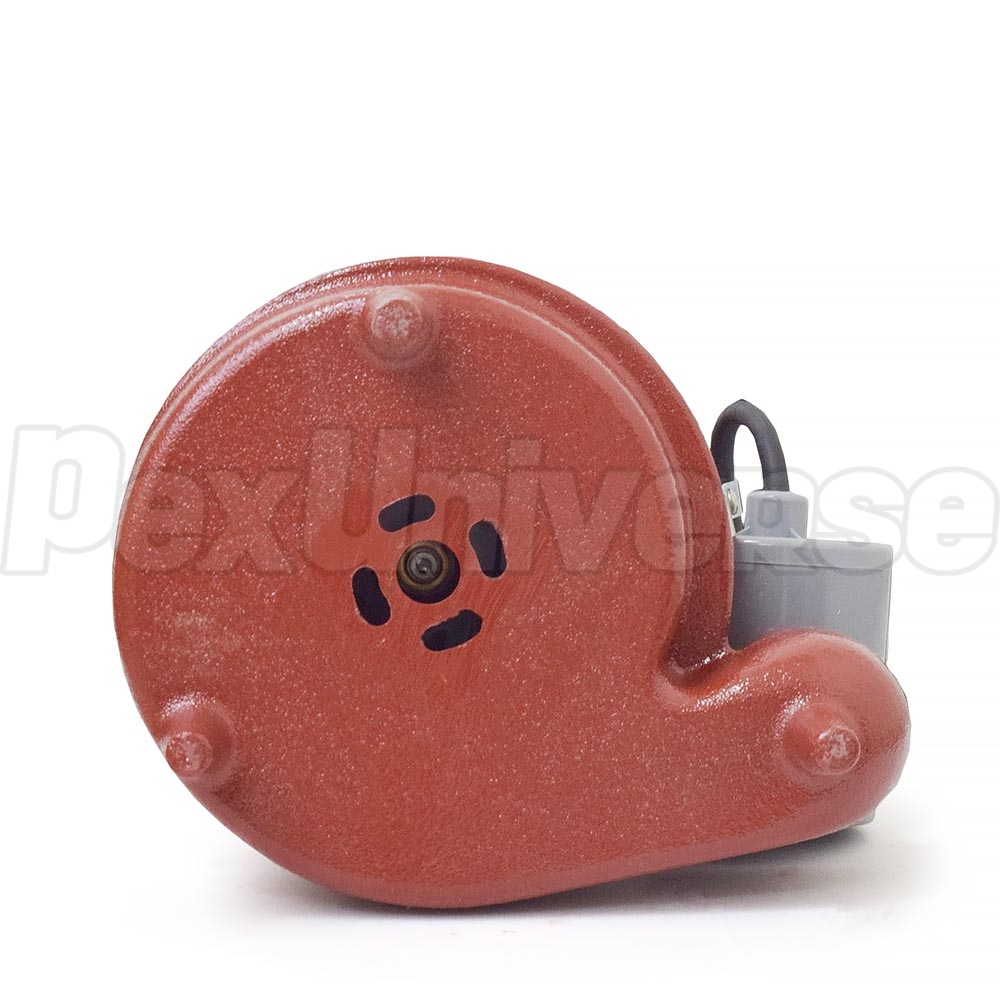

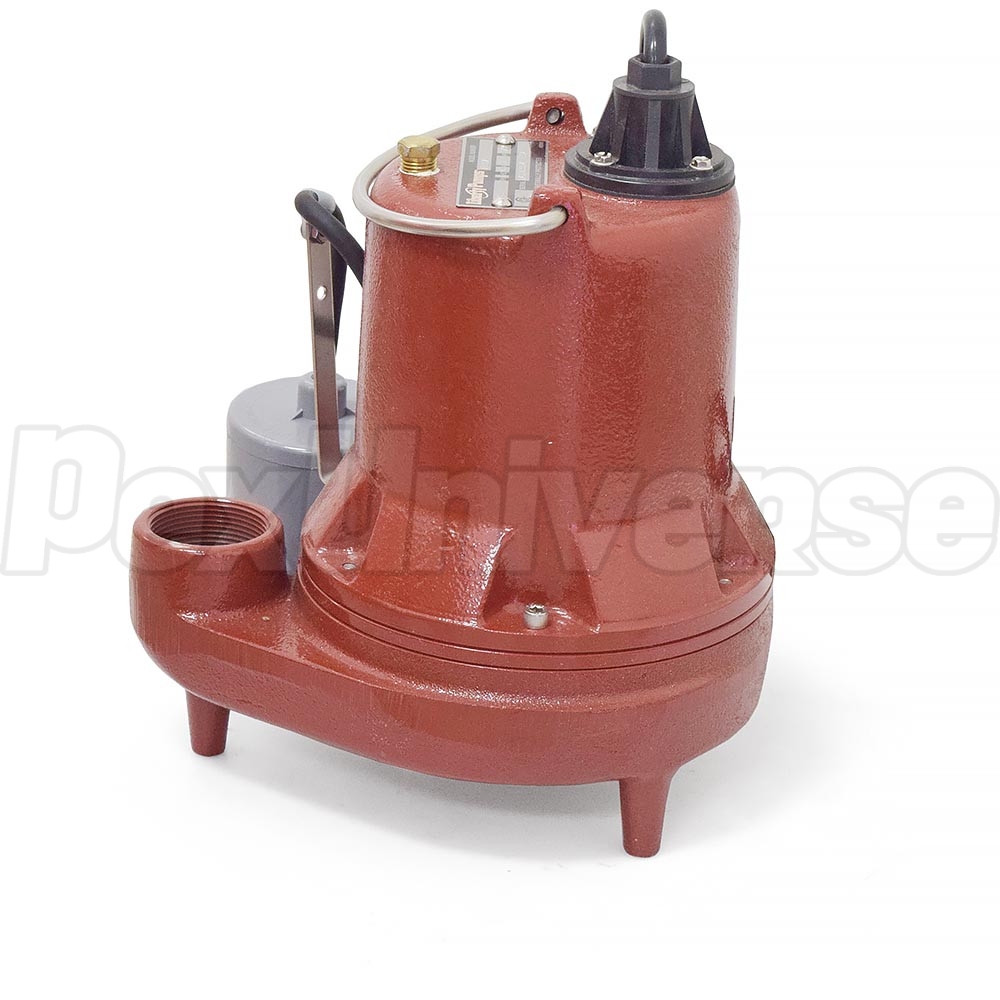

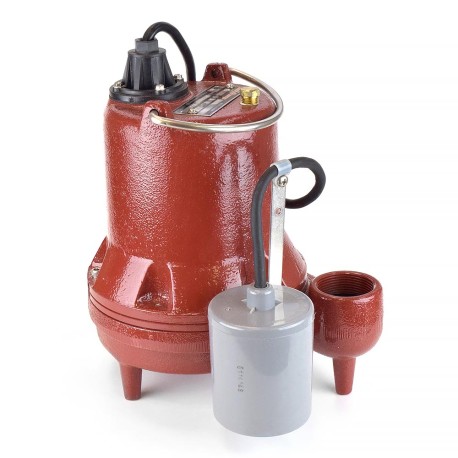

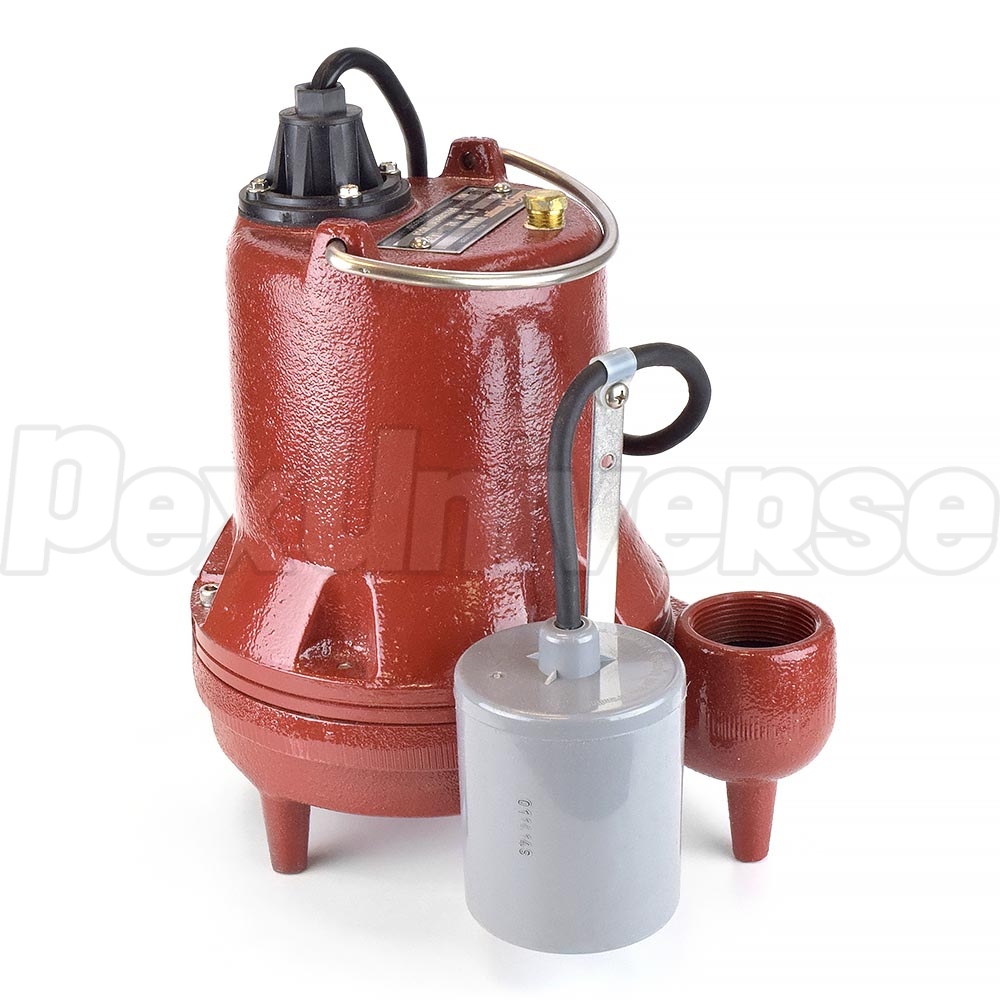

The Liberty Pump FL32A is an automatic submersible effluent sump pump with a high voltage capability. The Liberty FL32A has wide angle float switch equipped with a series (piggyback) plug for manual bypass operation. This submersible effluent/sump pump has a 1/3HP, 230 V motor that is enclosed in a cast-iron housing and a 10' power cord. The Liberty Pump FL32A features vortex style impeller made of high temperature engineering polymer, which allows for 3/4" solids handling. This sump/effluent pump can handle liquids up 140F and has a 19' shut off head.

The Liberty FL32A submersible effluent sump pump has a discharge of 1-1/2" NPT. It also has a turn-on level of 12" and shut-off level of 5". The minimum pit diameter on this sump/effluent pump is 14" in sump conditions and 18" in effluent conditions. The Liberty FL32A was specifically designed for STEP Systems, LPP Systems, Mound Systems, Liquid Waste Transfer and Commercial Sump Applications. This pump should not be run dry.


Features:
  • Vortex impeller, made of high temperature engineering polymer, permits passage of solids without clogging
  • 416 stainless steel rotor shaft
  • Oil-filled, thermally protected motor
  • Unitized shaft seal
  • 1-1/2" FNPT discharge
  • Quick-disconnect 10' standard power

Technical Specifications:
  • Horsepower: 1/3 HP
  • Cord length: 10'
  • Discharge: 1-1/2" FNPT
  • Solids Handling: up to 3/4"

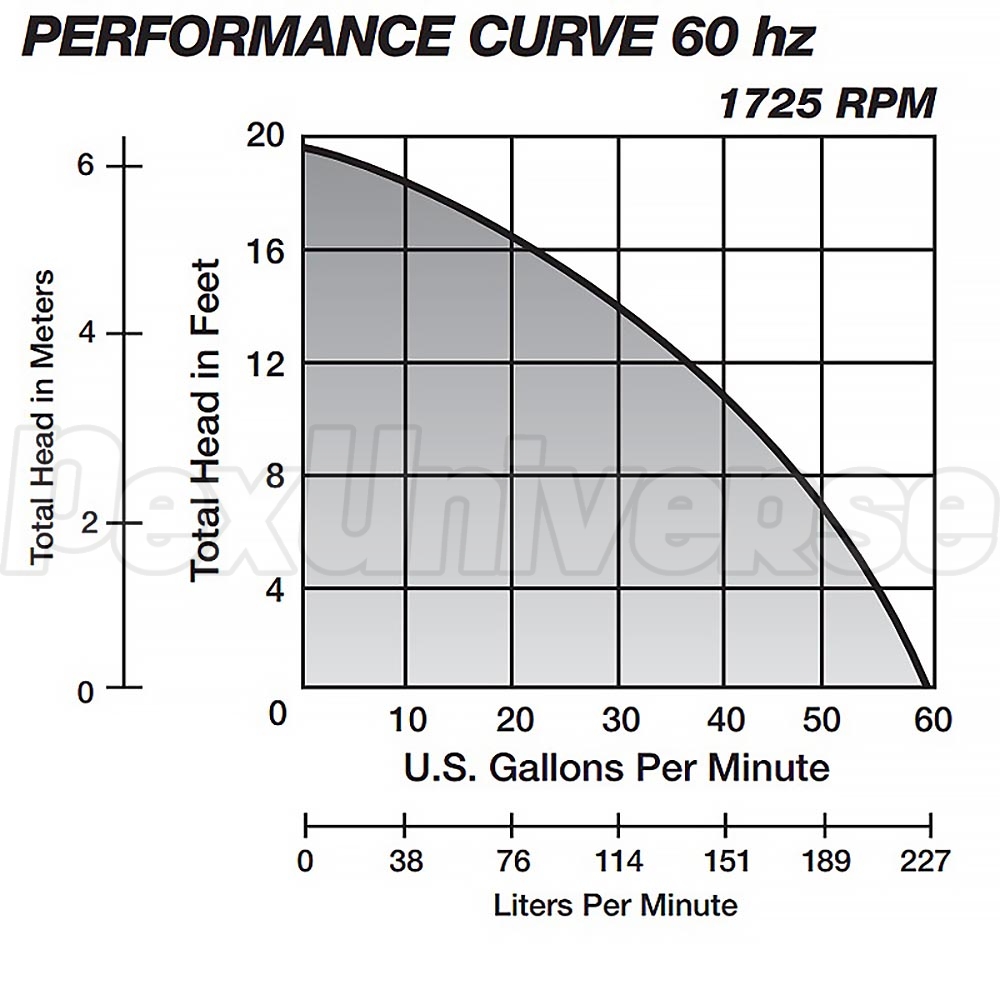

  • Shut-off Head: 19'
  • Voltage: 208-230V
  • Amps: 6.6
  • Hertz: 60 Hz
  • Phase: 1
  • Maximum fluid temperature: 140°F
  • Height: 9.6"
  • Width: 9.8"
  • Weight: 32 lbs.
  • Minimum pit/basin diameter: 14" in Sump and 18" in Effluent applications
  • Minimum pit/basin depth: 18" in Sump and 24" in Effluent applications

Warranty:
3 years manufacturer's warranty
