Automatic Effluent Pump w/ Piggyback Wide Angle Float Switch, 25' cord, 1/3 HP, 208/230V Liberty Pumps
Automatic Effluent Pump w/ Piggyback Wide Angle Float Switch, 25' cord, 1/3 HP, 208/230V
Brand: Liberty Pumps
Part#: FL32A-2
Usually ships: within 5-7 business days

Description

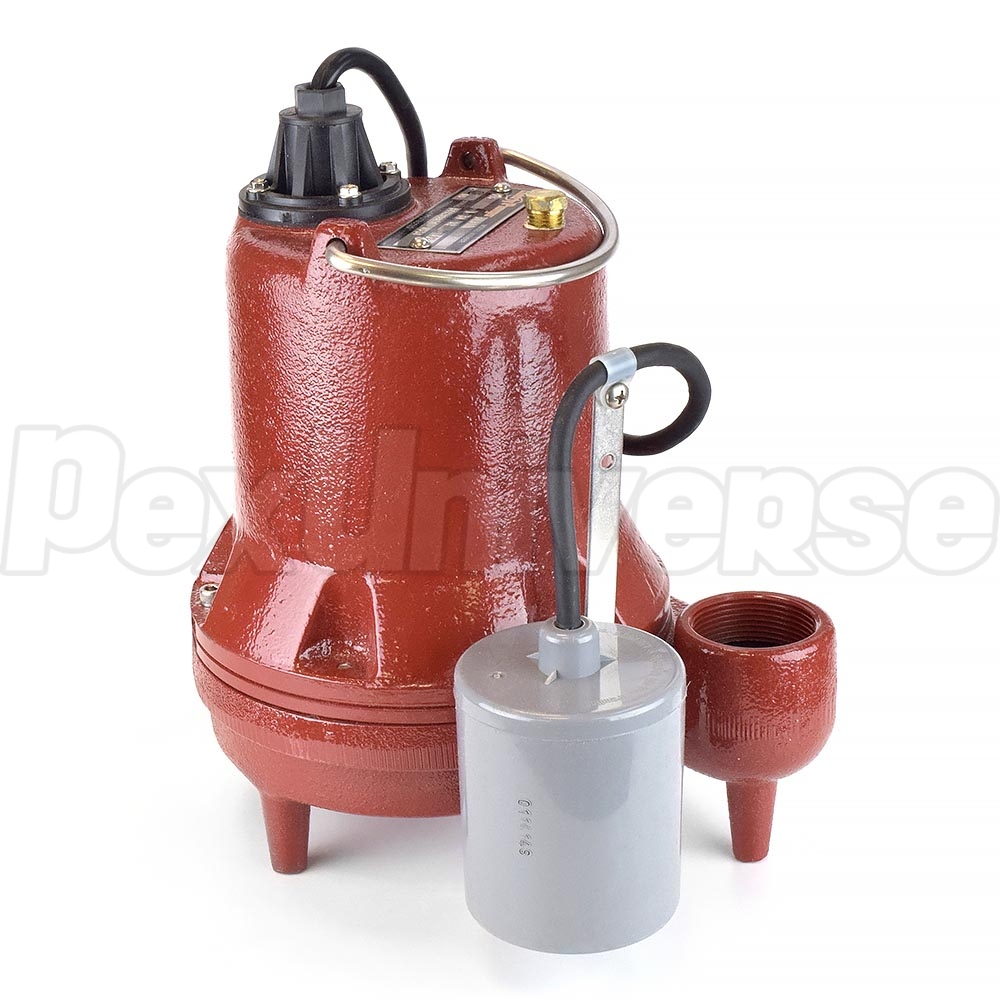

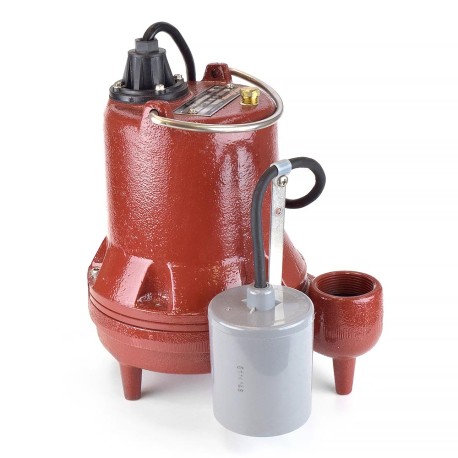

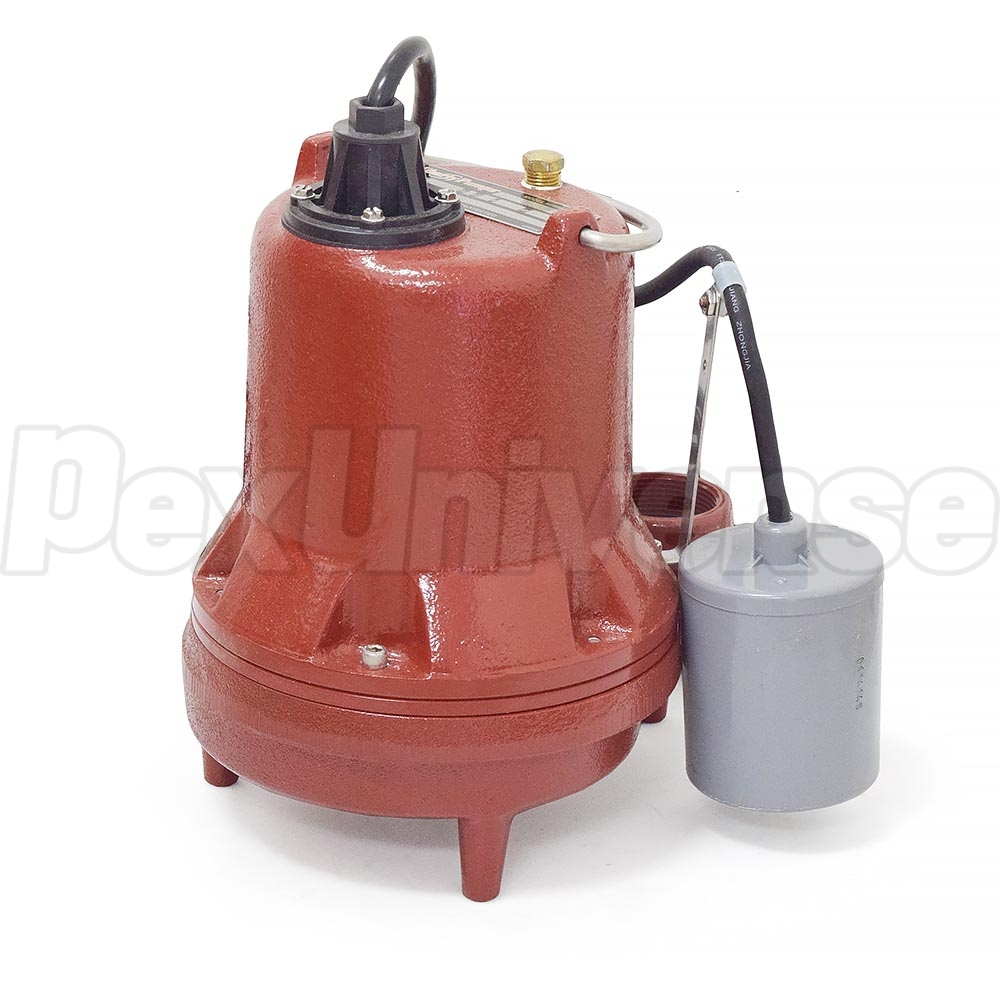

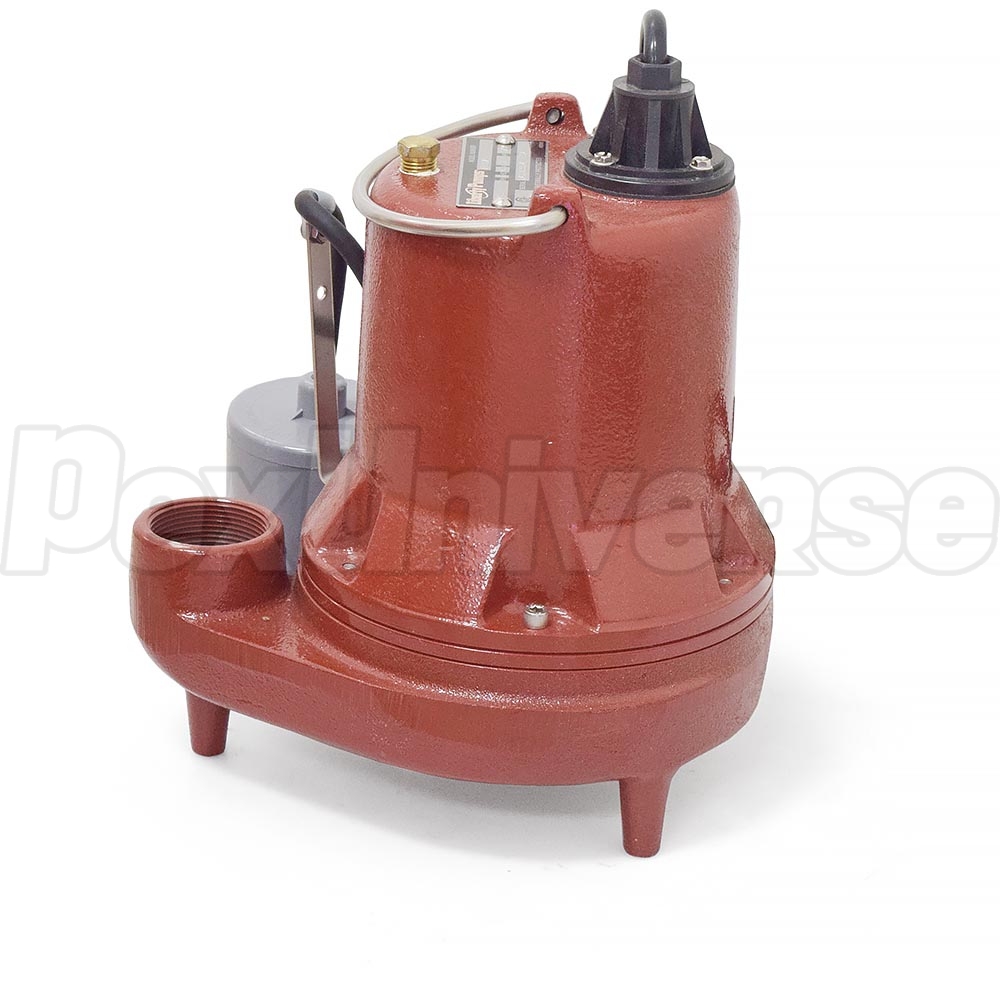

The Liberty Pump FL32A-2 is a 1/3HP, 230 V automatic submersible effluent sump pump with a high voltage capability. The Liberty FL32A has wide angle float switch equipped with a series (piggyback) plug for manual bypass operation. The Liberty FL32A-2 submersible effluent sump pump has a discharge of 1-1/2" NPT. It also has a turn-on level of 12" and shut-off level of 5". This submersible effluent/sump pump has a motor that is enclosed in a cast-iron housing and a 25' power cord. The Liberty Pump FL32A-2 features vortex style impeller made of high temperature engineering polymer, which allows for 3/4" solids handling..

The minimum pit diameter on this sump/effluent pump is 14" in sump conditions and 18" in effluent conditions. This sump/effluent pump can handle liquids up 140F and has a 19' shut off head The Liberty FL32A-2 was specifically designed for STEP Systems, LPP Systems, Mound Systems, Liquid Waste Transfer and Commercial Sump Applications. This pump should not be run dry.


Features:
  • Vortex impeller, made of high temperature engineering polymer, permits passage of solids without clogging
  • 416 stainless steel rotor shaft
  • Oil-filled, thermally protected motor
  • Unitized shaft seal
  • 1-1/2" FNPT discharge
  • Quick-disconnect 25' standard power

Technical Specifications:
  • Horsepower: 1/3 HP
  • Cord length: 25'
  • Discharge: 1-1/2" FNPT
  • Solids Handling: up to 3/4"
  • Shut-off Head: 19'
  • Voltage: 208-230V
  • Amps: 6.6
  • Hertz: 60 Hz
  • Phase: 1
  • Maximum fluid temperature: 140°F
  • Height: 9.6"
  • Width: 9.8"
  • Weight: 32 lbs.
  • Minimum pit/basin diameter: 14" in Sump and 18" in Effluent applications
  • Minimum pit/basin depth: 18" in Sump and 24" in Effluent applications

Warranty:
3 years manufacturer's warranty
