Automatic Sump Pump w/ Vertical Float Switch, 10' cord, 1/4 HP, 115V Liberty Pumps
Automatic Sump Pump w/ Vertical Float Switch, 10' cord, 1/4 HP, 115V
Brand: Liberty Pumps
Part#: 247
In Stock
Pick Up ready by {{ pickupBy }}
Usually ready: within 1 hour

Description

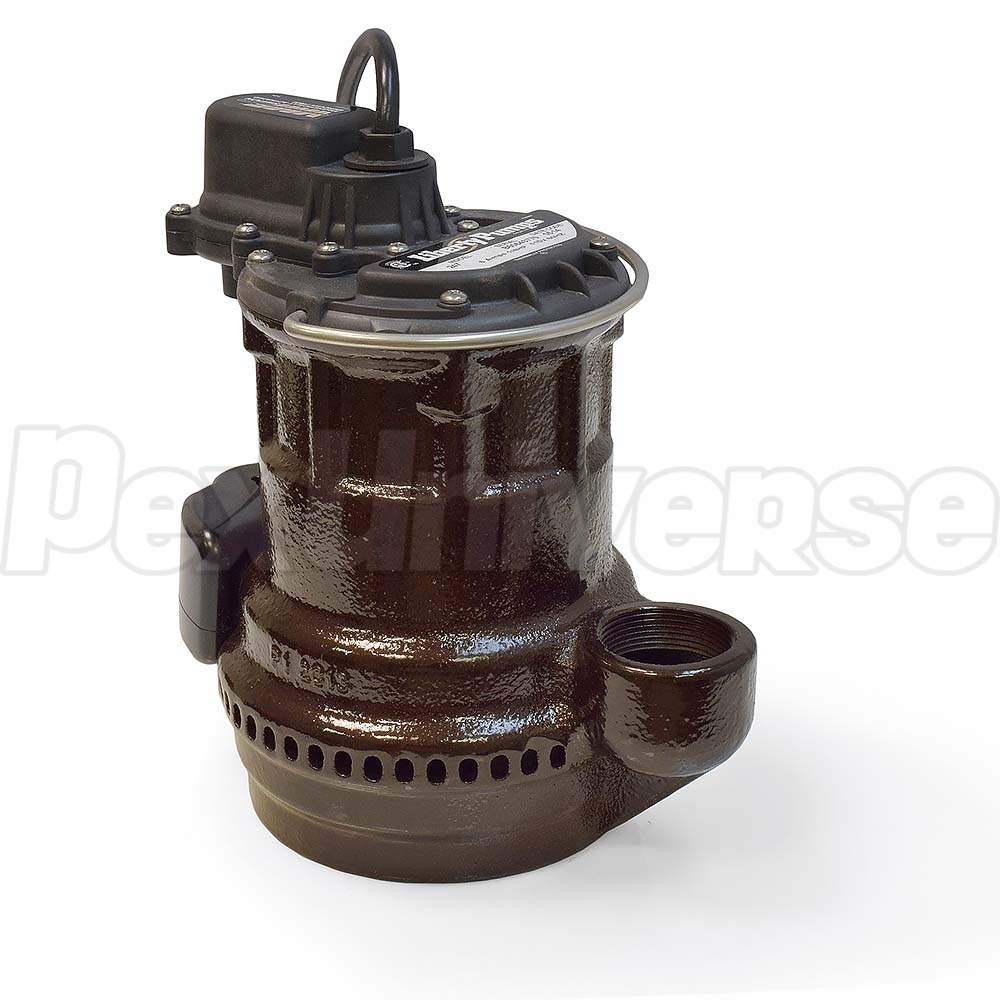

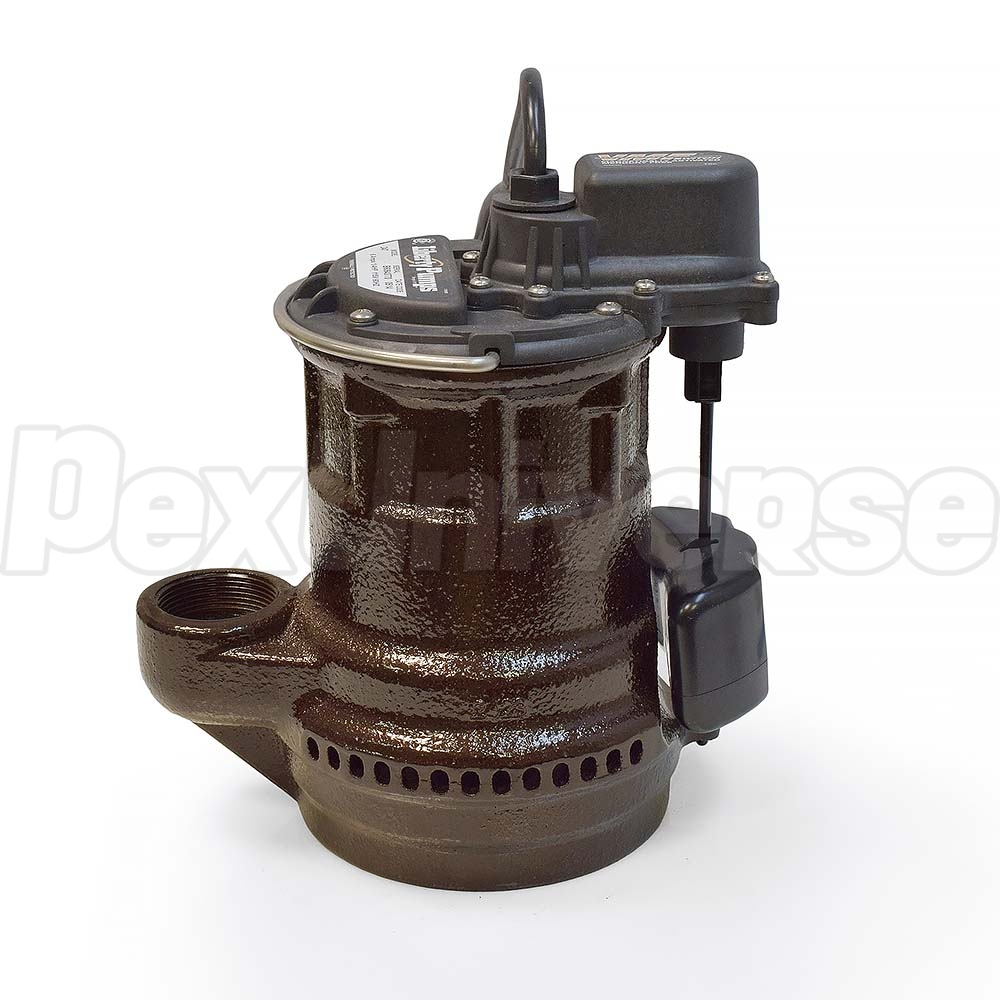

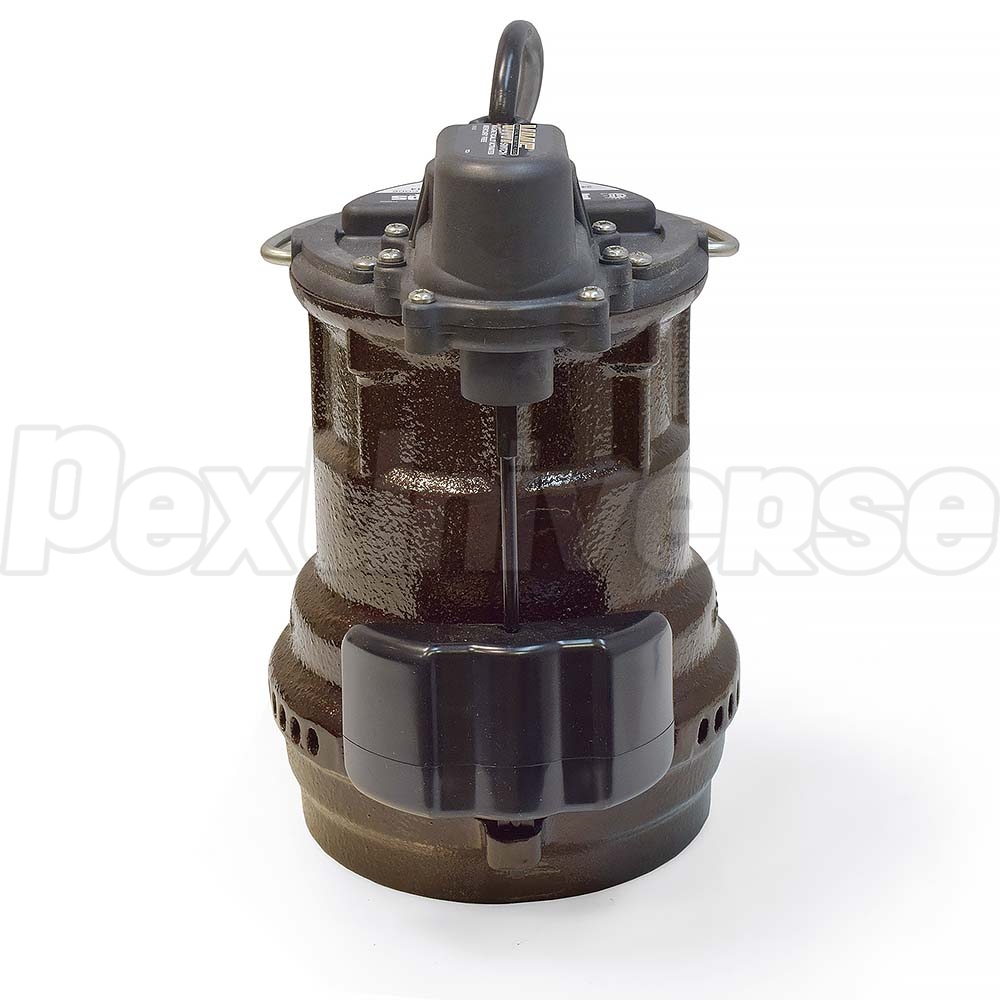

Liberty Pump 247 is 1/4HP Automatic Submersible Sump Pump with with magnetically operated vertical float VMF switch and 10ft power cord. It can operate in a smaller 10" diameter sump pit.

The Liberty Pump 247 has 1-1/2" NPT discharge, 1/4" solids-handling, 20' max. lift, a unique one-piece cast iron housing with peripheral port suction and thermally protected & permanently lubricated motor.


Features:
  • Rugged 1/4 HP motor, oil filled with thermal overload protection
  • Hermetically sealed motor and switch cavities, and permanently lubricated bearings
  • Liberty's UNI-BODY casting - a solid, one-piece housing that eliminates the lower motor seal ring found on other pumps
  • Integral, mid-mounted "peripheral-port" inlets - eliminate bottom suction of debris and foreign material
  • Stainless steel volute intake plate, internally mounted. Will not corrode
  • 8 vane, glass reinforced thermoplastic impeller, Non-clog design

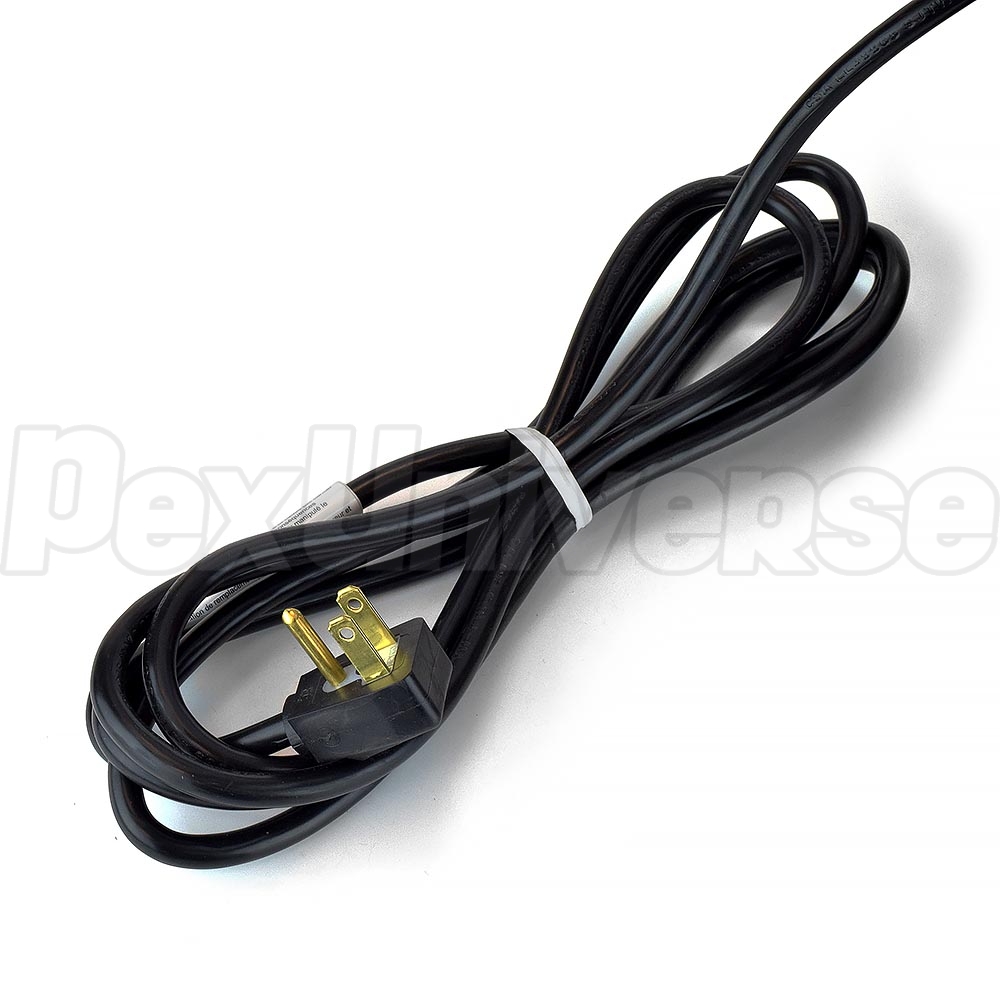

  • Quick-disconnect 10' standard power cord allows replacement of cord in seconds without breaking seals to motor
  • Fasteners - all non-corrosive stainless steel
  • Stainless steel rotor shaft

Technical Specifications:
  • Horsepower: 1/4 HP
  • Cord length: 10'
  • Discharge: 1-1/2"
  • Solids Handling: up to 1/4"
  • Voltage: 115V
  • Amps: 6.0
  • RPM: 3400
  • Hertz: 60 Hz
  • Maximum fluid temperature: 140°F

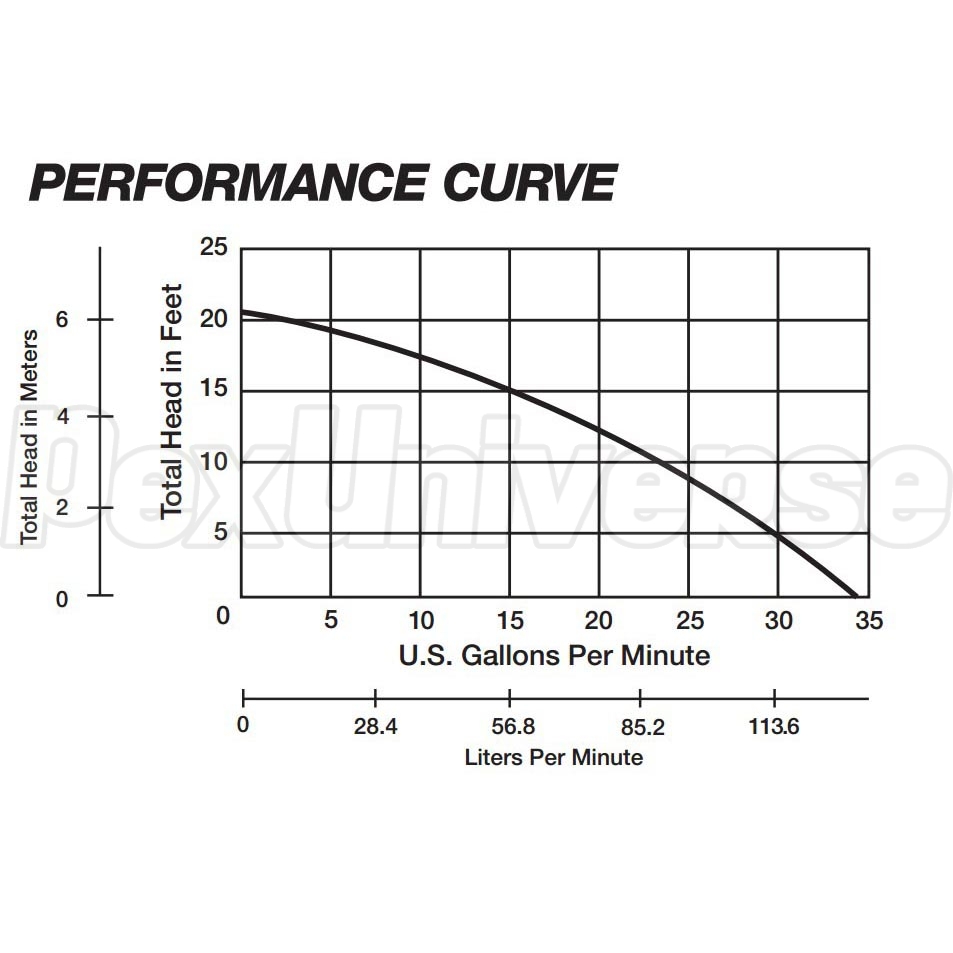

  • Maximum lift: 20'
  • Height: 10"
  • Width: 9"
  • Weight: 21 lbs.

Warranty:
3 years manufacturer's warranty
