Manual Sump Pump, 10' cord, 1/4 HP, 115V Liberty Pumps
Manual Sump Pump, 10' cord, 1/4 HP, 115V
Brand: Liberty Pumps
Part#: 240
This product has been discontinued. No direct replacement is available at this time.

Description

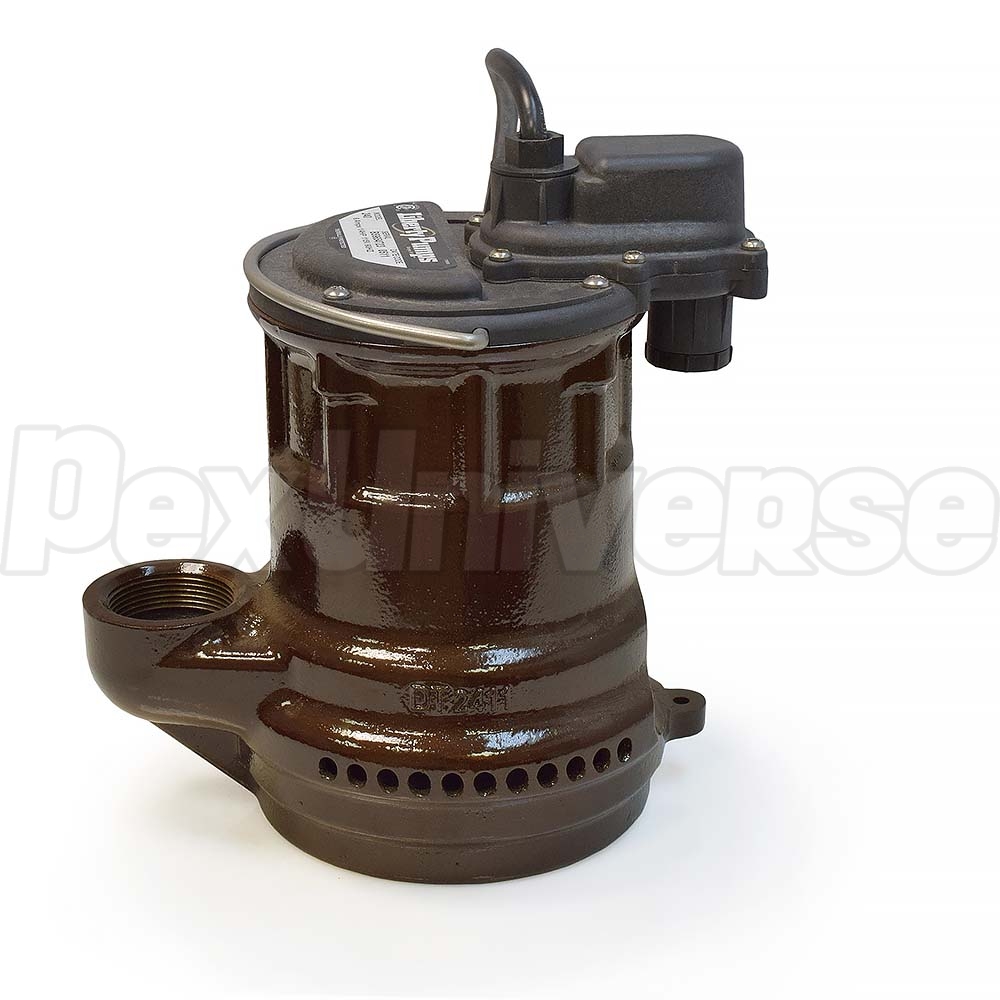

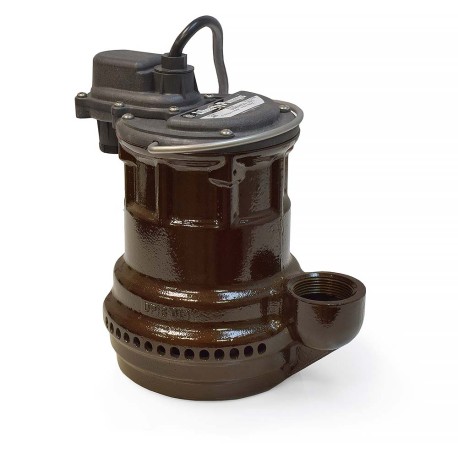

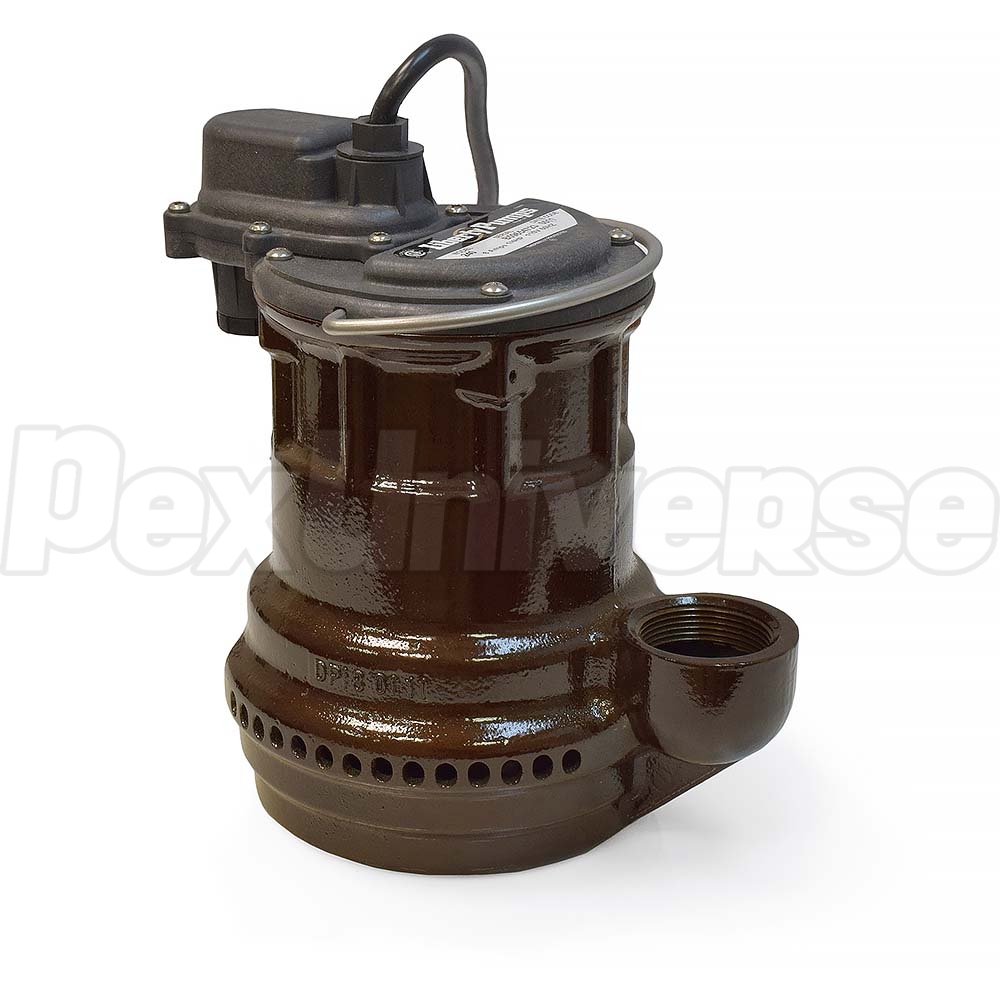

Liberty Pump 240 is 1/4HP Manual Submersible Sump Pump with 10ft quick-disconnect power cord. This Liberty Pump features a unique one-piece cast iron housing with peripheral port suction and thermally protected & permanently lubricated motor.

Liberty Pump 240 has 1-1/2" NPT discharge, 1/4" solids-handling and 20' max. lift. This manual (switchless) pump may be operated by directly plugging into an approved electrical outlet. To prevent excessive seal wear and overheating, pumps should not be run dry for extended periods of time. A minimum 4-1/2" water level is recommended. If manual models are to be used with an optional control device, follow the instructions provided with that control and make power connections per those instructions. Set the turn-off level at 4-1/2" or greater.


Features:
  • Rugged 1/4 HP motor, oil filled with thermal overload protection
  • Hermetically sealed motor and permanently lubricated bearings
  • Liberty's UNI-BODY casting - a solid, one-piece housing that eliminates the lower motor seal ring found on other pumps
  • Integral, mid-mounted "peripheral-port" inlets - eliminate bottom suction of debris and foreign material
  • Stainless steel volute intake plate, internally mounted. Will not corrode
  • 8 vane, glass reinforced thermoplastic impeller, Non-clog design

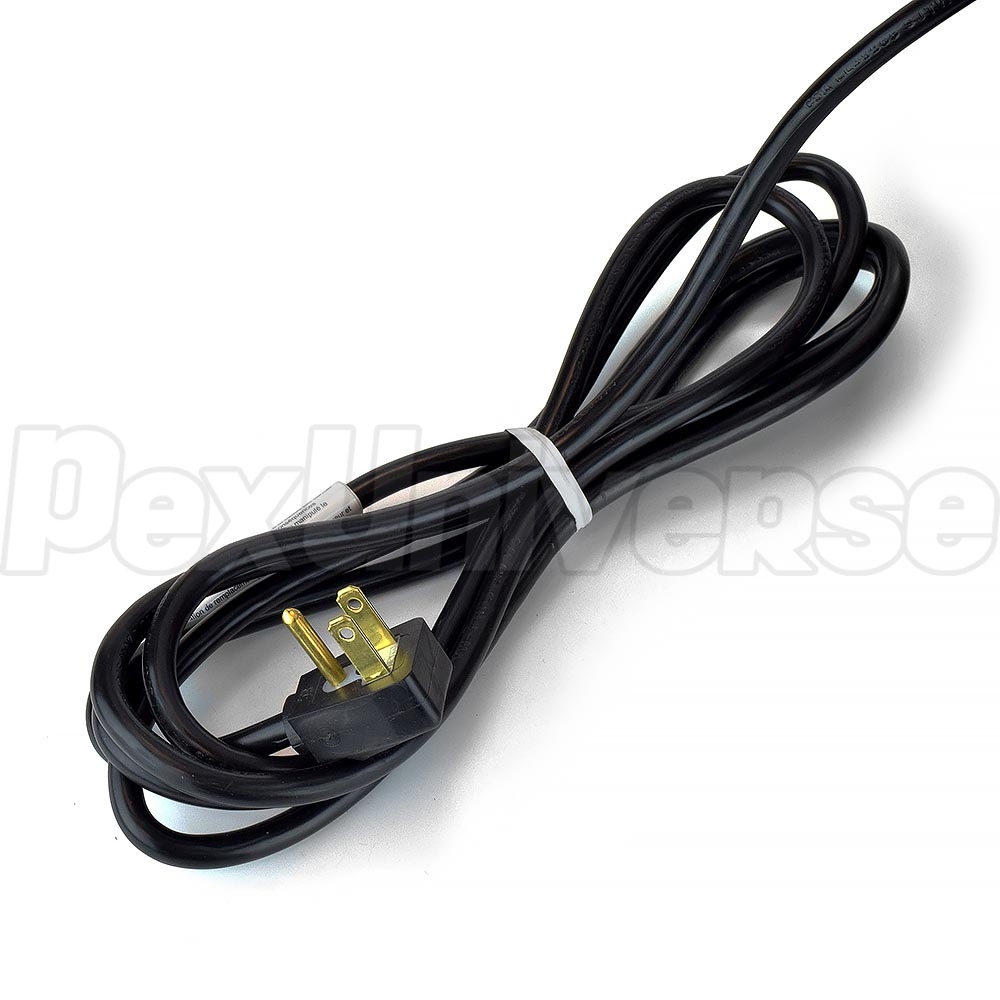

  • Quick-disconnect 10' standard power cord allows replacement of cord in seconds without breaking seals to motor
  • Fasteners - all non-corrosive stainless steel
  • Stainless steel rotor shaft

Technical Specifications:
  • Horsepower: 1/4 HP
  • Cord length: 10'
  • Discharge: 1-1/2"
  • Solids Handling: up to 1/4"
  • Voltage: 115V
  • Amps: 6.0
  • RPM: 3400
  • Hertz: 60 Hz
  • Maximum fluid temperature: 140°F
  • Maximum lift: 20'
  • Height: 10"
  • Width: 9"
  • Weight: 21 lbs.

Warranty:
3 years manufacturer's warranty
