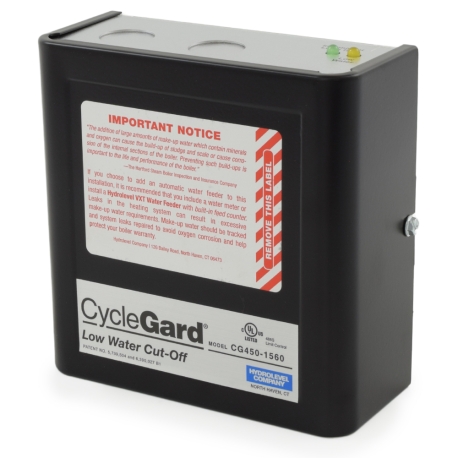

CycleGard CG450-1560, Steam Primary Low Water Cut-Off w/ Auto Reset, 120V Hydrolevel
CycleGard CG450-1560, Steam Primary Low Water Cut-Off w/ Auto Reset, 120V
Brand: Hydrolevel
Part#: 45-460-1560
Model: CG450-1560
made in usa
In Stock
Pick Up ready by {{ pickupBy }}
Usually ready: within 1 hour

Description

Hydrolevel CycleGard 450-1560 is a 120V low water cut-off w/ auto reset and intermittent level test (ILT), designed for use as a primary LWCO control on steam boilers (mostly oil-fired). Burner circuit contacts open after 15 second delay in a low water condition. Delay prevents short cycling caused by momentary fluctuations in the boiler water level. Automatically restarts burner circuit 30 seconds after water reaches the probe, allowing optional water feeder to raise water level above the probe. ILT removes power from the burner circuit and monitors settled (true) water level every 15 minutes (interval) for 60 seconds (duration) for added protection.

Cross-References:
  • McDonnell & Miller: PS-801-120, PSE-801-120, PS-800-120
  • Taco: LFA120
  • Honeywell: RW700A1080

Features:
  • Intermittent Level Test (ILT) for maximum protection of foaming boilers
  • Suitable for residential and commercial steam boilers (mostly oil-fired)
  • Optional water feeder connections
  • 15-second off-time burner shut down delay prevents short-cycling due to surging and priming
  • 30-second on-time delay allows to fill water above probe to a safe level
  • Intermittent Level Test feature monitors settled water every 15 minutes for 60 seconds to protect from false signals caused by foam
  • Optional SmartCycle feature restarts ILT sequence every time the burner fires
  • Front access cover, electrical knock-outs and a pigtail lead for easy wiring
  • LED indicators for ILT and low water
  • Direct boiler mounting - no blowdown or moving parts
  • Solid state circuitry for top-level performance and reliability

Technical Specifications:
  • System Type: Steam Boilers
  • Reset: Automatic
  • Connection: 3/4" NPT
  • Electrical Specs: 120V, 60 Hz, 4.2 VA (Power Consumption); SPDT (Relay Type), NEMA 1 Enclosure
  • Switching Capacity: 5.8 FLA, 34.8 LRA
  • Max Steam Pressure: 15 psi
