Safgard 1150, Low Water Cut-Off w/ Auto Reset & Test Button, Gas or Oil, 120V
Brand: Hydrolevel
Part#: 45-1150
Model: Safgard 1150
made in usa
In Stock
Ship Pickup
Estimate delivery
Usually ships: within 1 business day
Pick Up available
$94.95 / each
$367.80 box of 4 + Free Shipping
($91.95 each)
Add to Cart
Orders over $99 ship free

Description

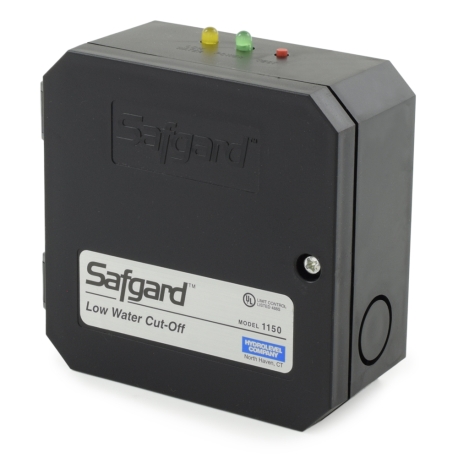

Hydrolevel Safgard 1150 is a compact 120V low water cut-off (LWCO) w/ auto reset, designed to immediately interrupt power in a low water condition. Automatically restarts burner when water level return to normal. Features a test button for checking control functionality without lowering the water level or removing the probe.

Cross-References:
  • McDonnell & Miller: RB-122
  • Taco: LTA120

Features:
  • Hinged front access cover, electrical knock-outs at the bottom and pigtail leads for easy wiring
  • Test button for easy diagnostics without lowering the water level or removing the probe
  • Suitable for gas and oil-fired hot water boilers
  • Auto reset mode
  • Power, low water, and service-needed LED indicators
  • Compact size and heavy-duty construction
  • Can be installed directly into the boiler's LWCO tapping or standard 3/4" tee (for boiler supply/return pipe mounting)

Technical Specifications:
  • System Type: Hot Water Gas or Oil Boilers
  • Reset: Automatic
  • Connection: 3/4" NPT
  • Electrical Specs: 120V, 60 Hz, 4 VA (Power Consumption); 20 A (Max Load), SPST (Relay Type), NEMA 1 Enclosure
  • Burner Contacts: 5.8 FLA, 34.8 LRA; 125 VA Pilot Duty @ 120 VAC
  • Max Pressure: 160 psi
  • Max Water Temperature: 250°F
