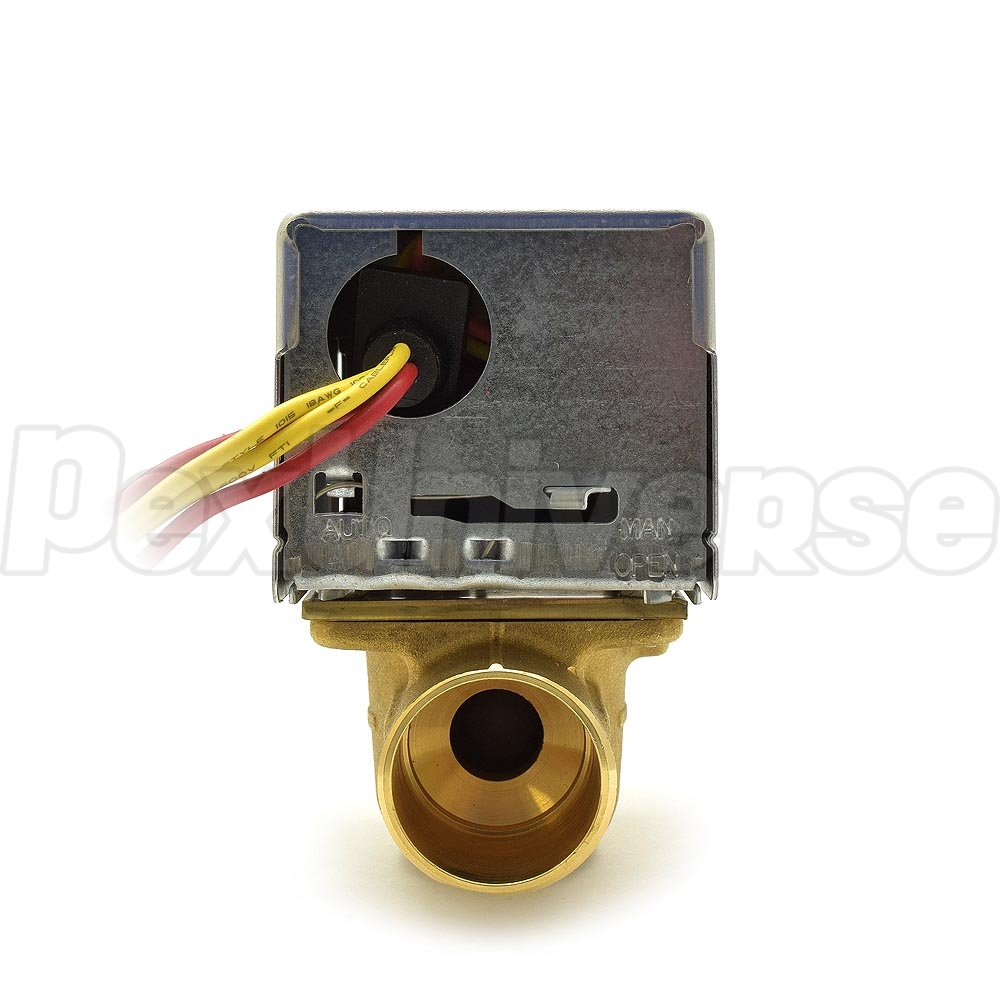

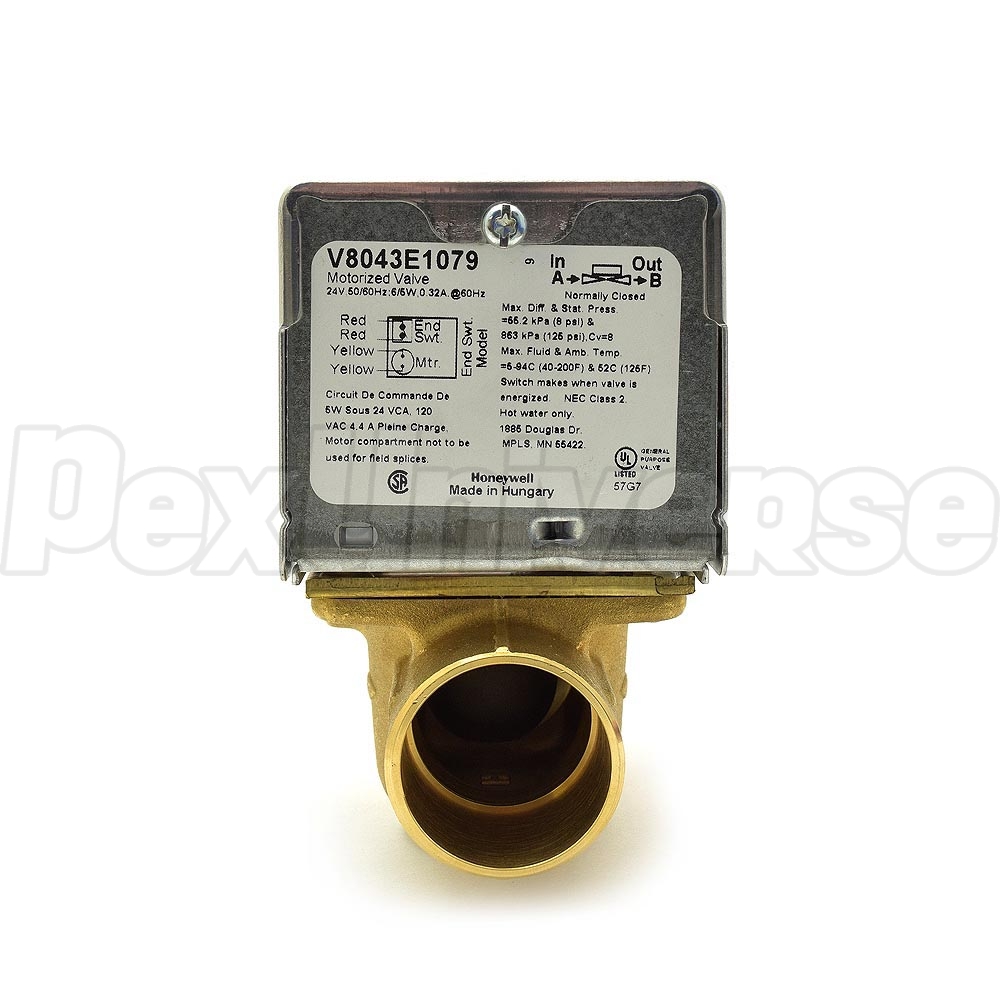

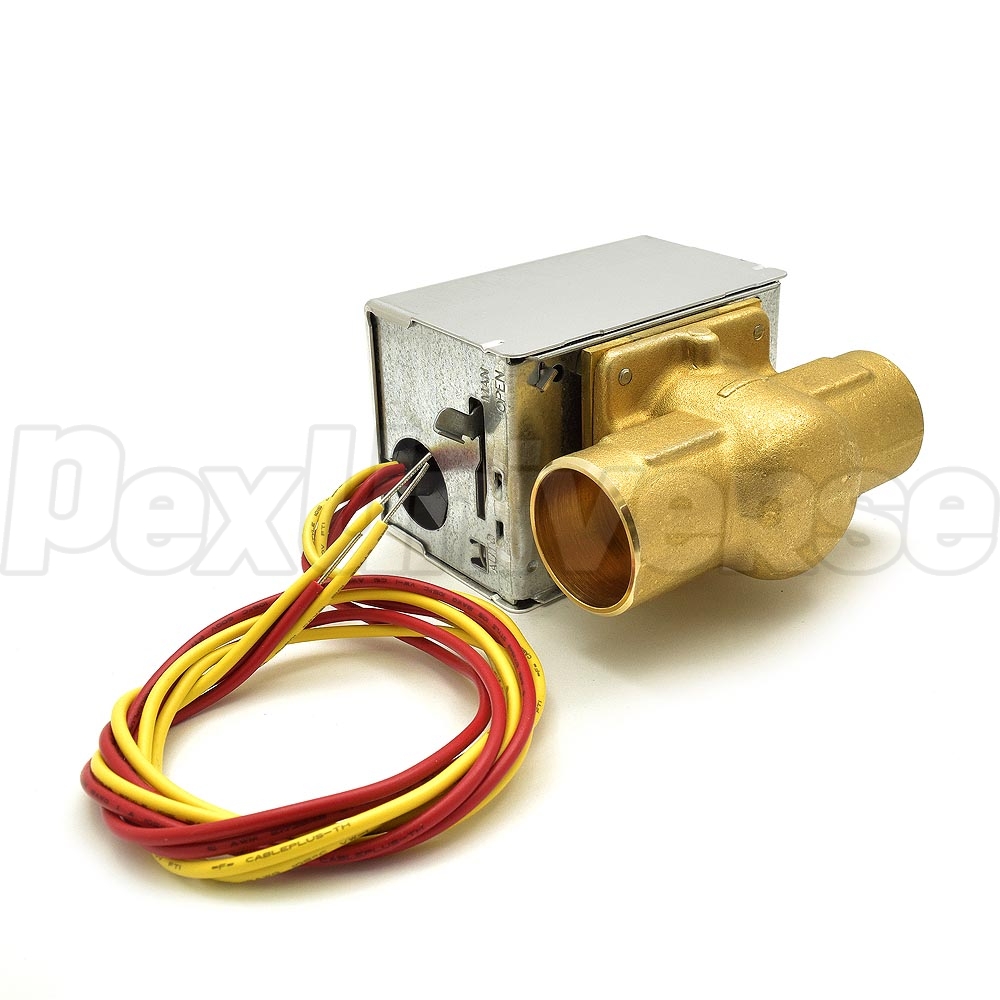

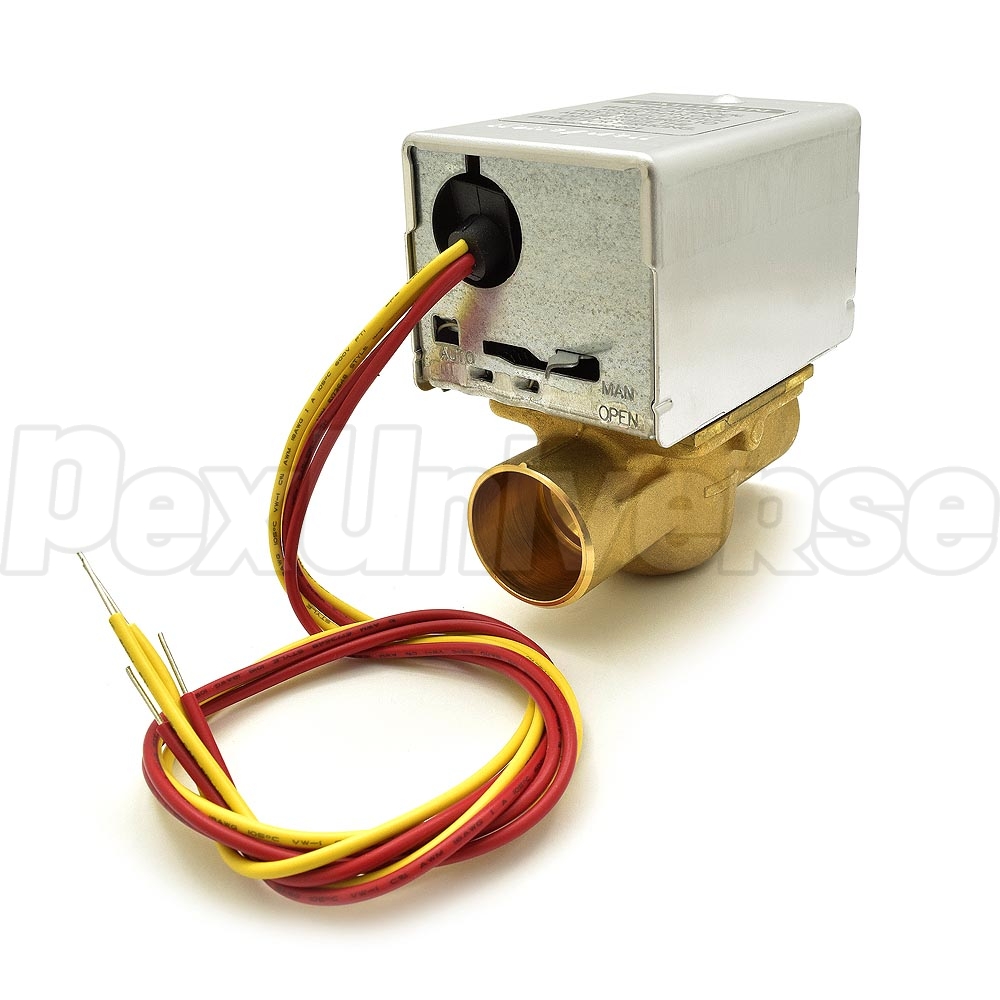

1" Sweat Zone Valve w/ End Switch, 18" leads
Brand: Honeywell
Part#: V8043E1079
In Stock
Ship Pickup
Estimate delivery
Usually ships: within 1 business day
Pick Up available
$125.53 / each
$665.70 box of 6
($110.95 each)
Free Shipping on any qty
See price in cart

Description

Two-way on-off low voltage valves consist of an actuator and valve assembly for controlling the flow of hot water.


Features:
  • All models may be installed without disassembling the valve
  • Compact construction for easy installation
  • Complete powerhead may be removed or replaced without breaking plumbing line connections or draining the system
  • Motor may be replaced without removing the valve body or draining the system
  • Suitable for heating and cooling applications.

Technical Specifications:
  • Application: Hydronic Control
  • Dimensions (Height x Width x Depth): 4" x 3 11/16" x 2 3/8" (102mm x 94mm x 60mm)
  • Comments: Use this valve in closed loop hydronic systems that do not contain dissolved oxygen in system water, such as fresh water from frequent source of makeup water
  • Valve designed for cycling (not constantly powered on) applications.
  • Frequency: 50 Hz, 60 Hz
  • Approvals: UL Listed
  • Operating Humidity Range (% RH): 5 to 95% relative humidity, non-condensing
  • Voltage: 24 Vac, Power Consumption - 7.7 VA
  • Timing: Nominal Open - 15 sec
  • Maximum Ambient Temperature: 125°F (52°C)
  • Connection Type: Sweat
  • Pipe Size (inch): 1" (DN25)
  • Body Pattern: Two-way, Straight-through
  • Current Draw: 0.32 A
  • Fluid Temperature: 50°F to 200°F (10°C to 90°C)
  • Maximum Differential Pressure Ratings (Close-off): 8 psi (55 kPa)
  • Electrical Connections: 18" (457mm) leads
  • Capacity: 8 Cv (6.9 Kv)
  • Valve Action: Spring Return to Close
  • Materials: Body - Brass, Seat - Brass, Stem - Stainless Steel
  • Materials (Plug/Ball/Disc): Buna-N (NBR) Rubber Ball
  • Materials (Packing): EPDM rubber
  • Actuation: Two position
  • De-energized Position: Normally Closed
  • Static Pressure Rating: 125 psi (862 kPa)
  • Manual Opener: Yes
  • End Switch Rating: 50VA pilot duty @ 24V, 4.4A running with 26.4A inrush @ 120V
  • Auxiliary End Switch: N.O. SPST.
