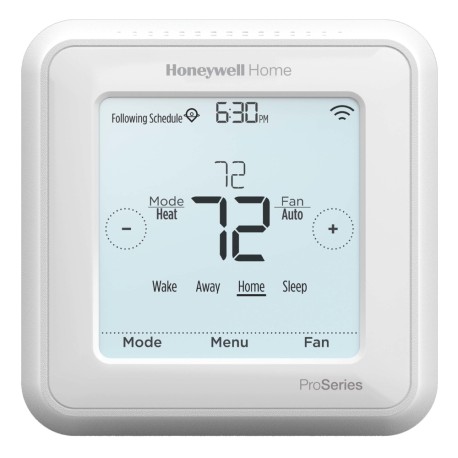

Honeywell/Resideo TH6220WF2006 is a programmable, Wi-Fi enabled touchscreen thermostat designed for up to 2-stage heating / 2-stage cooling conventional or 3-stage heating and 2-stage cooling heat pump system w/ optional emergency heat. This model is a higher-end thermostat packed with features, including remote access and control via Honeywell Home app, Geofencing, ventilation control, smart reminders (filter change, etc.), optional auto changeover, early start & keypad lockout plus many others.
Features:
- Wi-Fi enabled (can be turned on/off), designed for use with Honeywell Home app (change temperature, mode, schedule, etc.)
- Large, illuminated, touchscreen display with adjustable idle brightness
- Displays time, mode, wi-fi status, ambient and setpoint temperature at the same time
- Supports Apple HomeKit
- Multiple programmability modes: 1-Day, 5+2-Day, 7-Day, Geofencing controlled or non-programmable
- Ventilation control
- Indoor & outdoor sensor compatible
- Equipment status and air filter change notifications
- Temporary or permanent temperature override
- Vacation hold mode
- Built-in compressor protection
- Keypad lockout
- Adaptive Intelligent Recovery (optional setting) is an improved version or Early Start - the system optimizes start time to reach desired temperature by programmed time settings
- Fahrenheit (F) or Celsius (C) display mode
- Programmability: Programmable, 1 Day (each day of the week is the same), 5-2 Day (weekdays+weekend), 7-Day, Non-Programmable, Geofencing
- Stages: 2 Heat / 2 Cool Conventional or 3 Heat / 2 Cool Heat Pump - dual fuel and aux heat lockout with outdoor sensor or Internet weather. Ventilation control with ERV/HRV or fresh air damper.
- Fan Settings: Auto, On, Circ
- Changeover: Auto or Manual
- Interface: Touchscreen
- Display: Monochrome
- Display Size: 6.89 sq in.
- Mounting: Square
- Color: White
- Electrical Ratings: 24V (20-30 Vac, 0.02-0.50A or 0.02-1.00A - varies by terminal)
- Power Method: Hardwired Only (C-wire)
- Terminal Designations: R, Rc, C, W, W2-AUX, Y, Y2, G, L, K, U, U, S, and S
- Dual Fuel: Yes
- Setting Temperature Range: Heat 40°F - 90°F / Cool 50°F - 99°F
- Ambient conditions: 37 to 102°F, 5 to 90% RH, non-condensing
- Connection Protocol: Wi-Fi
- Dimensions (Height x Width x Depth): 4.1" x 4.1" x 1.1" (103.6mm x 103.6mm x 28mm)
- Packaged Weight: 12.8 oz
5-year warranty
