T6 Pro Programmable Thermostat, 2H/2C Conventional or 3H/2C Heat Pump + Aux. Heat Honeywell
T6 Pro Programmable Thermostat, 2H/2C Conventional or 3H/2C Heat Pump + Aux. Heat
Brand: Honeywell
Part#: TH6320U2008
In Stock
Pick Up ready by {{ pickupBy }}
Usually ready: within 1 hour

Description

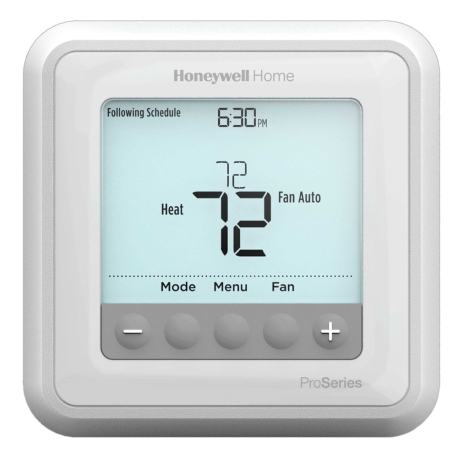

Honeywell/Resideo TH6320U2008 is a programmable digital thermostat designed for up to 2-stage heat/2-stage cool conventional or 3-stage heat/2-stage cool heat pump systems (with aux heat). T6 Pro sports a large backlit display w/ adjustable idle brightness, choice of multiple programmability modes, keypad lockout and selectable automatic or manual changeover. This thermostat is a great mid-range model for those who want all the conveniences offered by a programmable thermostat (plus optional in-depth settings adjustment & indoor/outdoor sensor compatibility) but without the Wi/Fi internet access set-up or app installation.

Features:
  • Large, illuminated, easy to read display w/ adjustable idle brightness
  • Multiple programmability modes: 5+2 / 5+1+1 or 7-Day, as well as non-programmable
  • Pre-set program settings, can be temporary/permanently overridden
  • Adaptive Intelligent Recovery (optional setting) is an improved version or Early Start - the system optimizes start time to reach desired temperature by programmed time settings
  • Indoor & outdoor sensor compatible
  • Displays time, mode, ambient and setpoint temperature at the same time
  • Keypad lockout
  • Air filter change service reminders
  • Fahrenheit (F) or Celsius (C) display mode
  • Positive "Off" mode
  • Low battery warning indicator
  • 1°F temperature accuracy
  • Built-in compressor protection

Technical Specifications:
  • Programmability: Programmable, 5-2 Day, 5-1-1 Day, 7-Day, Non-Programmable
  • Stages: 2 Heat / 2 Cool Conventional or 3 Heat / 2 Cool Heat Pump - dual fuel and aux heat lockout with outdoor sensor
  • Fan Settings: Auto, On, Circ
  • Changeover: Auto or Manual
  • Interface: Button
  • Display: Monochrome
  • Display Size: 5.44 sq in.
  • Mounting: Square
  • Color: White
  • Electrical Ratings: 24V (20-30 Vac, 0.02-0.50A or 0.02-1.00A - varies by terminal)
  • Power Method: Battery Only (2 x AA), Hardwired Only (terminals R & C) or Harwired with Battery Backup (terminals R + optional C)
  • Terminal Designations: : R, RC, C, W, O/B, W2-AUX, E, Y, Y2, G, L/A, K, S, and S
  • Dual Fuel: Yes
  • Setting Temperature Range: Heat 40°F - 90°F / Cool 50°F - 99°F
  • Ambient conditions: 37 to 102°F, 5 to 90% RH, non-condensing
  • Dimensions (Height x Width x Depth): 4.1" x 4.1" x 1.1" (103.6mm x 103.6mm x 28mm)
  • Packaged Weight: 13.5 oz

Warranty:
5-year warranty
