Protectorelay Oil Burner Control, Intermittent Honeywell
Protectorelay Oil Burner Control, Intermittent
Brand: Honeywell
Part#: R8184G4009
This product has been discontinued. No direct replacement is available at this time.

Description

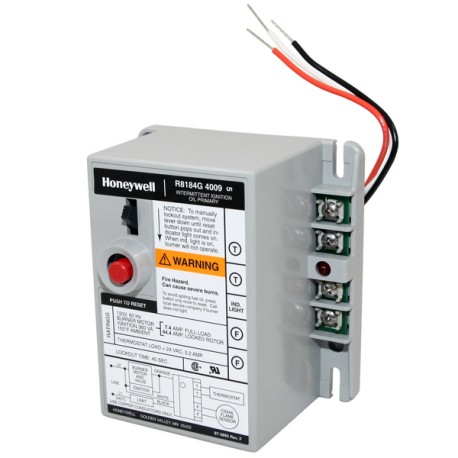

Honeywell Protectorelay Oil Burner Control (sku# R8184G4009) with 45 seconds lock out timing provides automatic, nonrecycling control of an intermittent ignition oil burner system. Honeywell R8184G4009 Controls oil burner, oil valve (if desired) and the ignition transformer in response to a call for heat;

Features:
  • Solid state flame sensing circuit
  • LED on terminal strip indicates system lockout
  • Remote lockout indication available on some models
  • Enclosed safety switch with external reset button
  • Manual trip lever opens safety switch for system maintenance
  • Mounts on standard 4 x 4" junction box
  • select models may be mounted directly on burner housing
  • C554A Cadmium Sulfide Flame Detector and 24 Vac thermostat required

Technical Specifications:
  • Cooling Contactor Power: N/A
  • Ignition Type: Intermittent
  • Timing, Safety Switch: 45 sec.
  • Mounting Bracket: For mounting on a standard 4" X 4" junction box or direct mounting on burner housing
  • Electrical Rating
  • Contacts (full load): 7.4 A @ 120 Vac
  • 3.7 a @ 240 Vac
  • Electrical Rating
  • Contacts (locked rotor): 44.4 A @ 120 Vac
  • 22.2 A @ 240 Vac
  • Alarm Load Ratings (pilot duty): 75 VA @ 120/240 Vac, 50-60 Hz
  • 25 VA @ 24V, 50-60 Hz
  • Alarm Load Ratings (resistive): 1.5 A @ 120/240V, 50-60Hz
  • 3 A @ 24 V, 50-60 Hz
  • Dimensions: 4-3/8" high x 4-1/8" wide x 2-1/2" deep
  • Temperature Range: -40F to +130F
  • Approvals, Underwriters Laboratories Inc: UL Component Recognized
  • File no. MP268, Vol. 35 Sec. 1,3
  • Approvals, Canadian Standards Association: CSA Certified
  • File no. LR95329-1
  • Comments: With LED for lockout indication, and manual trip lever on safety switch to assure burner shutdown during servicing
  • Tradeline Value: Tradeline
