Note: product title indicates boiler's Net AHRI (Net IBR) rating

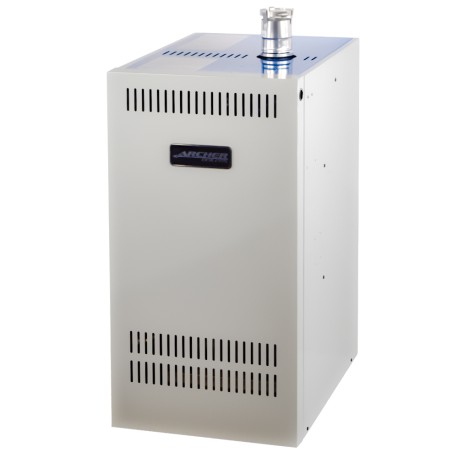

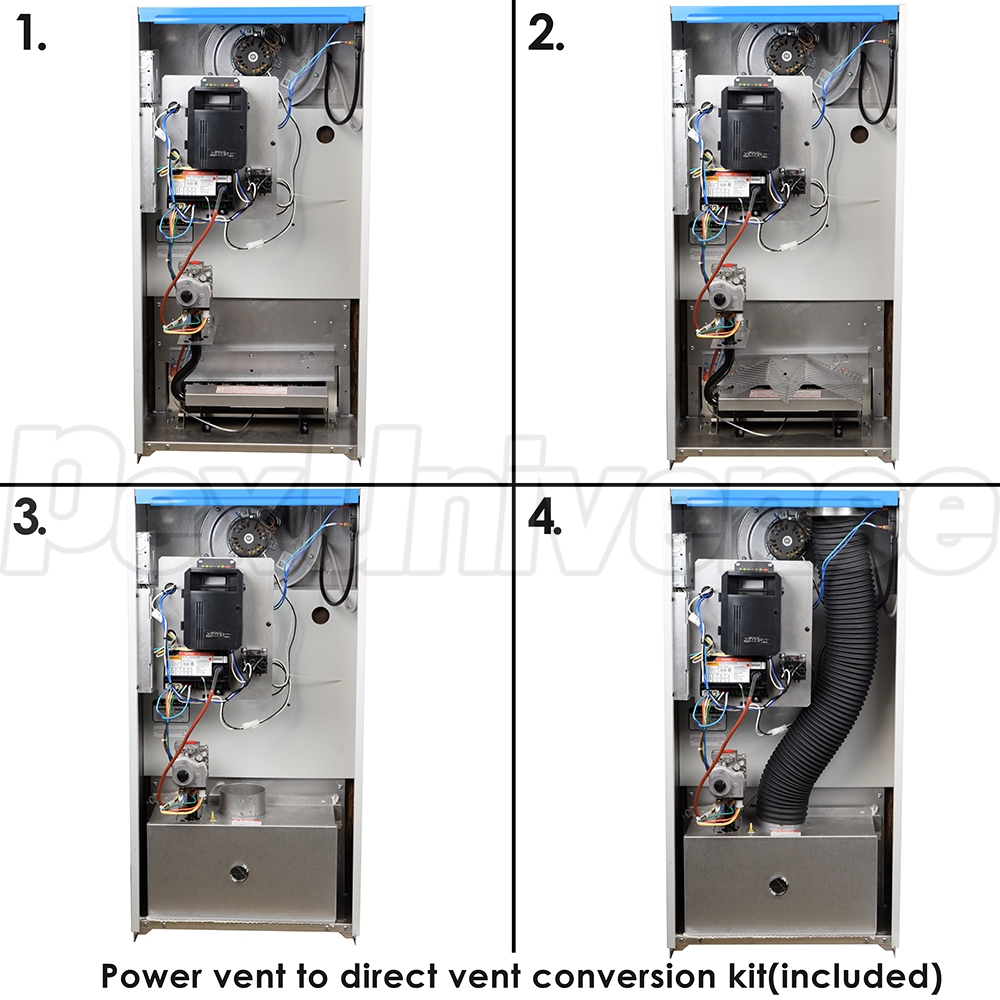

Highlander series boiler is a fan-assisted (Power Vent) type cast iron boiler, which can also be converted to Direct Vent (sealed combustion) using included kit (see product pictures) - no chimney required.
Fan-forced design allows for up to 50ft of vertical or horizontal vent length (using 4" pipe, or up to 15ft - using 3" pipe - see manual for details) and utilizes Cat. III (AL29-4C) vent.
Highlander is a cost-attractive, quality boiler with USA-made heat-exchanger and industry-leading, familiar controls (concealed behind easy-access front panel) and is ideally suited for both new installations and renovations where chimney venting is impractical or not possible.
Boiler includes: Direct Vent Installation Kit (optional installation, room combustion air setup also acceptable), Vent Adapter, HydroStat 3200 Control, Honeywell Step-Opening Redundant Gas Valve, Taco 007e Circulator w/ Flanges, Spark Ignition w/ Continuous Retry, Drain Valve, Pressure Relief Valve (Watts or Apollo brand), Temperature & Pressure Gauge and Manifold.
Cross-References:
- Burnham: X-PV7N
- Crown/Velocity: BWF210BN
- Dunkirk: XEB-7
- Laars: JVH-225
- Lennox: GWB84-225IE, GWB8-225IE-2
- New Yorker: PVCG70CN
- Pennco: FSB-7
- Slant/Fin: VSPH-180
- Utica: SVB-7, UHSW225
- Weil-McLain: CGi-7
- Includes parts for Direct Vent (sealed combustion using outdoor air) or Power Vent (using indoor combustion air) installation - no chimney needed
- Premium-level controls: Honeywell/Resideo S8610 & Hydrolevel HydroStat 3200
- Honeywell/Resideo gas valve
- Taco 007e high efficiency ECM circulator included (with flanges)
- Stainless steel precision burners
- Powder coated steel jacket with heavy-gauge, 1" base insulation
- Assembled in Pennsylvania with USA-made components, including robust, time-tested and efficient cast iron heat exchanger with metal section connections for increased boiler life
- Input (BTU): 210,000
- Net AHRI Rating (BTU): 156,000
- DOE Heating Capacity (BTU): 179,000
- Efficiency (AFUE): 85%
- Fuel Type: Natural Gas
- Boiler/System Type: Hot Water (Hydronic) Cast Iron Gas Boiler
- Boiler Connections: 1-1/4" NPT - Supply/Return Connections, 3/4" NPT - Relief Valve, 3/4" NPT - Drain, 3/4" NPT - Gas
- Pressure Specs: 30 psi relief valve setting, 50 psi max. allowed working pressure
- Vent Type: Direct Vent (sealed combustion using outdoor air) or Power Vent (using indoor air for combustion) - includes hardware/functionality for using either option
- Vent Pipe Size: 3" (Cat III, AL29-4C vent pipe - any brand)
- Internal Water Volume: 6 Gallons
- Dimensions: 24-3/4" Wide x 27" Deep x 38" High
- Weight: 470 lbs (approx shipping weight)
